B20 B30 Ceramic Beads Blasting Media B40 B60 For Glass-Bottle Molds Surface Cleaning
Product Details:
| Place of Origin: | China |
| Brand Name: | ZHENGTONG |
| Certification: | SGS,ROHS |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100kgs |
|---|---|
| Price: | By negotiable |
| Packaging Details: | 25kgs barrel+ pallet or woodencase |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000mts annually |
|
Detail Information |
|||
| Product Name: | Ceramic Blasting Media | Commodity: | Ceramic Beads |
|---|---|---|---|
| Size: | B20,B30,B40,B60,B80,B100,B120,B150,B170,B205,B400,B505 | Bulk Density: | 2.3 G/cm3 |
| True Gravity: | 3.85 G/cm3 | Mohs Hardness: | 7-8 Mohs |
| Vicker Hardness: | 700 HV Min | Sample: | Free |
| High Light: | B30 Ceramic Beads Blasting Media,Ceramic Beads Blasting Media B40,B60 Ceramic Blasting Media |
||
Product Description

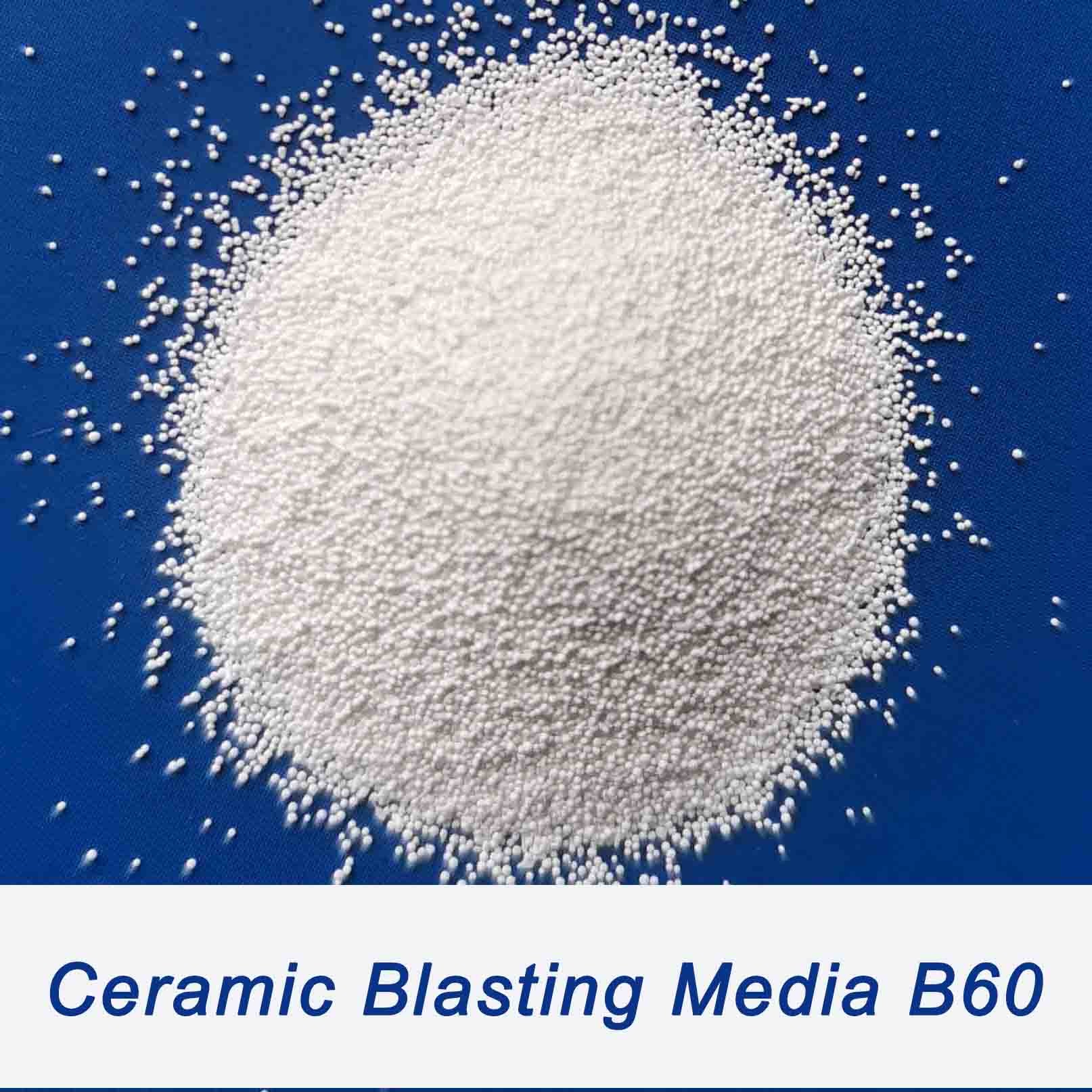

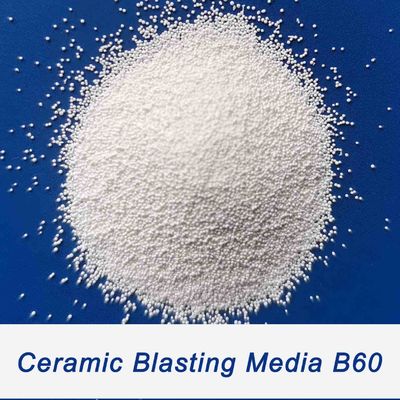

Ceramic Beads Blasting Media B20 B30 B40 B60 for Glass-bottle Molds Surface Cleaning
1. Product Description of Ceramic Blasting Media
In the metal sandblasting process, blasting media is one of the most important factors determining the
quality of metal surface treatment.
Ceramic beads selects the high quality zircon sand as main material,then fused in one arc furnace and
made into different size by special technology. It can be widely used in many industries such as consumer
electronics, healthcare, automotive, aerospace, household goods, and shipbuilding.
It is an ideal substitute for glass beads in blasting applications.
2. Main Technical Data
| Commodity | Process | Chemical Index | Physical Index |
| Ceramic Beads | Melting | ZrO2 60-66% | Bulk density:2.3g/cm3 |
| SiO2 25-30% | True Gravity ≥3.85 g/cm3 | ||
| Al2O3 7-13% | Vicker Hardness≥700 HV | ||
| Particle Size For Blasting Media |
B20:0.600-0.850mm | B100: 0.125-0.180mm | |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm | ||
| B40: 0.250-0.425mm | B170: 0.045-0.090mm | ||
| B60: 0.125-0.250mm | B205: 0.000-0.063mm | ||
| B80: 0.180-0.250mm | B400: 0.030-0.063mm | ||
| Particle Size For Shot Peening |
Z100: 100-150μm | Z425:425-600μm | |
| Z150: 150-210μm | Z600: 600-850μm | ||
| Z210: 210-300μm | Z850: 850-1180μm | ||
| Z300: 300-425μm | / | ||
| Remark: Special specification can be customized | |||
3. Main Applications of Ceramic Beads
Surface finish for consumer electronics such as computer,digital camera,mobile phone,power bank,data
cable and its accessories;
Surface cleaning for glass-bottle molds,tire molds,die casting...
Surface pretreatment before electroplating,anodizing...
Surface shot peening for automotive,aerospace...
4. Main Features of Ceramic Blasting Media
High hardness,long service-life,good elasticity,whose service life is 25times as the one of glass beads,
especially suitable for metal surface finish;
Low dust generation,which provide one clean and healthy blasting condition
No ferrous contamination to the treated workpieces,little damage to the blasting equipment
Low break-down rate,which provide high efficient blasting and more consistent blasting effect
5. Applicable Blasting Equipment
Manual sandblasting machine
Automatic sandblasting machine
Open sandblasting machine
Sandblasting Room
6. Why Choose us?
Professional manufacturer of ceramic beads
Advanced production line, professional technical staffs, strict quality control system
Quick response and quick delivery
Flexible business mode and payment term
Stable supplier of Foxconn,samsung...
