B100 Ceramic Blasting Media Bead For Stainless Steels Sandblast Surface Finish

Minimum Order Quantity : 100KGS Price : Negotiation

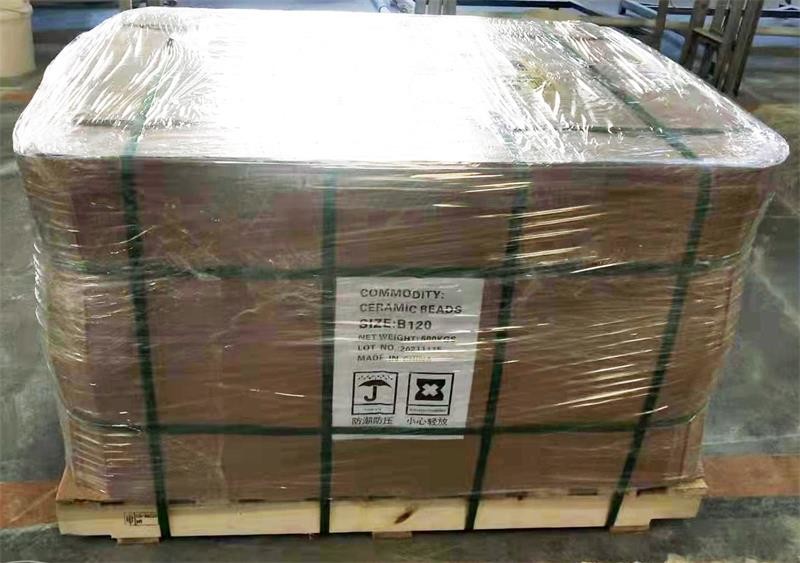

Packaging Details : 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet Delivery Time : 5-10 days
Supply Ability : 1500mt per year
Place of Origin: Zhengtong, China Brand Name: Zhengtong
Certification: ISO9001, ISO14001 Model Number: B100: 125-180μm

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
High Light:

B100 Ceramic Bead Blasting Media

,

Stainless Steels Ceramic Blasting Media Bead

,

Sandblast Surface ceramic bead abrasive

Product Description

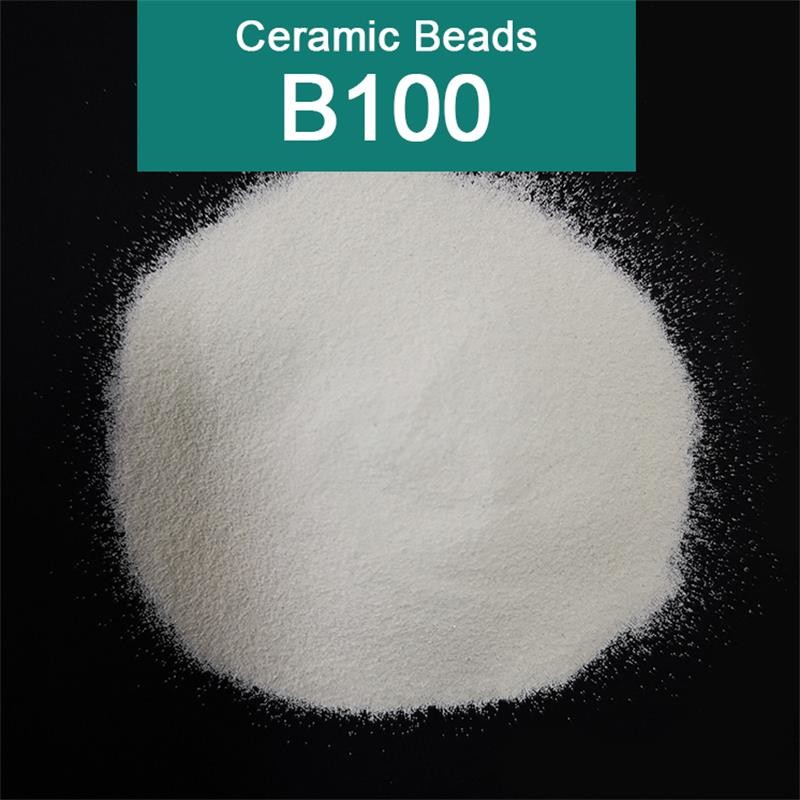

B100 Ceramic Bead Blasting Media For stainless steels Sandblast Surface Finish





WHAT IS CERAMIC BLASTING MEDIA



Ceramic blasting media is an abrasive blasting media commonly used in blasting machines. It's also known as ceramic beads or zirconia sand, it is produced by the electric/thermal fusion of zirconia sand. The internal structure of ceramic blasting media is composed of crystalline ceramic phase bonded with amorphous silica phase, which has high impact performance and good hardness.

PECIFICATION OF CERAMIC BLASTING MEDIA

Manufacturing process: Melting method



ZrO2 SiO2 Al2O3 Other
60-66%, 25-30% max. 7-13% max. 5-8%



Color Bulk Density True Specific Density Vickers Hardness
White 2.3g/cm3 3.85g/cm3 700 HV





Grit size B20 B30 B40 B60 B80 B100 B120
Microns μm 600-850 425-600 250-425 125-250 180-250 125-180 63-125
Grit size B125 B170 B205 B400 B505

Special sizes

can be customized

Microns μm 0-125 45-90 0-63 30-63 0-63
Grit size Z850 Z600 Z425 Z300 Z210 Z150 Z100
Microns 850-1180 600-850 425-600 300-425 210-300 150-210 100-150



FEATURES OF CERAMIC BLASTING MEDIA



Strong chemical resistance

Guarantees constant performance eg. consistent Surface blasting effect.



Low dust emission

Does not contaminate the work piece surface, and no hidden danger of silicosis, it is harmless to the human body.



Not easy to break

Recyclable,and can reduce the refueling times, improve working efficiency.





HOW ABRASIVE BLASTING MEDIA WORKS?

Use purified compressed air to spray dry ceramic beads on the surface of metal products to remove surface defects and present a uniform, matte sand surface.

Types of Abrasive Blasting

1. Air Blasting (Conventional)
2. Wet Blasting
3. Vacuum Blasting
4. Centrifugal Blasting
5. Vapour blasting
6. Micro blasting

APPLICATION OF CERAMIC BLASTING MEDIA



Blasting cleaning: to remove burrs, casting slag and other defects and dirt on the surface of the workpiece and also residues of the molds;


Blasting finish: to show natural metal color and achieve uniform surface matting effect.


Pretreatment: to get clean surface and frosted rough surface before Anodizing and coating.



B100 Ceramic Blasting Media Bead For Stainless Steels Sandblast Surface Finish 0









Main functions:

Blasting cleaning: to remove burrs, casting slag and other defects and dirt on the surface of the workpiece and also residues of the molds;

Blasting finish: to show natural metal color and achieve uniform surface matting effect.

Pretreatment: to get clean surface and frosted rough surface before Anodizing and coating.
