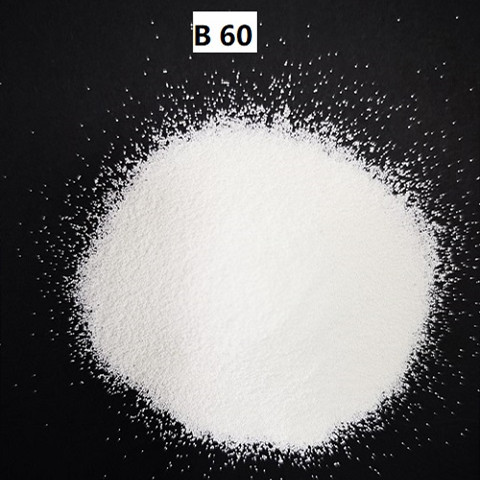

Size B60 Ceramic Blasting Media 0.3mm Zirconia Beads For Devices Surface Treatment

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 25kgs Paper Cartons Or 25kgs Barrels +pallet Delivery Time : 3-7 days after order confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 3000mts per year
Place of Origin: Shanxi,China Brand Name: Zirnano
Certification: ISO9001, IS014001 Model Number: B20-B505

Detail Information

Commodity: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%
Manufacturing: Melting Method Bulk Density: 2.3g/cm3
Hardness: ≥700HV Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

Zirconia Beads Ceramic Blasting Media

,

Ceramic Blasting Media 0.3mm

,

Devices Surface Treatment Ceramic Blasting Media

Product Description

B40 B60 B80 B120 Ceramic Bead Blasting Media Zirconia Beads for Surface Cleaning and Treatment



1. Product Description

The ceramic beads are made from zirconium sand, and melting & blending in the high temperature mine heat furnace, then made to micro beads by special technology with high hardness, good elasticity, high gloss and high impact strength.

There are B series ceramic beads blasting media with sizes from B20 to B505, and Z series ceramic beads shot peening media with sizes from Z100 to Z850. B series can be used as a sandblasting media in sandblasting machine for finishing, deburring, cleaning and descaling ferrous and non-ferrous parts. Z series can be used as shot peening media in shot peening machines for metal parts strengthen and cleaning.



2. Main Technical Data of Ceramic Blasting Media


Commodity Ceramic Beads/Ceramic Blasting Media
Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%



Physical Index Vickers Hardness ≥700 HV
Bulk Density≥2.3g/cm3
True Gravity: 3.85g/cm3
Process: Melting




Particle Size B20: 0.600-0.850mm B120: 0.063-0.125mm
B30: 0.425-0.600mm B150: 0.053-0.106mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.150-0.300mm B205: 0.000-0.063mm
B80: 0.125-0.212mm B400: 0.030-0.063mm
B100: 0.106-0.180mm B505: 0.000-0.030mm
Remark: Special specification can be customized





3. Features

1)High efficiency

With high hardness, long life and good elasticity, suitable for the complicated structure, without damage to the surface of the workpiece, eliminate the stress and improve the fatigue life of the workpiece.

2)High-cost performance

Compared to glass beads, it has higher cleanliness, can prolong the service life 30-50 times. Compared to steel beads, it has superior smoothness, can prolong life 3-5 times. It‘s also recyclable, and can reduce the refueling times, improve working efficiency.

3)Environmental protection

Not easy to break during sandblasting process, no dust, clean, and no hidden danger of silicosis, it is harmless to the human body.



4. Application

1)Surface finish for 3C products and its accessories such as metal back shell,built-in parts,power bank,
data cable...
2)Surface cleaning for moulds such as moulds of glass-bottle,automobiles, plastic, medical and auto parts...
Surface finish for golf parts such as golf heads and clubs...
3)Shot Peening for automobile parts such as aluminum alloy wheels, and inner wall of cylinder liners, built-in
parts of gear and gearbox.
4)Surface finish for electromechanical hardware, such as springs, electric plug workpieces, motor casings
and inner walls, mechanical gears, electric plug



Size B60 Ceramic Blasting Media 0.3mm Zirconia Beads For Devices Surface Treatment 0





5. Appliction Equipment

1) Manual sandblasting machine

2) Automatic sandblasting machine

3) Open type sandblasting machine

4) Sandblasting machine room
