Size B100 Ceramic Beads Blasting Media Size 0.125-0.18 mm Stainless Steel Surface Finish

Size B100 Ceramic Beads Blasting Media Size 0.125-0.18 mm Stainless Steel Surface Finish

Product Details:

Place of Origin: Shanxi,China
Brand Name: Zirnano
Certification: ISO9001, IS014001
Model Number: 0.2-60mm

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: 25kgs Barrels+Pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200mts per month
Get Best Price Contact Now

Detail Information

Commodity: Ceramic BlastingMedia Bulk Density: 2.3 G/cm3
True Gravity: 3.85 G/cm3 Vicker Hardnes: 700HV
Main Material: 62-66% ZrO2 Usage: Surface Finish For Metal Surface

Product Description

1.Product Description

Ceramic beads blasting media is a new environment friendly sandblasting material, it can be used to replace of glass beads, about 12 times longer working life than glass beads, no dust, no iron pollution, good toughness, good wear resistance and excellent performance in sandblasting finish for metals like alu, alu alloy, Titanium alloy, magnesium alloy, steel, stainless steel etc.

Our ceramic beads are of good toughness, good wear resistance and impact resistance, which ensures consistent surface finishes.



2. Specification

Technical Data
Components Content CAS No. EC No.
ZrO2 (Zirconium dioxide) 60-68% 1314-23-4 215-227-2
SiO2 (Silicon dioxide) 25-30 60676-86-0 262-373-8
Al2O3 (Aluminum oxide ) 7-13% 1344-28-1 215-691-6
Manufacturing Method Melting in above 2000℃ furnace
True Density 3.85 g/cm3
Bulk Density 2.3g/cm3
Vicker Hardness 700HV

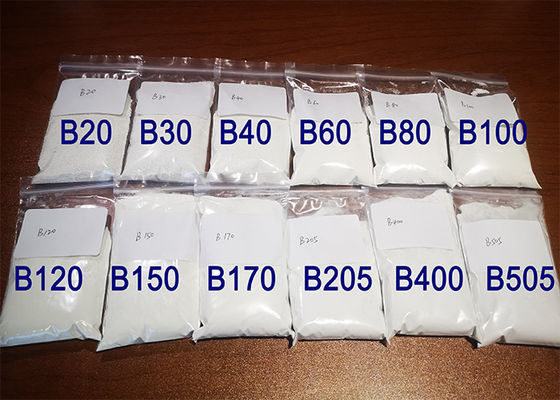

Sizes for Sand Blasting
Bead Size Size range Bead Size Size range
B20 0.60-0.85 mm B120 0.063-0.125 mm
B30 0.425-0.60 mm B125 0.000-0.125 mm
B40 0.24-0.425 mm B170 0.045-0.090 mm
B60 0.125-0.25 mm B205 0.000-0.063 mm
B80 0.180-0.25 mm B400 0.030-0.063 mm

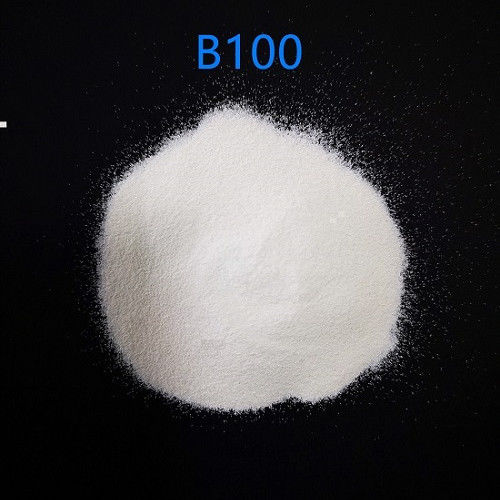

B100 0.125-0.18 mm B505 0.000-0.030 mm
Sizes for Shot Peening
Z850 0.85-1.18 mm Z210 0.21-0.30 mm
Z600 0.6-0.85 mm Z150 0.15-0.21 mm
Z425 0.425-0.60 mm Z100 0.10-0.15 mm
Z300 0.30-0.425 mm



3. Applicaiton

Surface finish for metal parts to achieve one satin blasting effect;

Surface preparation for electroplating or anodizing to achieve a certain surface roughness;

Surface finish for medical instruments to remove the microburrs and make small round conners at the

junctions of two surface to finally achieve the most smoothness texture;

Surface reinforcement for automotive parts to eliminate the surface stress and improve the surface strength.

Size B100 Ceramic Beads Blasting Media Size 0.125-0.18 mm Stainless Steel Surface Finish 0



4. Applicable Equipments of Ceramic Beads

1)Manual sand blasting machine

2)Annual Sand blasting Machine

3)Sandblasting room
