• High Consistency Bead Blasting Material , B400 Ceramic Bead Blasting Media
High Consistency Bead Blasting Material , B400 Ceramic Bead Blasting Media

High Consistency Bead Blasting Material , B400 Ceramic Bead Blasting Media

Product Details:

Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: B20-B400

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet
Delivery Time: 3-10 days depending on the order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200mt per month
Get Best Price Contact Now

Detail Information

Product Name: Zirconia Blasting Media,Ceramic Beads Usage: Iphone Metal Finish
Specification: B400 Bulk Density: 2.3g/cm3
Vicker Hardness: 700HV True Gravity: ≥3.85 G/cm3
High Light:

bead blasting material


ceramic bead blasting media

Product Description

Higher Consistency Zirconia Blasting Media Ceramic Beads B400 for Iphone Metal Finish


1. Description of Zirconia Blasting Media Ceramic Beads

Generally, there are three kinds of zirconia beads according to different zirconia content:

Zirconia Ceramic Beads,60-66% zirconia,which is used for blasting media

65 zirconia beads, Min 65% zirconia,which is used for grinding media

95 zirconia beads,Min 95% zirconia, which is also used for grinding media


Here we mianly introduce the first zirconia ceramic beads,it is the fusion of zircounium sand,

fused and made in to different micro beads through special process.

2. Main Technical Index of Zirconia Blasting Media Ceramic Beads


Commodity Main Chemical Index Main Physical Index

Blasting Ceramic Beads


(Melting Method)

ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Al2O3 7-13%

Vickers Hardness: 700 kg /mm2


Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized


3. Product Features of Zirconia Blasting Media Ceramic Beads


High Hardness and light weight

when a large number of projectiles are sprayed onto the treatment surface,then it will be formed one

strong plastic deformation on the treatment suface and finally occurs a certain thickness of clod hardened

layer,also called the surface strengthening layer to improve the fatigue strength of treatment under high

temperature and high humidity.

Low Consumption and consistent blasting effect

Ceramic beads has high hardness and low abrasion rate make it little broken in blasting process,people do

not need to refuel the beads frequently, it will reduce the beads consumption and also ensure the consistency

of the surface blasting effect in mass production

No ferrous contamination

Ceramic beads has white color and unique chemical composition,it will not offer foreign impurities and ferrous

contamination to the treatment surface;

No Hidden Silicosis Danger

Ceramic beads is not easy to be broken down,so there is little dust pollution,also no health danger to the workers.


4. Main Application of Zirconia Blasting Media Ceramic Beads


Ceramic Beads B400 is widely used for surface finishing such as the mobile phone metal surface finish

In addition,Ceramic Beads is also used the following applications (just name few)


B205 for metal surface finishing of 3C products etc.

B170 used for sandblasting the metal surface and built-in parts of iphone,ipad,ipod;

B120 for the surface finish of golf club or medical instruments

B60 for the pipeline inner and outer wall blast cleaning

B40 for cleaning the glass molds

B20 & B30 for metal surface shot peening


5. Applicable Equipment:


Manual Sandblasting machine;

Automatic Blasting Machine;

Open Blasting Machine;

Sandblasting Room


6. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.

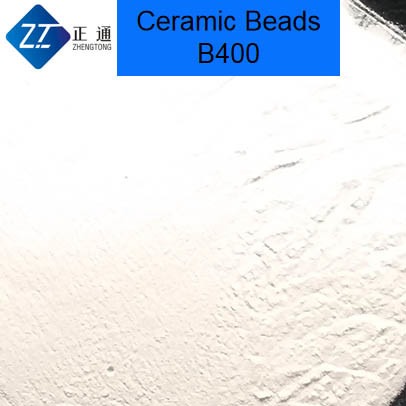

High Consistency Bead Blasting Material , B400 Ceramic Bead Blasting Media 0

6. Why Choose Us?

Professional manufacturer,Providing good products with stable quality & favorable price;


Equipped with the most advanced production line and testing equipments,certificatd by ISO9001&14001;


Being the stable supplier of Foxconn,Samsung,products has exported to USA,Vietnam,South Korea,Japan
