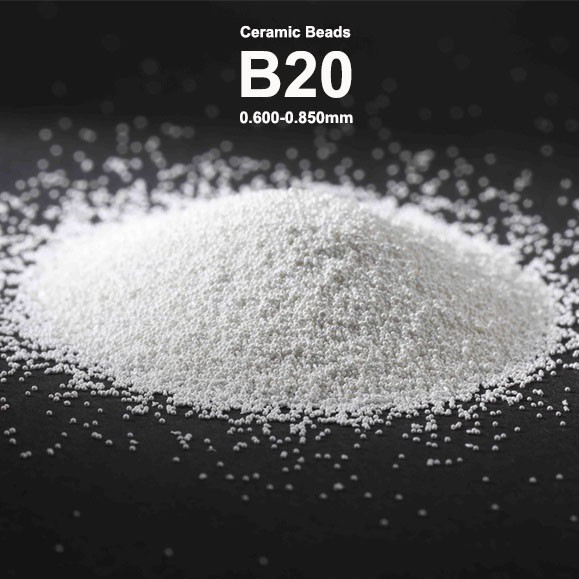

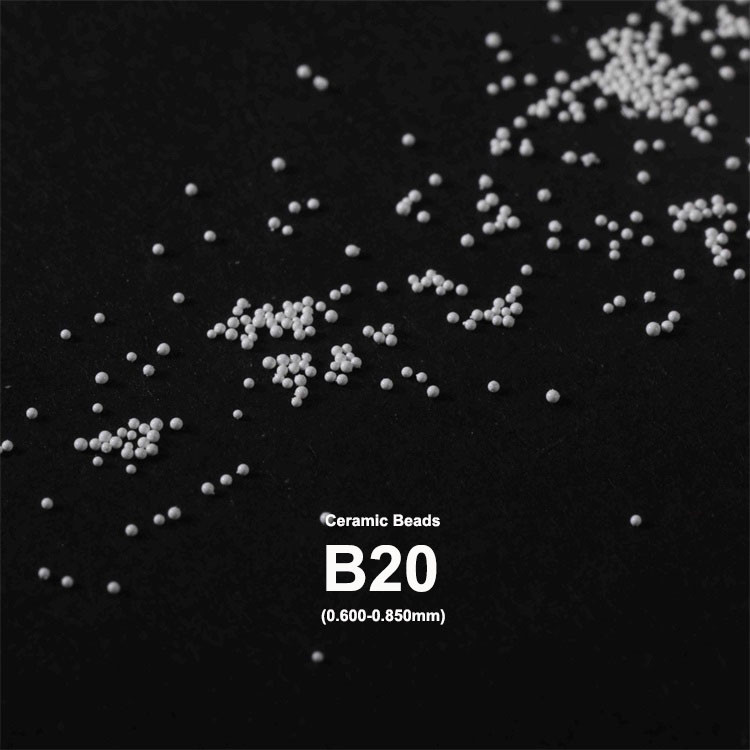

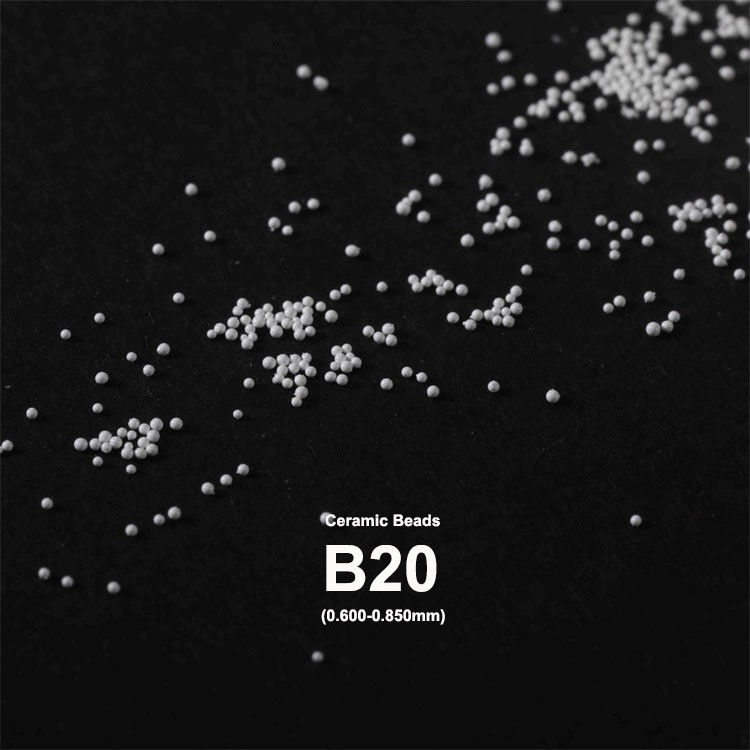

Micro Sphere Ceramic Beads Blasting Media B20 0.600 - 0.850mm B30 0.425 - 0.600mm

Minimum Order Quantity : 100KGS Price : Negotiation
Packaging Details : 25kg Round or Square Barrel+Pallet;25kg Round Barrel+ Wooden Case;2*12.5kg Barrel+Carton Box+Pallet Delivery Time : 3-5 days depending on the order quantity
Payment Terms : L/C, T/T, Western Union,Paypal Supply Ability : 200mt per month
Place of Origin: Shanxi,China Brand Name: ZIRNANO
Certification: ISO9001,ISO14001 Model Number: B20-B505

Detail Information

Product Name: Ceramic Beads Commodity: Ceramic Blasting Media
Specificaton: B20 Particle Size: 0.600-0.850mm
Bulk Density: ≥2.3g/cm3 True Gravity: 3.85g/cm3
Hardness: 643-785HV Application: Metal Surface Finish
High Light:

Micro Sphere Ceramic Beads Blasting Media

,

Ceramic Beads Blasting Media B20

,

B30 Ceramic Bead Blasting

Product Description

1. Product Description of Ceramic Beads

Ceramic beads is one round solid blasting media, It has the outstanding features of high hardness,good

elasticity,low breakdown rate,especially suitable for the metal surface finishing.



It selects the high-quality zircon sand as main raw material, then fused in arc furnace at high temperature,

then screened into different micro-beads by process of cooling, selection,electromagnetic,packing.



Ceramic beads is one clean and high efficient blasting media,which is widely used to replace glass beads

due to its outstanding features of high hardness and low break down rate.



2. Main Technical Data of Ceramic Blasting Media



Commodity Name Chemical Index Physical Index
Ceramic Blasting Beads

ZrO2 60-66%

SiO2 25-30%

Al2O3 7-13%

Vickers Hardness ≥700 HV
True Specific Gravity ≥3.85 g/cm3
Bulk Density≥2.3g/cm3
Size for Blasting Media B20: 0.600-0.850mm
B30:0.425-0.600mm
B40:0.250-0.425mm
B60:0.150-0.300mm
B80:0.125-0.212mm
B100:0.106-0.180mm
B120:0.063-0.125mm
B150:0.000-0.125mm
B170:0.045-0.090mm
B205: 0.000-0.063mm
B400: 0.030-0.063mm
B505: 0.010-0.030mm
Size for Shot Peening Z100: 0.100-0.150mm
Z150: 0.150-0.210mm
Z210: 0.210-0.300mm
Z300: 0.300-0.425mm
Z425:0.425-0.600mm
Z600: 0.600-0.850mm
Z850: 0.850-1.180mm
Special specification can be customized



3. Main Applications of Ceramic Blasting Media

Surface pretreatment before electroplating,anodizing,coating to increase the surface roughness and

adhesion;



Surface finish for metal parts,aluminium alloys,titanium alloy,magnesium alloy,stainless steel parts to

restore its metallic luster;



Surface cleaning for glass bottle molds,tire molds to remove the impurities and dirt;



Surface finish for rubber and plastic parts to remove the burrs and spilled parts;



Shot peening for engines in aviation and automotive Industry to achieve the purpose of stress relief

and surface strengthening.

Micro Sphere Ceramic Beads Blasting Media B20 0.600 - 0.850mm B30 0.425 - 0.600mm 0



4. The comparation between ceramic blasting media and zirconium silicate beads

Some times people always confuses ceramic beads with zirconium silicate beads,since they

have the similar apperance and chemical compostion,while they‘also have many differences actually.

Details please see the following chart:



Item Ceramic Blasting Beads 65 Zirconium Silicate Beads
Chemical Index

ZrO2 60-66%

SiO2 25-30%

Al2O3 7-13%

ZrO2 ≥65%

SiO2 25-30%

Others ≤1.0%

Shape beads beads
Hardness 8 Mohs 8 Mohs
True Specific Gravity ≥3.85 g/cm3 ≥4.0g/cm3
Bulk Density ≥2.3g/cm3 ≥2.5g/cm3
Particle Size 0.010-0.850mm Φ0.1-10mm etc.
Different Applications

Blasting media,

widely used for surface finishing,which matches most types of blasting equipment

Grinding media,widely used for grinding&dispersing of low or medium viscosity slurry,which matches sand mill.



And they have different applications: ceramic beads for blasting application,while zirconium silicate

beads for grinding & dispersing application.



5. Main Package of Ceramic Beads

25kg round barrel+ Pallet

25kg square barrel+ Pallet

25kg round barrel+ Wooden case

Special size can be customized accordingly.



6. FAQ

How about your MOQ?

MOQ is 25kgs by air way and 100kgs by sea way.



How to place one order?

Please kindly click any product photos in our website and leave massage to us,we will send you formal order

immediately.



Do you provide free sample?

Yes,free sample no more than 1kgs is available.
