Size B60 Ceramic Bead Blasting Media For Aluminum Die Cast Sandblast Deburring
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |

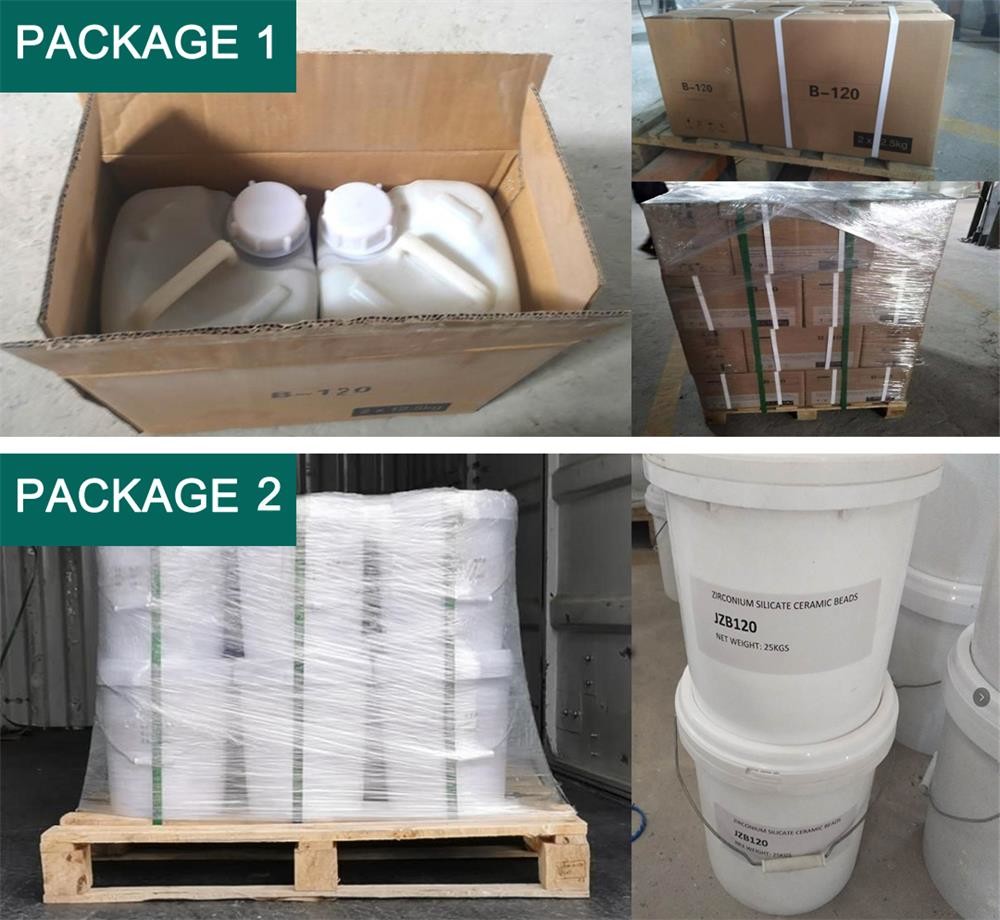

| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | low dust blasting media,ceramic cleaning media |
||
Product Description

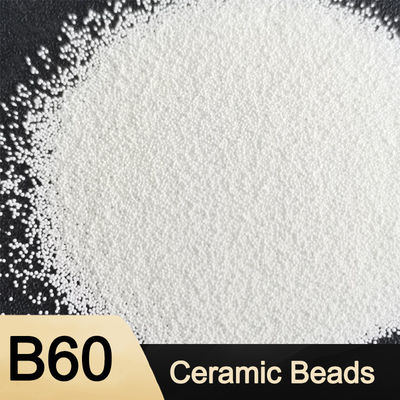

Size B60 Ceramic Beads Blasting Media for Aluminum Die cast deburring
Description of Ceramic beads abrasive media
Ceramic beads is one of abrasive blasting media, especially used in aluminum die-casting work pieces sandblasting deburring, such as small screws, gears, mobile phone casings, etc. Ceramic beads sandblasting deblurring can achieve the effect of removing tiny burrs, not easy to see any burring residue with the naked eye.
Applicable sizes from B20 to B505.
Applicable materials:
Aluminium;
Steel;
Stainless steel;
Alu alloy;
Titanium Alloy;
Magnesium Alloy;
Copper;
and other alloy metals...
Applicable equipment:
Sandblasting machines
Applications:
Metal surface cleaning
Metal surface blasting matte finish
Metal surface blasting pretreatment before coating or anodizing
...
Specification of Ceramic beads abrasive media
Manufacturing process: Melting method
| ZrO2 | SiO2 | Al2O3 | Other |
| 60-66%, | 25-30% max. | 7-13% max. | 5-8% |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |
| Grit size | B20 | B30 | B40 | B60 | B80 | B100 | B120 |
| Microns μm | 600-850 | 425-600 | 250-425 | 125-250 | 180-250 | 125-180 | 63-125 |
| Grit size | B125 | B170 | B205 | B400 | B505 | Special sizes can be customized | |
| Microns μm | 0-125 | 45-90 | 0-63 | 30-63 | 0-63 | ||
| Grit size | Z850 | Z600 | Z425 | Z300 | Z210 | Z150 | Z100 |
| Microns | 850-1180 | 600-850 | 425-600 | 300-425 | 210-300 | 150-210 | 100-150 |
Production process of Ceramic beads abrasive media
Features of Ceramic beads abrasive media
High efficiency
With high hardness, long life and good elasticity, suitable for the complicated structure,without damage to the surface of the workpiece, eliminate the stress and improve the fatigue life of the workpiece.
High cost performance
Compared to glass beads, it has higher cleanliness, can prolong the service life 30-50 times. Compared to steel beads, it has superior smoothness, can prolong life 3-5 times. It ‘s also recyclable,and can reduce the refueling times, improve working efficiency.
Environmental protection
Not easy to break during sandblasting process, no dust, clean, and no hidden danger of silicosis, it is harmless to the human body.
Application of Ceramic beads abrasive media
Deburring with sandblasting
The abrasive like ceramic beads or aluminum oxide grits together with compressed air is pushed through the blast nozzle to the workpiece. The high speed abrasive grains wear away the burrs. Most blasting techniques act as deburring methods.
Ceramic beads abrasive media also widely used for metal surface finish and blast pretreatment.
How to choose sandblast way to deburr?
The first thing to consider is the burr itself - the thickness and size of the burr.
Sandblasting is usually applied to lighter or smaller burrs.
Consider the below points:
• Is the burr thick or thin?
• The geometry of the part. Sandblasting is a better choice for parts that are not easily tumbling. Sandblasting media include smaller sandblasting materials such as ceramic sand, glass beads, alumina, resin sand or other media, making it easier to reach these locations.
• If the burr does not fall off immediately by sand blasting, sandblasting to remove burrs will not be the correct method.
Conclusion: At present, there are more used in die casting plants. Suitable for small aluminum alloy die castings with large batch sizes.
Applicable equipment
Generally, the small type screw is recommended to use the drum type automatic sand blasting machine.
The gear deburring can use the rotary type automatic blasting machine.
The circular saw deburring and the special circular saw special blasting machine.
