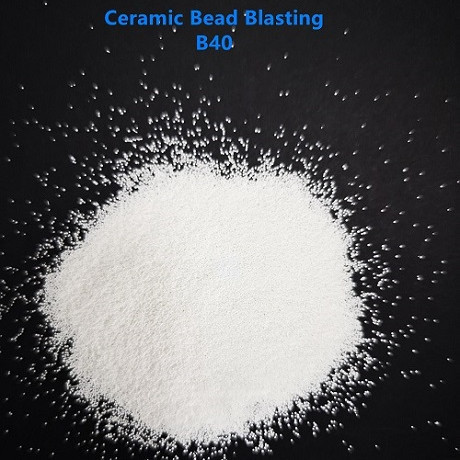

Ceramic Bead Blasting B40 For Open Sandblasting Machine 3C Product 60-66% ZrO2
Product Details:
| Place of Origin: | Shanxi,China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, IS014001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |

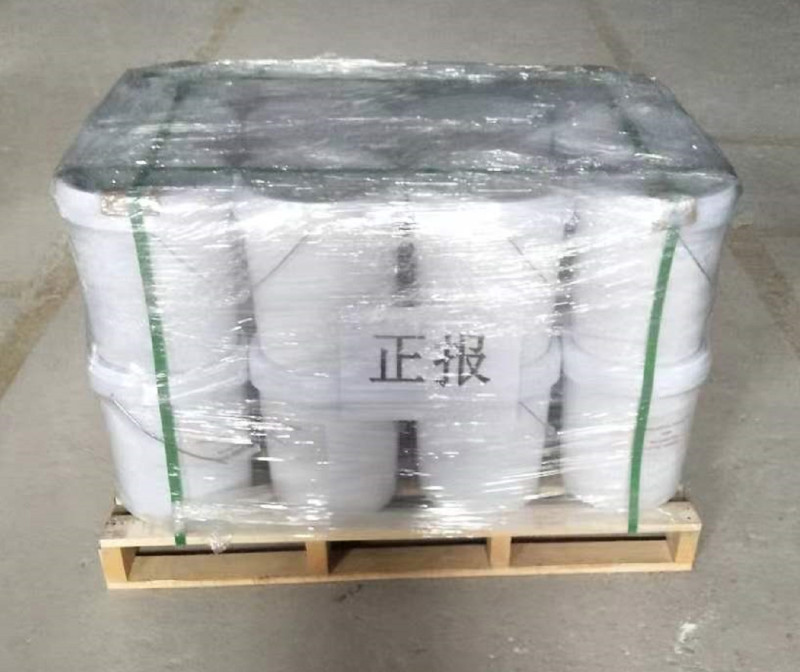

| Packaging Details: | 25kgs Barrels+Pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, Western Union |
| Supply Ability: | 200mts per month |
|
Detail Information |
|||
| Product Name: | Metal Surface Treatment Ceramic Bead Blasting Media | Shape: | Solid Round Ball |
|---|---|---|---|
| Main Material: | 60-66% ZrO2 | Bulk Density: | 2.3 G/cm3 |
| Vicker Hardness: | 700HV | True Gravity: | 3.85 G/cm3 |
| Usage: | Open Sandblasting Machine | ||
Product Description
1. Product Description
The ceramic beads is made from imported zirconium sand, melting and blending in the high temperature mine heat furnace, then made to micro beads by blowing technology with high hardness, good elasticity, high gloss and high impact strength. It is sand- blasting media for metal surface treatment and shot peening media for the aerospace industry and the automotive industry.
It including B series sandblasting media and Z series shot peening media.It including B series sandblasting media and Z series shot peening media.
2. Technical Parameters
|
Chemical & Physical Index
|
||||||
| Chemical Index | Production Process | True Density | Bulk Density | Hardness | ||
| Vickers | Mohs | Rockwell | ||||
|
ZrO2 : 60-66% SiO2: 25-30% Al2O3: 7-13% |
Smelting | 3.85 | 2.3 | 700HV | 7 | 60HRC |
|
Sizes
|
||||||
| B20: 0.600-0.850mm | B80: 0.125-0.212mm | B170: 0.045-0.090mm | ||||
| B30: 0.425-0.600mm | B100: 0.106-0.180mm | B205:0.000-0.063mm | ||||
| B40: 0.250-0.425mm | B120: 0.063-0.125mm | B400: 0.030-0.063mm | ||||
| B60: 0.150-0.300mm | B150: 0.053-0.106mm | B505: 0.010-0.063mm | ||||
|
Features of Ceramic beads
|
||||||
| 1. Consistency of spherical shape and sizes provides smooth sating surface finish and consistent results from the first part to the last. | ||||||
| 2.Outstanding elasticity provides a high impact force. | ||||||
| 3. High wear resistance, high impact resistance, and low dust. | ||||||
| 4. Cost-effective compared to glass beads, media consumption reduced up to 90% Vs glass Beads. | ||||||
|
Parameters- (Comparing with glass beads and steel shot)
|
||||||
| Parameters | Ceramic Beads | Glass Beads | Steel Shot | |||
| Chemical index | ZrO2+SiO2+Al2O3 | SiO2+NaO2 | C+Si+Mn+S+P | |||
| Vickers Hardness | ≈700HV | ≈560HV | ≈700HV | |||
| Rockwell Hardness | ≈60HRC | ≈46HRC | ≈60HRC | |||
| True Density | 3.85g/cm3 | 2.6 g/cm3 | 7.8 g/cm3 | |||
| Size range | 0.04-0.85mm | 0.045-0.85mm | 0.05-0.60mm | |||
| Shape | spherical | spherical | fillet | |||
| Dust Pollution | Very little | big | medium | |||
| Metal Pollution | no | no | spherical | |||
| Recycling times | Multi-time | 1-2 times | Multi-time | |||
| Work life | Long | Low 1/25 of ceramic beads | Long | |||
| Power consumption | Low | Low | High | |||
| Equipment wear loss | Low | Low | High | |||
| Sandblasting effect | High finish, no discoloration | High finish, whitish | Low finish, darken | |||
3. Applications
1) 3C products - Sandblasting Finishing
2) Aerospace industry-Blasting finishing
3) Automotive industry-sandblasting reinforcement
4) Kitchen Industry-Sandblasting finishing
5) Machinery, Medical Instrument - Sandblast finishing
6) Casting, forging , welded, heat-treated parts - Sandblast Cleaning
7) Pipeline - Sandblast Cleaning
8) Molds - Sandblast cleaning
9) Electroplating, painting, anode-Surface Pre-treatment.
10) Hardware parts - Sandblast to improve lubrication conditions.
4. Our Service
1)Free Samples -within 1kgs
Different blasting workpieces, Different requirements for ceramic beads.
Our factory can provide consult solution, suggest the ceramic beads sizes according to the workpiece you handle and provide 1kgs ceramic beads samples for free.
2)OEM customize same ceramic beads with your samples or requirements.
Our factory has our own test lab., with high precision chemical and particle size detection instruments. You can send ceramic beads samples, then we will test and analysis it and customize same ceramic beads with your samples or according to your customer requirements.
