Product Details:

Place of Origin: CHINA
Brand Name: Zirnano
Certification: ISO9001,ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100kgs
Price: Negotiable
Delivery Time: 3-7 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000mts per year
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Blasting Media Product Name: Ceramic Beads
Color: White Shape: Round Solid Beads
Main Chemical: ZrO2 60-66%,Al2O3 7-13%,SiO2 25-30% Usage: Blasting Media
Hardness: ≥700HV Bulk Density: 2.3g/cm3
High Light:

Round Solid Ceramic Bead Blasting


SS Parts Ceramic Bead Blasting


B40 Ceramic Bead Blasting

Product Description

700HV  Ceramic Bead Blasting Media JZB20 JZB40 JZB60 JZB120 JZB205 for Stainless Steel Parts


1. Product Description of Ceramic Bead Blasting

Ceramic beads selects the high quality zircon sand as main raw material, then fused in arc furnace under

high temperature over 2000 degrees, its unique internal crystal phase provides its strong hardness and

impact resistance. It is one round solid blasting media,with good sphericity and elasticity, which can be

re-bounded in multi-angles,especially suitable for metal surface finish.

2. Simple Comparation between Ceramic Beads and Glass Beads

Ceramic beads and glass beads are all round blasting media,while glass beads is easy to break-down

and dusty,so when one clean and bright blasting condition is required,then ceramic beads is one better

choice,here we just make a simple comparation between glass beads and ceramic beads as below:

Commodity Name Ceramic Blasting Beads Glass Beads
Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Al2O3 0.5-2.0% Fe2O3:0.15%

Vickers Hardness ≥700 HV ≥560HV
True Specific Gravity ≥3.85 g/cm3 ≥2.5g/cm3
Bulk Density ≥2.3g/cm3 ≥1.5g/cm3
Particle Size 0.010-0.85mm 0.001-0.850mm
Usage Blasting Media Blasting Media
Ferrous Contamination No Ferrous No Ferrous
Dust Pollution Little Large
Recyclable Times Multiple One time or twice
Power consumption Low Low
Equipment Wear Rate Low Low
Blasting Effect High finish
No discoloration
High finish
White discoloration

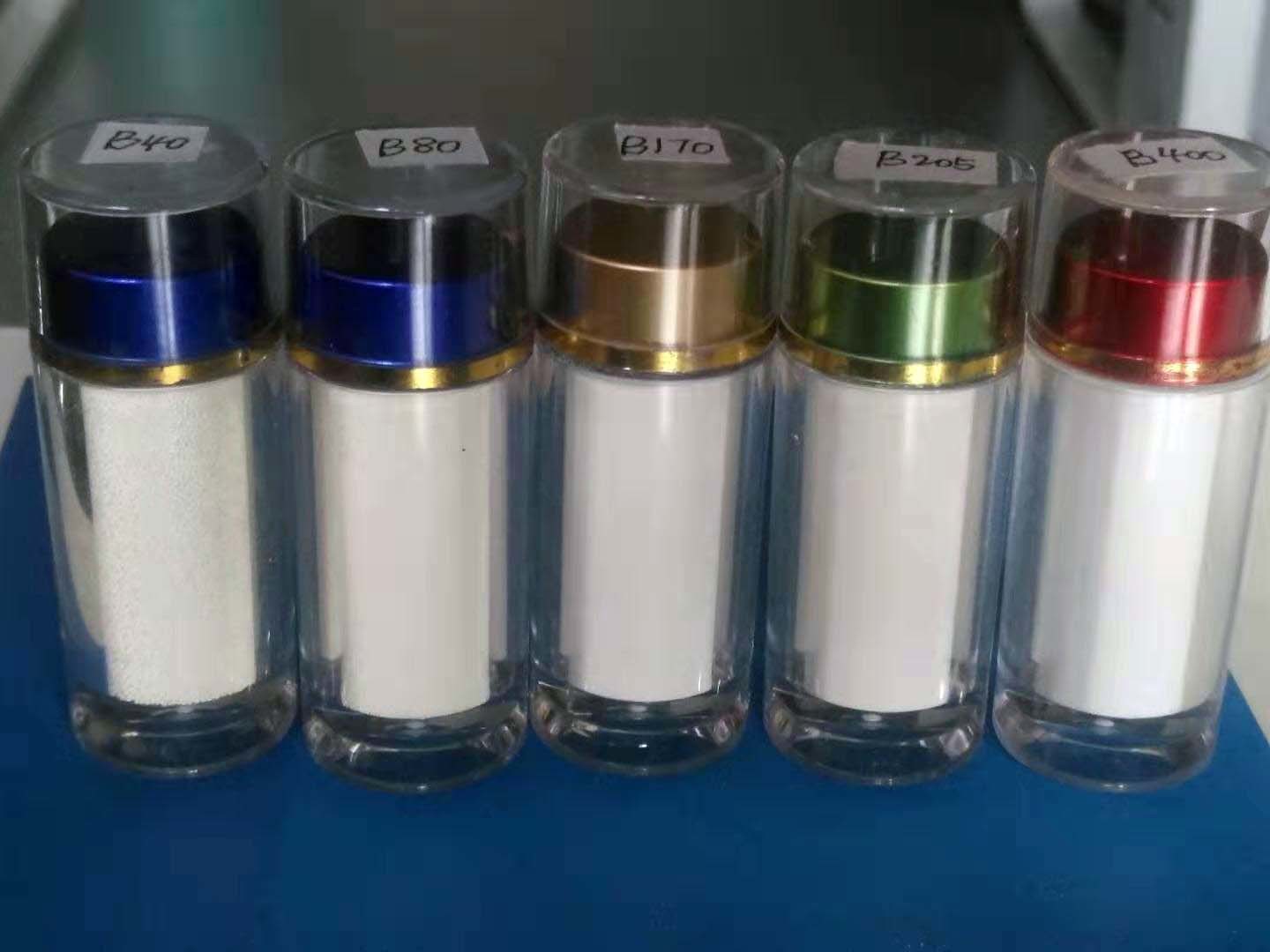

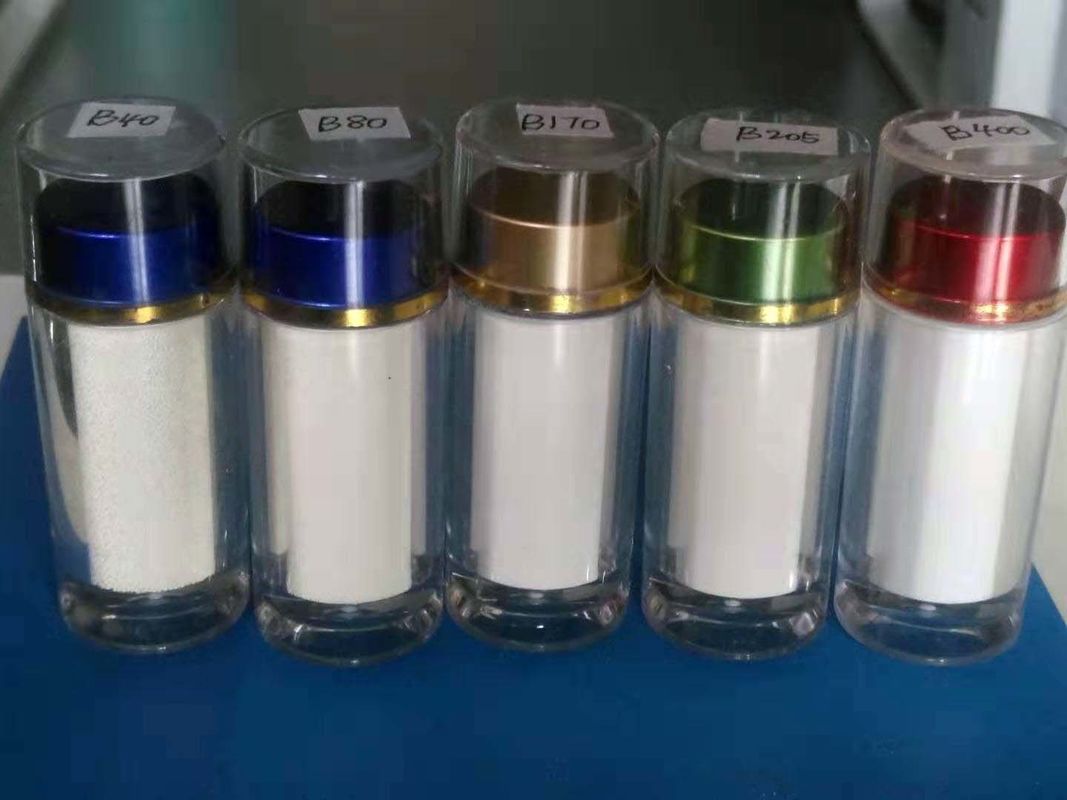

Particle Size Comparation
Ceramic Beads Glass Beads
B20: 0.600-0.850mm 30#:0.425-0.850mm
B30:0.425-0.600mm 40#: 0.425-0.600mm
B40:0.250-0.425mm 60#:0.300-0.425mm
B60:0.150-0.300mm 80#:0.150-0.300mm
B80:0.125-0.212mm 100#:0.106-0.212mm
B100:0.106-0.180mm 120#:0.106-0.150mm
B120:0.063-0.125mm 150#:0.075-0.150mm
B150:0.000-0.125mm 180#:0.075-0.106mm
B170:0.045-0.090mm 220#:0.053-0.106mm
B205: 0.000-0.063mm 280#:0.045-0.075mm
B400: 0.030-0.063mm 320#:0.001-0.050mm
B505: 0.010-0.030mm /
Special Specification can be customized


Seen from the above charts,ceramic beads has higher hardness, higher density,little dust pollution,which

can be recycled in multiple,it is one clean and high efficient blasting media.


3. Main Applications

Surface finish for 3C metal back shell,frame,its built-in parts as well as its accessories...

Mold-cleaning for glass-bottle,tires,die castings....

Surface blasting for heat-treatd parts,electronic parts,circuit board...

Metal finish for aluminum parts,stainless steel parts,light alloys...

Surface blasting for rubber parts,plastic parts...

Surface preparation before anodizing,electroplating...

Stainless Steel Parts Round Solid Ceramic Bead Blasting 0

4. How to store, pack and use ceramic beads:

Ceramic beads should be stored in dry clean and ventilated indoor environment;

Please kindly wear masks and protective suit when using ceramic beads;

It is generally packed in 25kg round barrels , 12.5 round barrels or 25kgs square barrels.

When using ceramic beads for first time,please kindly open 1/3 to 1/2 vest of dust collector,since ceramic

beads need the wind to be recycled in the blasting process.


5. Main Package

25kgs round barrel+Pallet,20 Barrels in one pallet

2*12.5kgs square barrels+ Carton+ Pallet,80 Barrels(40 Cartons) in one pallet

Special package can be customized accordingly.


6. Mode of Transport

Air way: It is suggested to delivery by air way when order quantity is less than 100kgs;

Sea way: It is suggested to delivery by LCL sea way if order quantity more than 100kgs;

Truck way: it is available for vietnam clients when order quantity more than 500kgs.


7. Questions and Answers

Q:How to place one order?

A:Please kindly advise the quantity and specification you need,then we will send you the formal order ASAP.


Q: Which specification is more popular?

A: B60,B120,B170,B205 is more popular specification.


Q:How to store the ceramic beads?

A: It can be stored in dry clean indoor room.


Q: What is the MOQ?

A:MOQ is 25kgs for air way and 100kgs for sea way.


Q:How long to prepare the order?

A: cargo will be ready for delivery within 3 days normally when order quantity is no more than 2mts.


Q: How about the payment terms?

A: Payment by T/T,western union,moneygram,paypal is acceptable.
