700HV Ceramic Blasting Media Zirconia Beads B20 B40 B60 For Steel Pipe Surface Cleaning

Minimum Order Quantity : 100KGS Price : Negotiation

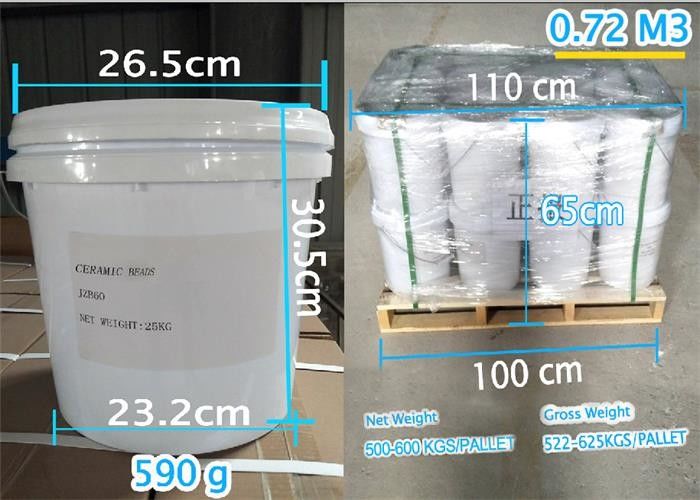

Packaging Details : 25kg Round or Square Barrel+Pallet;25kg Round Barrel+ Wooden Case;2*12.5kg Barrel+Carton Box+Pallet Delivery Time : 3-5 days depending on the order quantity
Payment Terms : L/C, T/T, Western Union,Paypal Supply Ability : 200mt per month
Place of Origin: Shanxi,China Brand Name: ZIRNANO
Certification: ISO9001,ISO14001 Model Number: B20-B505

Detail Information

Product Name: Ceramic Beads Commodity: Ceramic Blasting Media

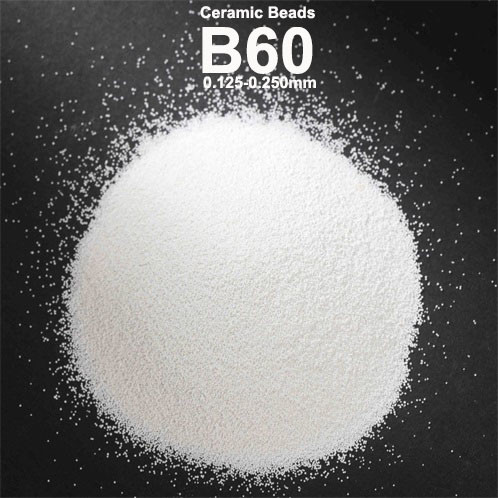

Specificaton: B60 Particle Size: 0.125-0.250mm
Bulk Density: ≥2.3g/cm3 True Gravity: 3.85g/cm3
Hardness: 643-785HV Application: Wet Pressure Blasting Equipment
High Light:

700HV Ceramic Blasting Media

,

B20 Ceramic Blasting Media

,

Ceramic Blasting Media Zirconia Beads

Product Description

700HV Ceramic Blasting Media Zirconia Beads B20 B40 B60 for Steel Pipe Surface Cleaning



1. Product Description of Ceramic Blasting Media

Ceramic beads selects the high quality zircon sand as main material,then fused in arc furnace under high

temperature over 2000 degrees,and finally made into different beads from B20(0.600-0.850mm) to B505

(0.010-0.030mm).



Ceramic beads is one clean and high efficiency blasting media,which can be recycled for 70-90 times in

wet blasting.



There is little dust generated in whole blasting process,which will provide one healthy and bright working

condition,also ensuring the workers to escape from the hidden danger of silicosis.Then ceramic beads

can replace glass beads where one clean and bright working condition is required.



2. Main Technical Data

Commodity Name Chemical Index Physical Index
Ceramic Beads ZrO2 60-66% Vickers Hardness ≥700 HV
SiO2 25-30% Bulk Density≥2.3g/cm3
Al2O3 7-13% True Gravity: 3.85g/cm3
  Process: Melting

Size

for Blasting Media

B20: 0.600-0.850mm B120: 0.063-0.125mm
B30: 0.425-600mm B150:0-0.125mm
B40:0.250-0.425mm B170: 0.045-0.090mm
B60:0.125-0.250mm B205: 0-0.063mm
B80:0.125-0.212mm B400: 0.030-0.063mm
B100:0.106-0.180mm B505: 0.010-0.030mm

Size

for Shot Peening

Z100: 0.100-0.150mm Z150: 0.150-0.210mm
Z210: 0.210-0.300mm Z300: 0.300-0.425mm
Z425:0.425-0.600mm Z600: 0.600-0.850mm
Z850: 0.850-1.180mm /
Special size can be customized accordingly.



3. Main Features of Ceramic Beads

High hardness,High efficiency



Good sphericity,good elasticity



Low break-down rate



Low treatment for solid waste



More consistent blasting effect



4. Main Applications of Ceramic Beads

Metal surface finish for 3C products and its built-in parts and accessories;



Surface finish for plastic and rubber products;



Surface cleaning for glass-bottle moulds;



Surface pretreatment before anodizing,painting,electroplating etc.



Surface shot peening for automotive and aerospace Industry.

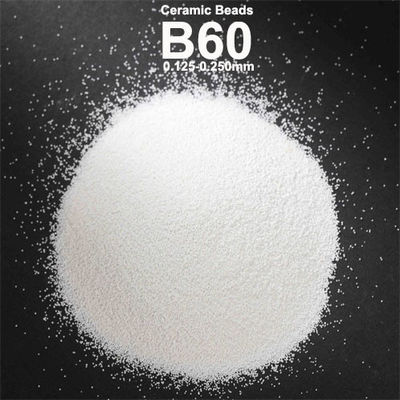

700HV Ceramic Blasting Media Zirconia Beads B20 B40 B60 For Steel Pipe Surface Cleaning 0



5. Why choose us?

Professional manufacturer of ceramic beads,annual output over 3000mts;

Stricter quality control system,each step can be traced from the raw material to finished products;

All shipment will be sampled and tested in twice even for one small sample;

Professional sales and technical staffs,providing 7*24hrs service support;

Quick response, fast delivery,flexible cooperation model;

Customized services to meet the clients’ special requirement.
