425um Ceramic Blasting Media B400 Bead In 25 Kgs Melting Method
Product Details:
Place of Origin: | Shanxi, China |
Brand Name: | Zhengtong |
Certification: | ISO9001, ISO14001 |
Model Number: | B20-B505 |
Payment & Shipping Terms:
Minimum Order Quantity: | 100KGS |
---|---|
Price: | Negotiation |

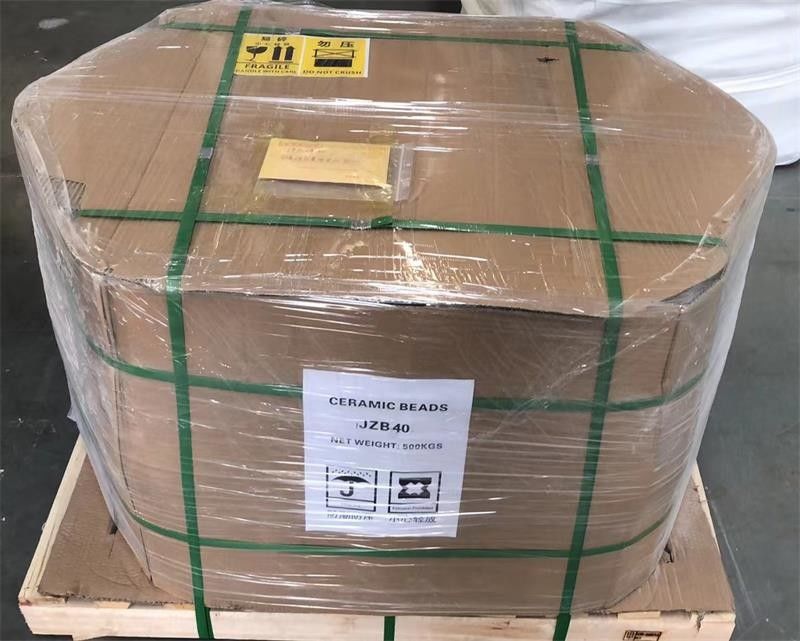

Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
Delivery Time: | 5-10 days |
Supply Ability: | 1500mt per year |
Detail Information |
|||
Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
---|---|---|---|
Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
True Density: | 3.85g/cm3 | Hardness: | 700HV |
Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
High Light: | 425um Ceramic Blasting Media,B400 Ceramic Bead blasting media,Melting method Ceramic beads blasting media |
Product Description

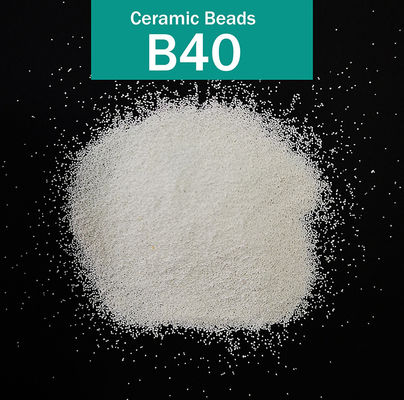

Ceramic blasting media B40 size 250 to 425µm packed in 25 kgs bucket and pallet
Description
Ceramic beads is also called ceramic blasting media. It’s produced by smelting process and then blowing into different spherical beads, with sizes of B20, B30, B40, B60, B80, B100, B120, B150, B170, B205, B400 and B505.
Because of its good elasticity, moderate density, no iron residue, and no dust pollution, ceramic media is usually the best choice for metal surface blast finishing application, especially ideal in applications where ferrous contamination concerns more.
Specification of Ceramic blasting media
Chemical Index | ZrO2 | SiO2 | Al2O3 |
60-65% | 25-30% | 7-13% | |
Typical Value | 62.20% | 26.10% | 9.05% |
Bulk Density | 2.3g/cm3 | ||
Specific Density | 3.85g/cm3 | ||
Vickers Hardness | 700HV |
Ceramic Blasting Media's Sizes
B20 | B30 | B40 | B60 |
600-850µm | 425-6000µm | 0250-425µm | 125-250µm |
B80 | B120 | B170 | B205 |
180-250µm | 63-125µm | 45-90µm | 0-63µm |
Special sizes available against clients’ requirement.
Features
Our ceramic beads is of top quality in China, and has below features
1) Imported raw materials, High quality ceramic beads
Use Australia imported high-quality raw materials to produce ceramic beads, high hardness, good elasticity and higher service life.
2) Independent research and development
Complete product testing equipment and complete independent intellectual property rights, as well as independent laboratories and university cooperative laboratories in Beijing and Shijiazhuang.
More importantly, we have years of continuous improvement in R&D team.
3. Better cleanliness and sizes more concentration
We have our own particle sizes distribution standard, with more concentration granules and can screen as per clients’ requirement.
4. High hardness, long life and good elasticity
The hardness of ceramic beads is high,and the deformation is small.
The hardness of ceramic sand can 700 HV, it ensures that ceramic bead can be shot peened for high strength and high strength structural parts. Small deformation ensures that the shape of the projectile does not change during impact, and the spherical shape of the ceramic sand improves the quality stability of the shot peening of the part.
Application of Ceramic blasting media
Applicable metals including:
- Aluminium
- Aluminium alloy
- Titanium alloy
- Steel
- Stainless steel
- Copper
Applicable finishing including:
- Deburring
- Blast cleaning and decontamination
- Smooth non-gloss satin finish
- Micro-surface profiling
- Mold cleaning
- Rough Surface Pretreatment before coating
Applicable industries:
- 3C industries
- Watch industry
- Auto industries
- Medical instrument industries
- Golf industries
- Aluminum profile industries
- Metal processing industries
- Machining industry
- Metal Pipes industries
- Molds of glass bottles and tyres
Applicable equipment
- In sandblasting
Manual sandblasting machine
Automatic sandblasting machine
Open type sandblasting machine
Sandblasting machine room
Contact us to get DATASHEET and COA.
