Ideal Spherical Shape Ceramic Blasting Media B40 B60 B80 B100 For Metal Surface Finish

Minimum Order Quantity : 100KGS Price : Negotiable
Packaging Details : 25kg barrel+pallet or 2*12.5kg barrel + Pallet Delivery Time : Within 3-5 days after order Confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 3000 MTS Per Year
Place of Origin: China Brand Name: Zirnano
Certification: ISO9001,ISO14001,ROHS,SGS Model Number: B20-B505

Detail Information

Commodity: Ceramic Blasting Media Product Name: Ceramic Bead Blasting
Bulk Density: 2.3 G/cm3 True Gravity: 3.85 G/cm3
Particle Range: 0-850 μm Specification: B20-B505
Vicker Hardness: 700HV Sphericity: ≥ 80%
High Light:

Ideal Spherical Shape Ceramic Blasting Media

,

B80 B100 Ceramic Blasting Media

,

Metal Surface Finish Ceramic Blasting Media

Product Description

Ideal spherical shape Ceramic Blasting Media B40 B60 B80 B100 for Metal Surface Finish



1. Product Description of Ceramic Blasting Media

Ceramic beads is also called as ceramic microgranules with round and smooth grains,which is one

clean and high efficient blasting media.

Ceramic beads selects the high quality zircon sand as main materials,then fused in arc furnace under high temperature over 2000 degrees,finally made into different particle size through special technology by the process of cooling,screening,magnetic separation,inspection,packing.



2. Main Technical Data of Ceramic  Blasting Media

Commodity Name Ceramic Blasting Beads
Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Particle Size B20: 0.600-0.850mm
B30:0.425-0.600mm
B40:0.250-0.425mm
B60:0.150-0.300mm

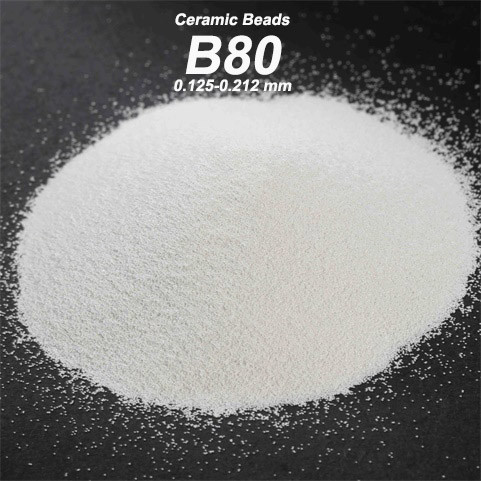

B80:0.125-0.212mm
B100:0.106-0.180mm
B120:0.063-0.125mm
B150:0.000-0.125mm
B170:0.045-0.090mm
B205: 0.000-0.063mm
B400: 0.030-0.063mm
B505: 0.010-0.030mm
Remark Special size can be customized accordingly.



3. Main Applications of Ceramic Blasting Media

Metal surface finish, such as aluminium alloys,magnesium alloys,titanium alloys,stainless stell etc.

Mould surface cleaning such as glass bottle mould,tire mould,mould of plastic products...

Pretreatment before electroplating,anodizing,painting...

Deburring for electronic products,heat treated work-pieces...

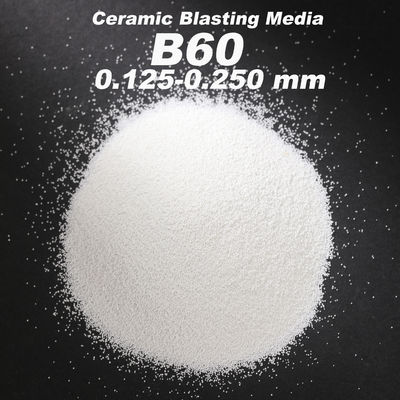

Ideal Spherical Shape Ceramic  Blasting Media B40 B60 B80 B100 For Metal Surface Finish 0



4. Why ceramic blasting media is especially suitable for metal surface finish?



Firstly,ceramic blasting media has the outstanding characteristics of high hardness,good sphericity&elasticity,

which can be rebounded in multi-angles in the blasting process;



Secondly,ceramic beads has a lower breakdown rate, which can restore the original color of the metal, finally

obtain one more uniform visual blasting effect;



Thirdly,ceramic beads can remove the tiny burrs on the surface of the workpiece, and make it more flatter,also

make small rounded corners at the junction of the work-pieces,finally improve its precision.



Fourthly,there is little dust generated in whole blasting process, which will provide one clean and bright working

condition,also keep the workers to escape from the danger of silicosis.



Fifthly, non-ferrous contamination in whole blasting process.



Therefore,ceramic beads is especially suitable for metal surface finish.



5. Package of Ceramic Blasting Media

25kg round barrel+ Pallet



25kg square barrel+Pallet



25kgs round barrel+ Wooden case



Special package can be customized accordingly.
