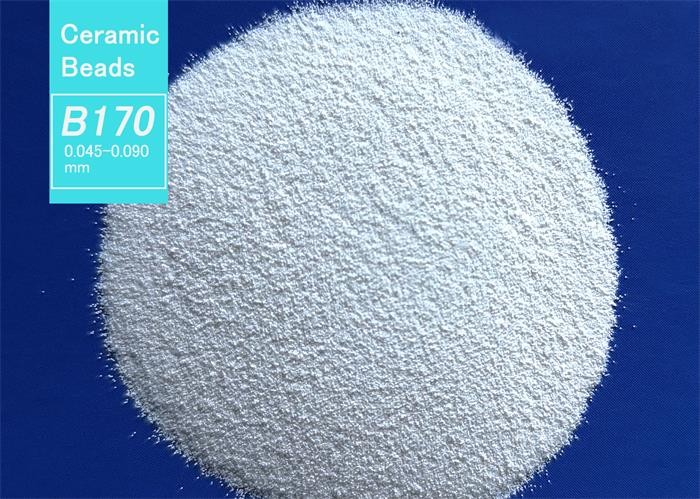

B170 45-90uM Ceramic Bead Abrasive Zirconia Ceramic Beads Blasting Media

Minimum Order Quantity : 100KGS Price : Negotiable
Packaging Details : 25kg barrel+Pallet Delivery Time : 3-5 days after order confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 3000mts per year
Place of Origin: China Brand Name: Zirnano
Certification: ISO14001,ISO9001,SGS,ROHS Model Number: B20-B505

Detail Information

Commodity: Ceramic Beads Product Name: Ceramic Blasting Media,Ceramic Sand
Usage: Surface Finish For Mold Cleaning,Metal Finish Color: White
Specification: B170: 45-90μm Bulk Density: 2.3g/cm3
True Gravity: 3.85g/cm3 Vicker Hardness: 700HV
High Light:

90uM Ceramic Bead Abrasive

,

Ceramic Bead Abrasive Zirconia

,

Zirconia Ceramic Beads Blasting Media

Product Description

Low energy Consumption Zirconia Ceramic Blasting Media B170 45-90μm for Iphone Surface Finish

1. Product Description of Ceramic Blasting Media

Ceramic blasting media is also called as ceramic beads Blasting,it selects the high quality zircon sand as

main raw material,then fused in electric furnace under high temperature over 2500 degrees,finally made

into tiny beads through special technology.

2. Main Technical Data of Ceramic Blasting Media



Commodity Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%

Ceramic Blasting Media

Processing Method Melting
Vickers Hardness ≥700 HV
True Specific Gravity ≥3.85 g/cm3
Bulk Density ≥2.3g/cm3
Usage Blasting Media



Particle Size
B20: 0.600-0.850mm B100: 0.106-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.150-0.300mm B205: 0.000-0.063mm
B80: 0.125-0.212mm B400: 0.030-0.063mm
Remark: Special specification can be customized



3. Mian Features of Ceramic Bead Blasting

No Ferrous contamination;

Low dust and no hidden dangers of siliciosis;

Low break-down rate,more consistent blasting effect;

High efficiency and low energy consumption.

4. Main Applications of Ceramic Bead Blasting

Surface cleaning for metallic parts and rubber parts,plastic parts;

Surface finish for light alloy such as magnesium alloy,titanium alloy,aluminium alloy etc.

Surface preparation before electroplating,painting etc.

B170 45-90uM Ceramic Bead Abrasive Zirconia Ceramic Beads Blasting Media 0



5. How to judge the quality of ceramic beads?

Seen from the appreance,good quality ceramic beads has higher whiteness and more uniform grain shape,

better sphericity.

It also has higher cleanliness,when take little quantity into the clean water,it will sink into the water quickly

and leave little dust on the water surface.

6. Why Choose us?

Professional manufacturer of Ceramic beads,annual output is over 2000mts;

Advanced equipments,professional technical staffs,high quality products;

Products are all traceable in the whole process from the raw material to the final products;

Stable supplier of Foxconn,Samsung Electronics,etc.
