No Dust Ceramic Beads Blasting Media Fine Frosted Surface 90μM No Metal Pollution

Minimum Order Quantity : 100KGS Price : Negotiation
Packaging Details : 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet Delivery Time : 5-10 days
Supply Ability : 1500mt per year
Place of Origin: Shanxi, China Brand Name: Zhengtong
Certification: ISO9001, ISO14001 Model Number: B20-B205

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

No Metal Pollution Ceramic Blasting Media

,

Fine Frosted Surface Ceramic Blasting Media

,

No Dust Ceramic Beads Blasting

Product Description

Ceramic beads for metal blast cleaning B150 size 63-125 μm easy to clean



1. DESCRIPTION



Ceramic beads blasting media is produces by electrofusion method with main raw materials of zirconia sand, and then blowing into different sizes of beads from B20 to B505. The unique internal crystal phase structure of ceramic beads ensures its strong hardness and impact resistance.

Ceramic beads is widely used as sandblasting abrasive media to create different roughness and cleanliness on the metal surfaces.

After ceramic sand blasting, the metal surface will form a very fine frosted surface, which is smooth and not reflective, increasing the three-dimensional and layered sense of the metal surface.



Ceramic beads is a green blast media, no dust, no metal pollution and easy to clean.



2.SPECIFICATION



Manufacturing process: Melting method



ZrO2 SiO2 Al2O3 Other
60-66%, 25-30% max. 7-13% max. 5-8%



Color Bulk Density True Specific Density Vickers Hardness
White 2.3g/cm3 3.85g/cm3 700 HV





Grit size B20 B30 B40 B60 B80 B100 B120
Microns μm 600-850 425-600 250-425 125-250 180-250 125-180 63-125
Grit size B150 B170 B205 B400 B505

Special sizes

can be customized

Microns μm 53-106 45-90 0-63 30-63 0-63
Grit size Z850 Z600 Z425 Z300 Z210 Z150 Z100
Microns 850-1180 600-850 425-600 300-425 210-300 150-210 100-150



3. FEATURES



(1) Does not contaminate the metal surface of parts;

(2) After the treatment, the quality of the components is uniform and stable, and the service life is significantly prolonged;

(3) The specific gravity is light, the sphericity is high, and the parts are never damaged;

(4) Low loss, long service life, and consumption is more than 80% lower than that of glass beads;

(5) Reduce dust, improve working environment, reduce energy consumption and operating costs.



4. APPLICATION



Electronic products: computer, mobile phone, camera, tablet, power bank, USB data cable and other metal appearance and built-in parts, surface finishing treatment.

Mechanical parts: The overall appearance of the machine is sandblasted, polished, and finished to restore the true color of the metal and enhance the visual effect and texture.

Metal sheet: polishing of metal parts, deburring, descaling, rust removal, degreasing, pre-spraying treatment.

Pipes: copper pipes, steel pipes and other metal pipes, the inner and outer walls are cleaned and polished.

Moulds: Glass bottles, tires and other moulds are cleaned and rust removed, dirt and impurities are cleaned.



Typical applications of ceramic beads for reference:



B20 Pipes cleaning
B30 Blast cleaning to remove oxide layer of castings
B40 Glass bottle molds blast cleaning
B60 Sandblast cleaning of inner and outer walls of precision steel pipes
B80 Watch case sandblast finishing
B120 Aluminium profile sandblasting, USB charging head blasting finish
B170 Laptop shell sandblasting finish
B205 Mobile phone middle frame blast finishing; medical artificial joints



No Dust Ceramic Beads Blasting Media Fine Frosted Surface 90μM No Metal Pollution 0

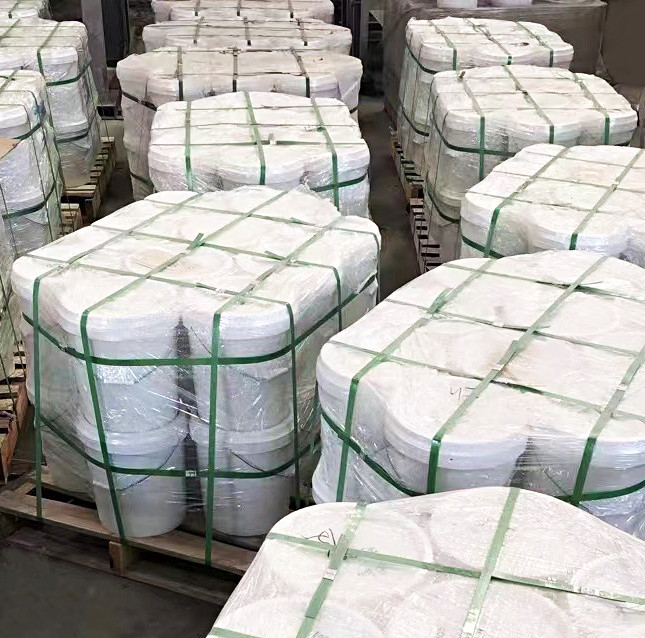

5. CERAMIC BEADS PACKAGE



25 kg barrels on pallets, 500-1000kgs per pallet
