B30 Ceramic Blasting Media For Pipe Cleaning In Sandblasting Machine

Minimum Order Quantity : 100KGS Price : Negotiation

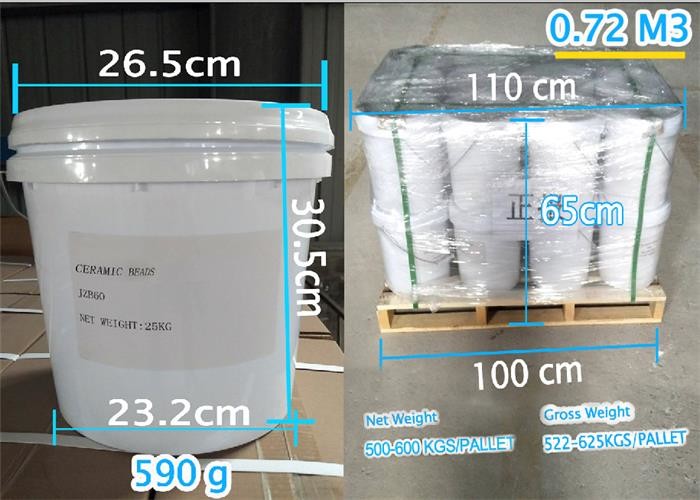

Packaging Details : 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet Delivery Time : 5-10 days
Supply Ability : 1500mt per year
Place of Origin: Shanxi, China Brand Name: ZHENGTONG
Certification: ISO9001, ISO14001 Model Number: B30

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

zirblast ceramic media

,

B30Ceramic Blasting Media

,

ceramic bead abrasive Media

Product Description

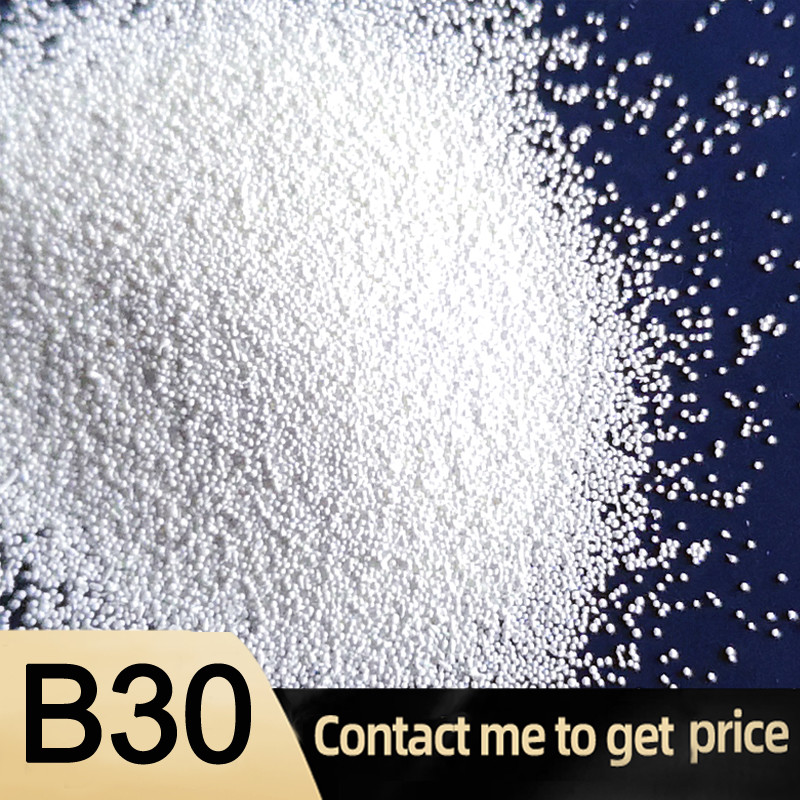

Ceramic Beads B30 applicable for pipe cleaning in sandblasting machine





DESCRIPTION OF CERAMIC BEADS



The ceramic beads is made of zircon sand imported from Australia as the main material, adopts advanced technology formula, and is smelted and blown into fine beads after smelting in high temperature above 2000 degrees. With high hardness and surface smoothness, it can be recycled and reused repeatedly, reducing the number of refills. Wide range of particle size from B20 to B505, strong optionality, and can be matched with various types of sandblasting machines.



SPECIFICATION OF CERAMIC BEADS





Chemical Index ZrO2 SiO2 Al2O3
60-65% 25-30% 7-13%
Typical Value 62.20% 26.10% 9.05%
Bulk Density 2.3g/cm3
Specific Density 3.85g/cm3
Vickers Hardness 700HV



Sizes

B20 B30 B40 B60
600-850µm 425-600µm 0250-425µm 125-250µm
B80 B120 B170 B205
180-250µm 63-125µm 45-90µm 0-63µm



Special sizes available against clients’ requirement.







FEATURES OF CERAMIC BEADS



Our ceramic beads are first class in China and have the following characteristics:



1) Imported raw materials, high quality ceramic beads

The use of Australia imported high-quality raw materials to produce ceramic beads, high hardness, good elasticity, longer service life.



2) Independent research and development

Product testing equipment is complete, with a complete independent intellectual property rights, and in Beijing and Shijiazhuang has an independent laboratory and university cooperation laboratory.

More importantly, we have many years of continuous improvement of the R & D team.



3. Better cleanliness and more concentrated size

We have our own particle size distribution standards, more concentrated particles, can be screened according to customer requirements.



4. High hardness, long life, good elasticity

Ceramic beads have high hardness and small deformation.

The ceramic beads hardness up to 700HV -800HV ensures that the ceramic beads can be used for shot peening of high strength and high strength structural parts. Small deformation ensures that the shape of the projectile does not change in the process of impact. The sphericity of the ceramic beads improves the stability of the quality of the shot peening parts.







APPLICATION OF CERAMIC BEADS



It is often used for sandblasting cleaning of castings and forging parts,  inner and outer walls of pipes, metal parts deblur.and molds cleaning.
At the same time, it can also be used for sandblasting cleaning for below cases: Cleaning rust layer on metal, residual salt and oxide layer on the surface of heat-treated parts, oxide layer on the surface of rolling parts, oxide layer on the surface of forging parts, oxide layer on the surface of welding parts, molding sand and oxide layer on the surface of castings, machine tool The residual dirt and tiny burrs on the surface of the added parts, the surface of the old parts, etc. are treated to remove the surface adhesion layer and reveal the true color of the substrate.



B30 Ceramic Blasting Media For Pipe Cleaning In Sandblasting Machine 0

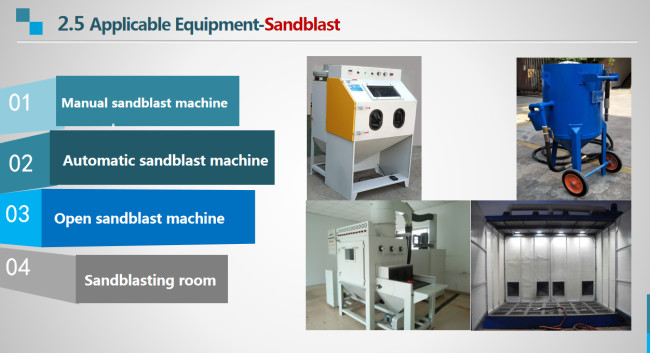

APPLICABLE EQUIPMENT OF CERAMIC BEADS



In sandblasting



Manual sandblasting machine

Automatic sandblasting machine

Open type sandblasting machine

Sandblasting machine room





CONTACT US



Besides ceramic beads, we also have other blasting media available



Glass beads, steel shot, aluminum oxide grits etc.
