60HRC Ceramic Beads Blasting Media B20 For Glass Bottle Molds Cleaning

Minimum Order Quantity : 100KGS Price : By negotation
Packaging Details : 25kg barrel+ Pallet or 2*12.5kg barrel+Carton+Pallet Delivery Time : 3-5 days after order confirmed
Payment Terms : L/C, , D/P, T/T, Western Union, MoneyGram,Paypal Supply Ability : 3000 mts per year
Place of Origin: Shanxi Brand Name: Zirnano
Certification: ISO9001,IS014001,ROHS,SGS Model Number: B20-B505

Detail Information

Commodity: Ceramic Blasting Media Product Name: Ceramic Beads
Usage: Blasting Media Color: White
Material: ZrO2 60-66%,SiO2 25-30%,Al2O3 7-13% Hardness: 700HV Or 60 HRC
Bulk Density: 2.3g/cm3 True Gravity: 3.85g/cm3
Specification: B20-B505
High Light:

60HRC Ceramic Beads Blasting Media

,

SiO2 Ceramic Beads Sandlasting Media

,

Al2O3 Ceramic Blasting Media

Product Description

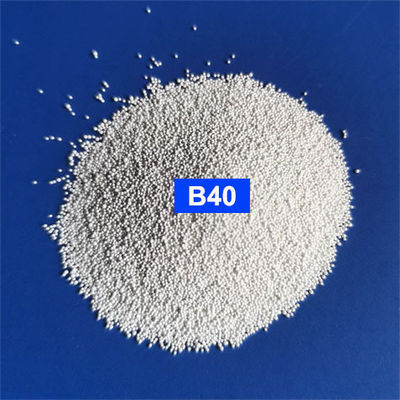

60HRC Ceramic Beads Blasting Media B20 B30 B40 B60 for Glass-bottle Molds Cleaning

1. Product Description of Ceramic Beads Blasting Media



Ceramic beads is one round solid blasting media,it selects the high-quality zircon sand as main raw

material, then fused in electronic furnace at high temperature over 2000 degrees,then finally made into

different size.



Ceramic beads has similar chemical composition as the one of zirconium silicate beads,while they are

ifferent,since ceramic beads is made by melting process which contains 60-66% ZrO2,25-30% SiO2,

7-13% Al2O3,used in blasting application;while zirconium silicate beads contains min 65% ZrO2 and

25-30% SiO2,used as grinding application.



Ceramic beads is one clean and high efficient blasting media.



2. Main Technical Data of Ceramic Beads

Commodity Main Chemical Index Main Physical Index

Ceramic Bead Blasting
ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Al2O3 7-13% Vickers Hardness: 700 kg /mm2
Particle Size
(Ceramic Bead Blasting)
B20: 0.600-0.850mm B120: 0.063-0.125mm
B30: 0.425-0.600mm B150:0.000-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.150-0.300mm B205: 0.000-0.063mm
B80: 0.125-0.212mm B400: 0.030-0.063mm
B100: 0.106-0.180mm B505: 0.010-0.030mm
Remark: Special specification can be customized



3. Main Applications of Ceramic Beads

Surface finish for 3C metal surface,its built-in parts and accessories;

Surface cleaning for plastic parts,rubber parts,electronic parts...

Pre-treatment before electroplating, anodizing,coating...

Surface finish for aluminium parts,stainless steel parts,aluminium alloys,magnesium alloys,titanium alloys...



4. Blasting Effect of Ceramic Beads



60HRC Ceramic Beads Blasting Media B20 For Glass Bottle Molds Cleaning 0

5. Main Package of Ceramic Beads

25kg Round Barrel+ Pallet;



25kg Square Barrel+ Pallet;



25kg Round Barrel+ Woodencase.



Special Package can be customized accordingly.
