B100 B120 B150 B170 B205 Ceramic Bead Abrasive For Medical Equipments

Minimum Order Quantity : 100KGS Price : By negotation
Packaging Details : 25kg barrel+ Pallet or 2*12.5kg barrel+Carton+Pallet Delivery Time : 3-5 days after order confirmed
Payment Terms : L/C, , D/P, T/T, Western Union, MoneyGram,Paypal Supply Ability : 3000 mts per year
Place of Origin: Shanxi Brand Name: Zirnano
Certification: ISO9001,IS014001,ROHS,SGS Model Number: B20-B505

Detail Information

Commodity: Ceramic Blasting Media Product Name: Ceramic Beads
Usage: Blasting Media Color: White
Material: ZrO2 60-66%,SiO2 25-30%,Al2O3 7-13% Hardness: 700HV
Bulk Density: 2.3g/cm3 True Gravity: 3.85g/cm3
Specification: B20-B505
High Light:

B205 Ceramic Bead Abrasive

,

B100 Ceramic Bead Abrasive

,

B120 Ceramic Bead Abrasive

Product Description

Ceramic Blasting Media B100 B120 B150 B170 B205 for Medical Equipments

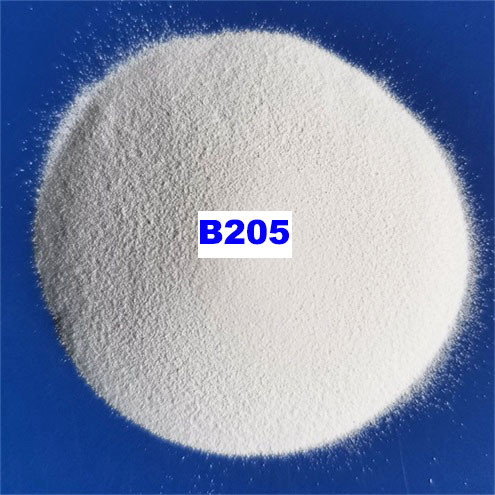

1. Product Description of Ceramic Beads



Ceramic beads is one clean and high efficient blasting media,it selects the high-quality zircon sand as

main raw material, then fused in electronic furnace at high temperature over 2000 degrees,then finally

made into different size from B20(0.600-0.850mm) to B505(0.010-0.030mm).



Ceramic beads is one round solid beads,it can match most blasting equipment,it has the main features of

high hardness,smooth surface,high strength,good toughness,especially suitable for metal surface finish.



2. Main Technical Data of Ceramic Beads



Commodity Name Ceramic  Blasting Media,Ceramic Beads
Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Physical Index Vickers Hardness ≥700HV
Bulk Density ≥2.3g/cm3
True Gravity ≥3.85g/cm3
Ceramic Blasting Media B20: 0.600-0.850mm B120:0.063-0.125mm
B30:0.425-0.600mm B150:0.000-0.125mm
B40:0.250-0.425mm B170:0.045-0.090mm
B60:0.150-0.300mm B205:0.000-0.063mm
B80:0.125-0.212mm B400:0.030-0.063mm
B100:0.106-0.180mm B505:0.010-0.030mm
Ceramic Shot Peening Z100: 100-150μm Z150: 150-210μm
Z210: 210-300μm Z300: 300-425μm
Z425:425-600μm Z600: 600-850μm
Z850: 850-1180μm /
Remark: Special specification can be customized.





3. Main Applications of Ceramic Beads



Surface finish for 3C metal surface,its built-in parts and accessories;



Surface cleaning for plastic parts,rubber parts,electronic parts...



Pretreatment before electroplating, anodizing,coating...



Surface finish for aluminium parts,stainless steel parts,light alloys...



Surface finish for light alloys such as golf head, artificial joint...





4. Precautions for using ceramic beads



When using ceramic beads for the first time, please open 1/3 to 1/2 of the dust collector,

Because ceramic beads need to recover wind during the sandblasting process. It is not easy to be breakdown

and the non-borken beads will keep its original properties,people do not need to refuel it frequently,that is

different from the one of glass beads.



5. Applicable Equipments

B100 B120 B150 B170 B205 Ceramic Bead Abrasive For Medical Equipments 0
