700HV Ceramic Blasting Media Zirconium Silicate Beads JZB40 JZB60 JZB120 Metal Surface Finish
Product Details:
| Place of Origin: | Shanxi |
| Brand Name: | Zirnano |
| Certification: | ISO9001,IS014001,ROHS,SGS |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | By negotation |
| Packaging Details: | 25kg barrel+ Pallet or 2*12.5kg barrel+Carton+Pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, , D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 3000 mts per year |
|
Detail Information |
|||
| Commodity: | Ceramic Blasting Media | Product Name: | Ceramic Bead Blasting |
|---|---|---|---|
| Shape: | Round Solid Beads | Color: | White |
| Material: | ZrO2 60-66%，SiO2 25-30%,Al2O3 7-13% | Hardness: | 700HV |
| Bulk Density: | 2.3g/cm3 | True Gravity: | 3.85g/cm3 |
| Free Sample: | Available | Sample Quantity: | 500g |
| High Light: | 700HV Ceramic Blasting Media,Surface Finish Ceramic Blasting Media,JZB40 Zirconium Silicate Beads |
||
Product Description
700HV Ceramic Blasting Media Zirconium Silicate Beads JZB40 JZB60 JZB120 for Metal Surface Finish

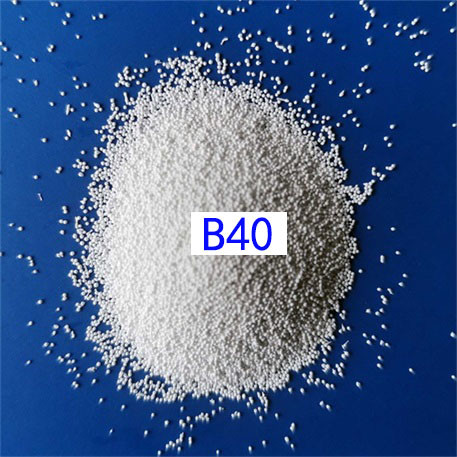

1. Product Description of Ceramic Beads
Ceramic Beads selects the high quality zircon sand as main material,then fused in high temperature over
2000 degrees,then made into different size by the process of cooling,screening,electromagnetic,packing,
inspection...
Ceramic beads has good impact strength and high toughess as well as good elasticity,which is especially
suitable for surface finish of metal products.
It has wide range of particle size, which can be matched with most blasting machines.
2. Main Technical Data of Ceramic Blasting Media
| Commodity Name | Chemical Index | Physical Index |
Ceramic Beads |
ZrO2 60-66% SiO2 25-30% Al2O3 7-13% |
Vickers Hardness ≥700 HV Bulk Density≥2.3g/cm3 True Gravity: 3.85g/cm3 Process: Melting |
| Particle Size for Ceramic Blasting Media | ||
| B20: 600-850μm | B120: 63-125μm | |
| B30: 425-600μm | B150:0-125μm | |
| B40:250-425μm | B170: 45-90μm | |
| B60:150-300μm | B205: 0-63μm | |
| B80:125-212μm | B400: 30-63μm | |
| B100:106-180μm | B505: 10-30μm | |
| Particle Size for Ceramic Shot Peening | ||
| Z100: 100-150μm | Z150: 150-210μm | |
| Z210: 210-300μm | Z300: 300-425μm | |
| Z425:425-600μm | Z600: 600-850μm | |
| Z850: 850-1180μm | ./ | |
| Remark: Special specification can be customized. | ||
3. Main Applications for Ceramic Beads
For Sandblasting Applications:
Surface finish for metal parts,plastic parts,magnesium alloy,titanium alloy,stainless steel parts...
For Shot Peening Applications:
Shot Peening in aviation, automotive and other industrial manufacturing field.
4. The comparation between ceramic blasting Media and Ceramic Shot peening
Ceramic blasting media has wide range of particle size from 10-850μm,while ceramic shot peening has narrow
particle size from 100-1180μm;
Ceramic shot peening has higher requirements of sphericity(Width/Length ratio≥ 0.80),while sphericity(Width/Length
ratio≥ 0.70) for ceramic blasting media;
Different applications for ceramic blasting media and ceramic shot peening.

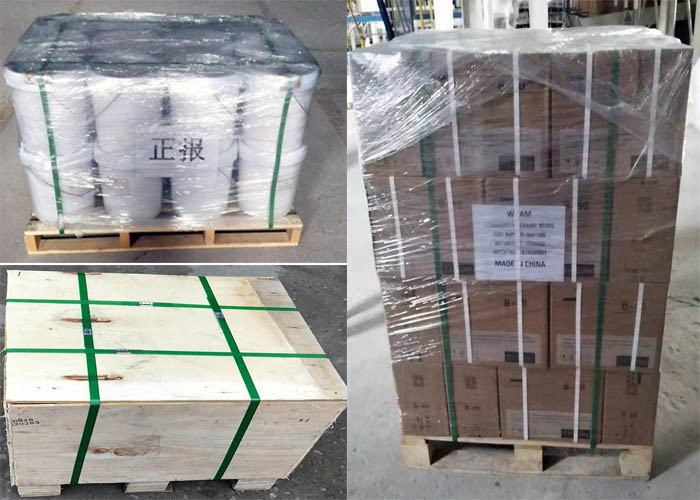

5. Main Package of Ceramic Beads
25kgs round barrels+ Pallet
2*12.5kgs Barrels+ Carton+ Pallet
25kgs barrels+ Wooden Box
Special Package can be customized accordingly.
