B120 B150 B170 B205 B400 Ceramic Blasting Media Zirconium Oxide Beads For 3C Products
Product Details:
| Place of Origin: | Shanxi |
| Brand Name: | Zirnano |
| Certification: | ISO9001,IS014001,ROHS,SGS |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | By negotation |

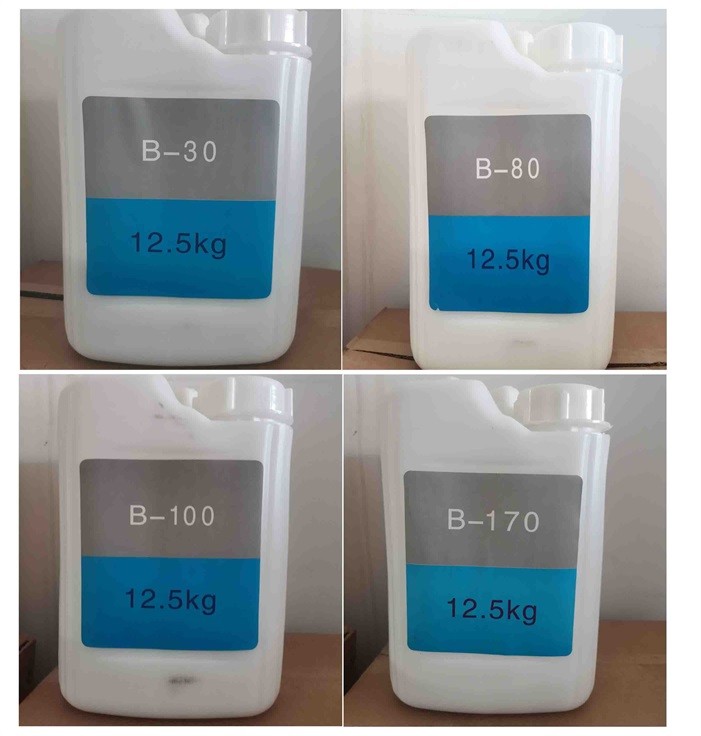

| Packaging Details: | 25kg barrel+ Pallet or 2*12.5kg barrel+Carton+Pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, , D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 3000 mts per year |
|
Detail Information |
|||
| Commodity: | Ceramic Blasting Media | Product Name: | Ceramic Beads,Zirconia Beads |
|---|---|---|---|
| Shape: | Round Solid Beads | Color: | White |
| Material: | ZrO2 60-66%，SiO2 25-30%,Al2O3 7-13% | Hardness: | 60HRC Min |
| Bulk Density: | 2.3g/cm3 | True Gravity: | 3.85g/cm3 |
| Size: | B20-B505 | Free Sample: | Available |
| High Light: | B400 Ceramic Blasting Media,B205 Ceramic Blasting Media,B120 Zirconium Oxide Beads |
||
Product Description
Ceramic Blasting Media Zirconium Oxide Beads B120 B150 B170 B205 B400 for 3C Products
1. Product Descroption of Ceramic Blasting Media
Ceramic beads is also called as zirconium sand, it selects the high quality zircon sand as main material,
then fused in electronic furnace under high temperature over 2000 degrees,it is one clean and high efficiency
blasting media,widely used in blasting application for metal,rubber,plastic parts.
2. Main Technical Data of Ceramic Beads
| Commodity Name | Ceramic Beads Blasting Media | |
| Chemical Index | ZrO2 | 60-66% |
| SiO2 | 25-30% | |
| Al2O3 | 7-13% | |
| Physical Index | Vickers Hardness | ≥700HV |
| Bulk Density | ≥2.3g/cm3 | |
| True Gravity | ≥3.85g/cm3 | |
| Specification | B20: 0.600-0.850mm | B120:0.063-0.125mm |
| B30:0.425-0.600mm | B150:0.000-0.125mm | |

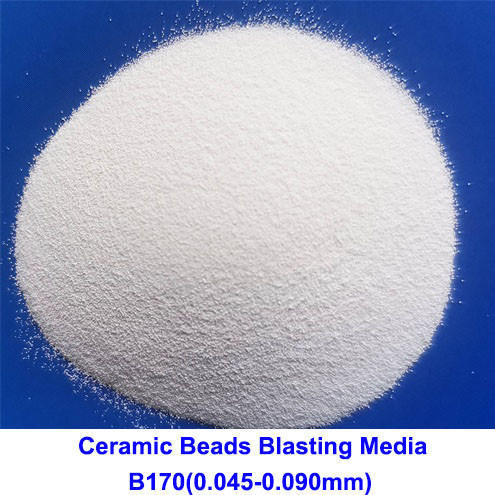

| B40:0.250-0.425mm | B170:0.045-0.090mm | |
| B60:0.150-0.300mm | B205:0.000-0.063mm | |
| B80:0.125-0.212mm | B400:0.030-0.063mm | |
| B100:0.106-0.180mm | B505:0.010-0.030mm | |
| Remark:Specifical Specification can be customized | ||
3. Main Applications of Ceramic Beads Blasting Media
Surface finish for 3C products,its built-in parts and accessories;
Surface finish for heat-treated parts,machined parts,casting parts...
Surface cleaning for glass-bottle molds,tire molds...
Surface pretreatment before electroplating,anodizing...
Surface finish for outdoor fitness equipments,glof head,medical instruments...
4. Why ceramic beads is gradually replacing ceramic beads in blasting application?
Ceramic beads is one round solid beads with high hardness,medium density and dense crystal structure,
it is not easy to be broken in the blasting process,so the beads in the blasting machine will almost keep
the same quantity and its original property,then it will achieve more consistent blasting effect and improve
the blasting efficiency.
While glass beads is easy to be broken into ash,providing one dusty working condition,so it is gradually
replaced by ceramic beads where one clean and high efficiency blasting condition is required.
In that case,how to choose one right specification of ceramic beads to replace the original glass beads is
very important,since the particle size of different beads will bring different impact and roughness in blasting
process,It is suggested to choose one smaller ceramic beads since ceramic beads has higher density and
impact strength compared with glass beads for treating one same work-piece.
5. Why choose us?
Professional manufacturer of ceramic beads blasting media,annual output over 3000mts
Product can be traced from the raw material to the final products
All the products will be sampled again before delivery even for one small sample
Quick response and prompt delivery
Stable supplier of Foxconn, Samsung Electronics....
