JZB60 JZB80 JZB100 JZB120 Ceramic Blasting Media Zirconia Sand For Metal Parts
Product Details:
| Place of Origin: | Shanxi |
| Brand Name: | Zirnano |
| Certification: | ISO9001,IS014001,ROHS,SGS |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | By negotation |
| Packaging Details: | 25kg barrel+ Pallet or 2*12.5kg barrel+Carton+Pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, , D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 3000 mts per year |
|
Detail Information |
|||
| Commodity: | Ceramic Blasting Media | Product Name: | Ceramic Beads,Zirconia Sand |
|---|---|---|---|
| Shape: | Spherical | Color: | White |
| Material: | ZrO2 60-66%，SiO2 25-30%,Al2O3 7-13% | Hardness: | 60HRC Min |
| Bulk Density: | 2.3g/cm3 | True Gravity: | 3.85g/cm3 |
| Size: | B20-B505 | Free Sample: | Available |
| High Light: | JZB120 Ceramic Blasting Media,JZB100 Ceramic Blasting Media,Ceramic Blasting Media Zirconia Sand |
||
Product Description
Ceramic Blasting Media Zirconia Sand JZB60 JZB80 JZB100 JZB120 for Metal Parts and Light Alloy

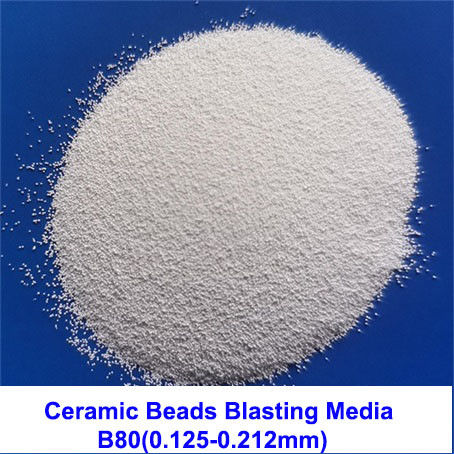

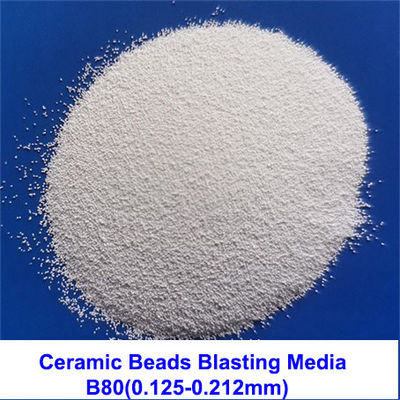

1. Product Description of Ceramic Beads Blasting Media
Ceramic Beads selects the high quality imported zircon sand as main material,then fused in
Electronic furnace under high temperature over 2000 degrees by unique and special process.
It has good impact strength,high toughness, high hardness and good surface smoothness,especially suitable
for surface strengthening in the production and maintenance of metal parts, as well as shot peening of light
alloy parts.
Ceramic beads has wide particle size range from B20(0.600-0.850mm) to B505(0.010-0.030mm), which can
be matched with most models of sandblasting machines,no matter it is manual sandblasting machine,
automatic sandblasting machine or sandblasting room.
2. Main Technical Data of Ceramic Beads
| Commodity Name | Ceramic Beads Blasting Media | |
| Chemical Index | ZrO2 | 60-66% |
| SiO2 | 25-30% | |
| Al2O3 | 7-13% | |
| Physical Index | Vickers Hardness | ≥700HV |
| Bulk Density | ≥2.3g/cm3 | |
| True Gravity | ≥3.85g/cm3 | |
| Specification | B20: 0.600-0.850mm | B120:0.063-0.125mm |
| B30:0.425-0.600mm | B150:0.000-0.125mm | |
| B40:0.250-0.425mm | B170:0.045-0.090mm | |
| B60:0.150-0.300mm | B205:0.000-0.063mm | |
| B80:0.125-0.212mm | B400:0.030-0.063mm | |
| B100:0.106-0.180mm | B505:0.010-0.030mm | |
| Remark:Specifical Specification can be customized | ||
3. Main Applications of Ceramic Blasting Media
Manufacturing and maintenance of titanium alloys for aviation industry.
Surface cleaning and maintenance of mold industry
Surface strengthening and fine art decoration in metal processing industry
Deburring for Electronic circuit board in Electronic industry
Anti fatigue and strengthening treatment of shock absorber spring and turbide blade in automobile industry
Rust-removal,oxide-scale removal for Renovation of metal workpieces
4. The Precautions for Using Ceramic Beads
The worker is required to wear protective clothes and eye masks in whole process of sand blasting, since
the nozzle will generate huge pressure, and the ceramic sand particles will rebound due to the impact of
the surface.
In order to achieve ideal blasting effect, it is required to inspect if there is any foreign matters and floating dust
on the treated-workpieces before blasting.
Trial blasting is required before continuously mass blasting

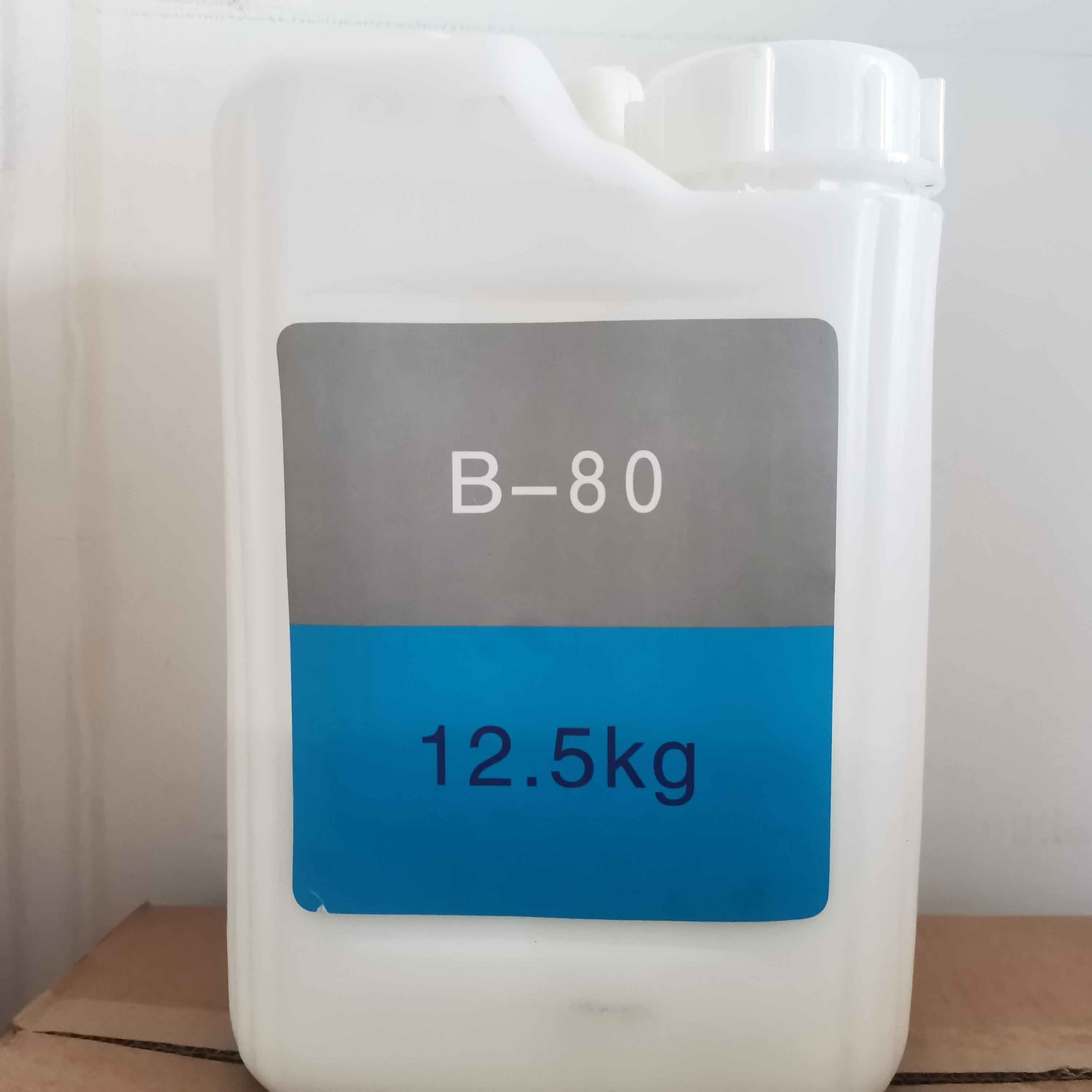

5. Main Package of Ceramic Beads
