60HRC Mircoblast Zirconia Beads B120 B170 B205 B400 B505 For Aluminium Parts

Minimum Order Quantity : 100KGS Price : By negotation
Packaging Details : 25kg barrel+ Pallet or 2*12.5kg barrel+Carton+Pallet Delivery Time : 3-5 days after order confirmed
Payment Terms : L/C, , D/P, T/T, Western Union, MoneyGram,Paypal Supply Ability : 3000 mts per year
Place of Origin: Shanxi Brand Name: Zirnano
Certification: ISO9001,IS014001,ROHS,SGS Model Number: B20-B505

Detail Information

Commodity: Ceramic Blasting Media Product Name: Ceramic Beads,Zirconia Sand
Shape: Round Solid Beads Color: White
Material: ZrO2 60-66%,SiO2 25-30%,Al2O3 7-13% Hardness: 700HV Min
Bulk Density: 2.3g/cm3 True Gravity: 3.85g/cm3
Size: B20-B505 Loading Port: Xingang,China Or Any China Main Port
High Light:

60HRC Mircoblast Zirconia Beads


B120 Mircoblast Zirconia Beads


B170 Mircoblast Zirconia Beads

Product Description

60HRC Zirconia Mircoblast Beads Ceramic Blasting Media B120 B170 B205 B400 B505 for Aluminium Parts

1. Product Description of Ceramic Bead Blasting Media

Ceramic Blasting Media is also called as ceramic beads,zirconia sand, it is one clean blasting media

with extremely fine micro-structure, having the outstanding features of good impact strength and toughness.


It is especially suitable for metal surface finish to delivery one smooth and uniform blasting effect.


Ceramic Beads has the medium density,it is able to make up the upper and lower limit sandblasting blind

area compared with glass beads and steel shot. It can replace glass beads where one clean working

condition is required,also replace steel shot where one ferrous contamination is not allowed.


In a word,it is one popular blasting media in many applications.

2. Main Technical Data of Ceramic Bead Blasting Media

Commodity Name Chemical Index Physical Index

Ceramic Bead Blasting Beads
ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Vickers Hardness ≥700 HV
Bulk Density≥2.3g/cm3
True Gravity: 3.85g/cm3
Process: Melting
Particle Size
B20: 0.600-0.850mm B120:0.063-0.125mm
B30:0.425-0.600mm B150:0.000-0.125mm
B40:0.250-0.425mm B170:0.045-0.090mm
B60:0.150-0.300mm B205:0.000-0.063mm
B80:0.125-0.212mm B400:0.030-0.063mm
B100:0.106-0.180mm B505:0.010-0.030mm


3. Main Applications of Ceramic Beads

Surface Cleaning for glass,plastic ,rubber and die casting parts;

Surface finish for light metal such as aluminium alloy,magnesium alloy,titanium alloy;

Surface Preparation before electroplating& anodizing;

Surface finish for parts of aluminium,stainless steel...


4. Precautions for Using Ceramic Beads

When using ceramic beads for the first time, please kindly open 1/3 to 1/2 vest of dust collector,

Since ceramic beads need the wind to be recycled in the blasting process.

Also Please kindly note that it can be multiple recycled.

The service life of ceramic beads is about 20-30 times than the one of glass beads.

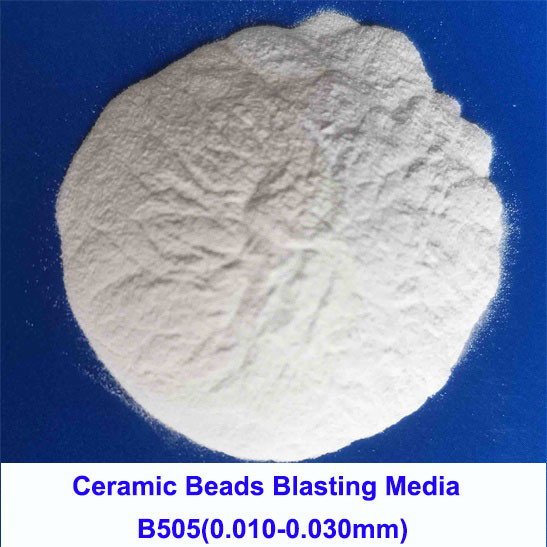

5. Blasting Effect of Ceramic Beads B505 Blasting effect

60HRC Mircoblast Zirconia Beads B120 B170 B205 B400 B505 For Aluminium Parts 0
