JZB120 Ceramic Beads Spherical Sandblasting media selling in vietnam market
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | JZB120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |

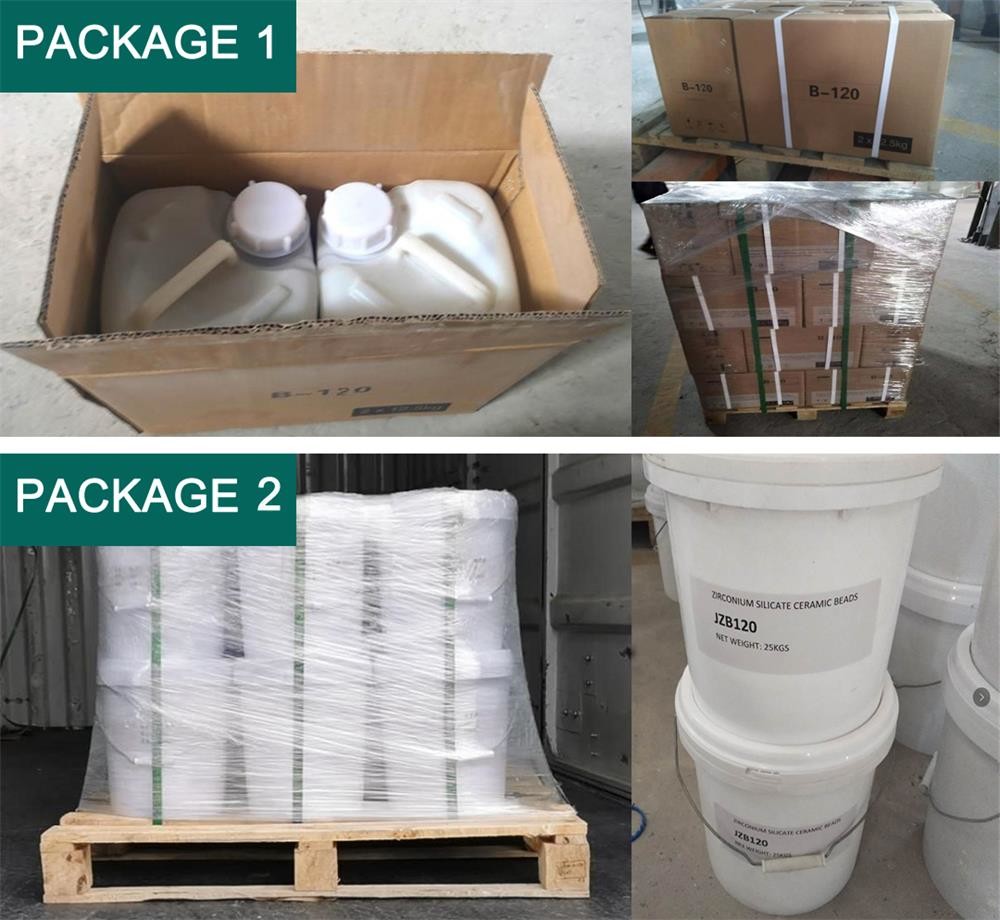

| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | JZB120 Ceramic Beads,Sandblasting Ceramic Beads,JZB120 |
||
Product Description

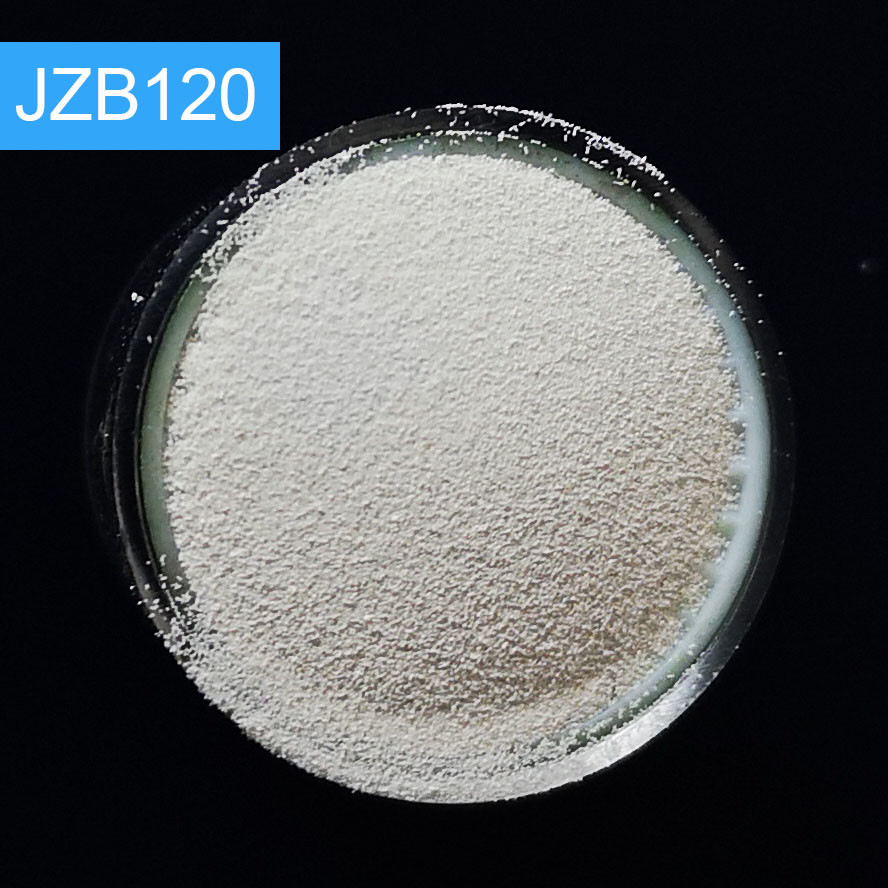

Ceramic Beads JZB120 selling in vietnam market
DESCRIPTION OF CERAMIC BEADS JZB120
Ceramic bead is a spherical sandblastingmedia, with high mechanical strength and high wear rate and good consistency of roundness and chemical stability.
The ceramic bead density produces a higher impact velocity, making it an ideal choice for deburring and sandblasting.
Its good impact resistance makes it produce very little dust.
The ceramic sandblasting process produces a smooth and bright satin finish.
Applicable machines are manual and automatic sandblasting machine, open Sand blasting machine, sand blasting machine room, shot blasting equipment, etc.
SPECIFICATION OF CERAMIC BEADS JZB120
| Chemical Index | ZrO2 | SiO2 | Al2O3 |
| 60-65% | 25-30% | 7-13% | |
| Typical Value | 62.20% | 26.10% | 9.05% |
| Bulk Density | 2.3g/cm3 | ||
| Specific Density | 3.85g/cm3 | ||
| Vickers Hardness | 700HV | ||
Sizes
| B20 | B30 | B40 | B60 |
| 600-850µm | 425-6000µm | 0250-425µm | 125-250µm |
| B80 | B120 | B170 | B205 |
| 180-250µm | 63-125µm | 45-90µm | 0-63µm |
Special sizes available against clients’ requirement.
PRODUCTION PROCESS OF CERAMIC BEADS JZB120
FEATURES OF CERAMIC BEADS JZB120
Our ceramic beads are first class in China and have the following characteristics:
1) Imported raw materials, high quality ceramic beads
The use of Australia imported high-quality raw materials to produce ceramic beads, high hardness, good elasticity, longer service life.
2) Independent research and development
Product testing equipment is complete, with a complete independent intellectual property rights, and in Beijing and Shijiazhuang has an independent laboratory and university cooperation laboratory.
More importantly, we have many years of continuous improvement of the R & D team.
3. Better cleanliness and more concentrated size
We have our own particle size distribution standards, more concentrated particles, can be screened according to customer requirements.
4. High hardness, long life, good elasticity
Ceramic beads have high hardness and small deformation.
The ceramic beads hardness up to 700HV -800HV ensures that the ceramic beads can be used for shot peening of high strength and high strength structural parts. Small deformation ensures that the shape of the projectile does not change in the process of impact. The sphericity of the ceramic beads improves the stability of the quality of the shot peening parts.
APPLICATION OF CERAMIC BEADS JZB120
- In Sandblasting
1) 3C products - Sandblasting Finishing
Alloy shell, middle frame and built-in parts of computers, mobile phones, cameras, etc. - sandblasting finishing
Clean burrs to form film-light decorative or fine reflective surface, on alloy workpiece such as mobile phone to achieve different reflection or matte.
2) Kitchen Industry-Sandblasting finishing
Stainless steel cutlery and kitchen utensils sandblasting finishing
3) Golf club - Sandblasting finishing
Golf club & ball head alloy surface treatment Sandblasting finishing
4) Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning
Clean all the dirt on the surface of the alloy workpiece, micro burrs, improve the flatness and smoothness of the workpiece, and expose to uniform metallic color, achieving smooth and non-reflective requirements on surface.
5) Pipeline - Sandblast Cleaning
Metal pipes such as copper pipes and steel pipes are cleaned and polished on the inner and outer walls.
6) Molds - Sandblast cleaning
Cleaning of molds of glass bottles, tires, etc., rust, dirt and impurities.
7) Electroplating, painting, anode-Surface Pretreatment
Electroplating, painting, anode, Teflon, rubber, plastic, traversing, metal, spray welding, gold plating, titanium plating, etc., to remove dirt and increase product surface adhesion.
8) Hardware parts - Sandblasting to improve lubrication conditions
It can produce uniform and fine uneven surface on the surface of the part, so that the lubricating oil can be stored, improve the lubrication condition and reduce the noise.
- In shot peening
1) Aerospace industry-Shot Peening
Suitable for aerospace engine components, aircraft landing gear, gear transmissions, aero-engine blades, aircraft wing-shot peening
2) Automotive industry-Sandblasting reinforcement/ Shot Peening
Suitable for gearbox gears, automotive aluminum hubs, piston components/shock absorbers, engine crankshaft sandblasting reinforcement/shot peening
3) Machinery, Medical Instrument - Sandblast finishing/shot peening
The overall sandblasting and polishing, finishing, restore the natural color of the metal, enhance the visual effect and texture, and also shot peening reinforcement to improve its worklife.
APPLICABLE EQUIPMENT OF CERAMIC BEADS JZB120
- In sandblasting
Manual sandblasting machine
Automatic sandblasting machine
Open type sandblasting machine
Sandblasting machine room
- In shot peening /shot blasting
Pneumatic shot blasting machine
Centrifugal shot blasting machine
CNC shot peening equipment
Wet shot blasting equipment
CONTACT US
Besides ceramic beads, we also have other blasting media available
Glass beads, steel shot, aluminum oxide grits etc.
