Solid Round B120 0.125mm Ceramic Blasting Beads For Aluminium Profile
Product Details:
| Place of Origin: | China |
| Brand Name: | ZIRNANO |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |

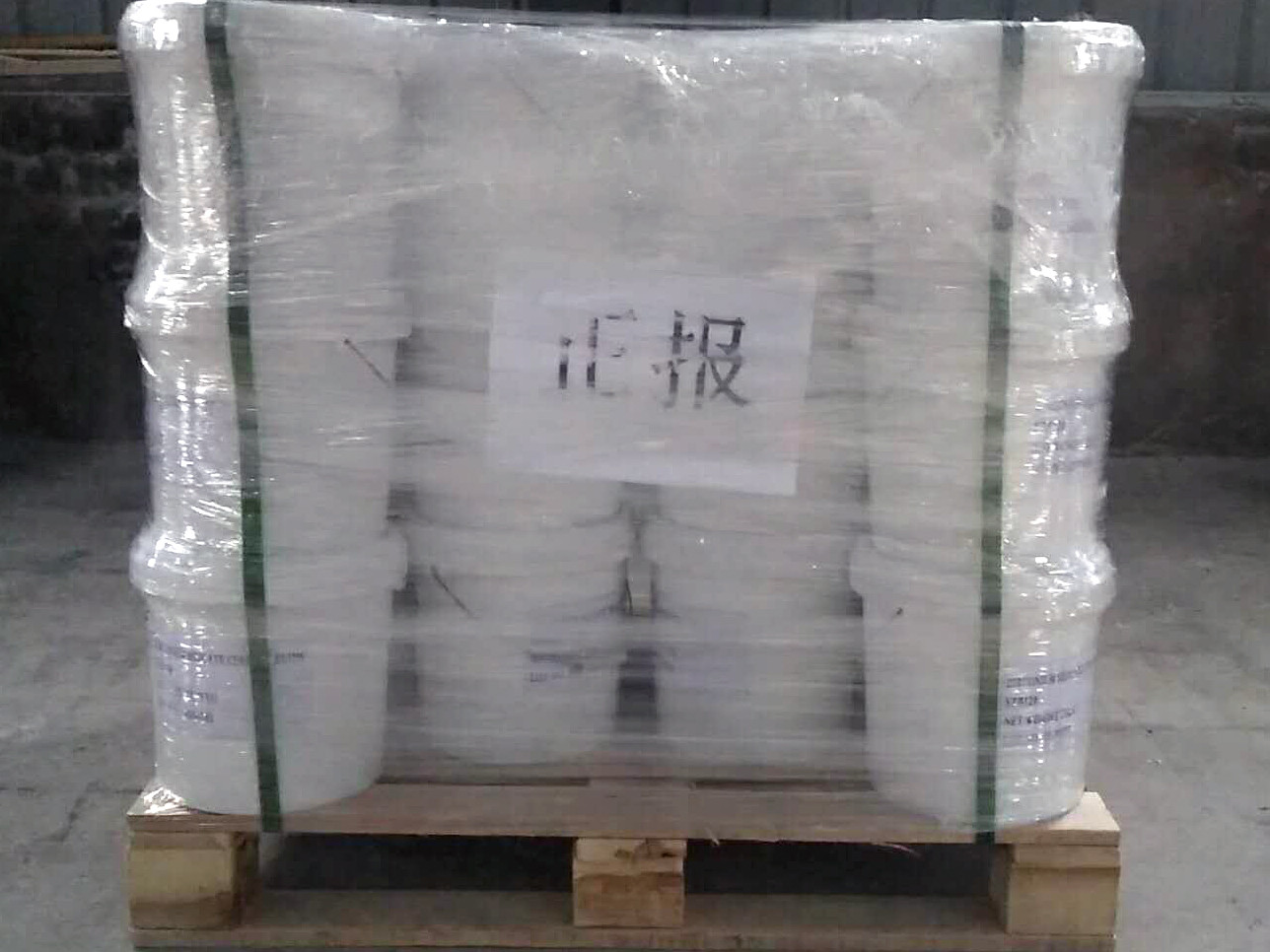

| Packaging Details: | 25kg barrel+pallet or 2*12.5kg barrel+ paper carton box + pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mts per month |
|
Detail Information |
|||
| Main Material: | 60-66% ZrO2 | Usage: | Open Sandblasting Machine |
|---|---|---|---|
| Commodity: | Ceramic Beads | Product Name: | Ceramic Blasting Media |
| Bulk Density: | 2.3 G/cm3 | True Gravity: | 3.85 G/cm3 |
| Vicker Hardness: | 700 HV | Shape: | Solid Round Ball |
| High Light: | 0.125mm Ceramic Blasting Beads,B120 Ceramic Blasting Beads,Solid Round Ceramic Blasting Beads |
||
Product Description

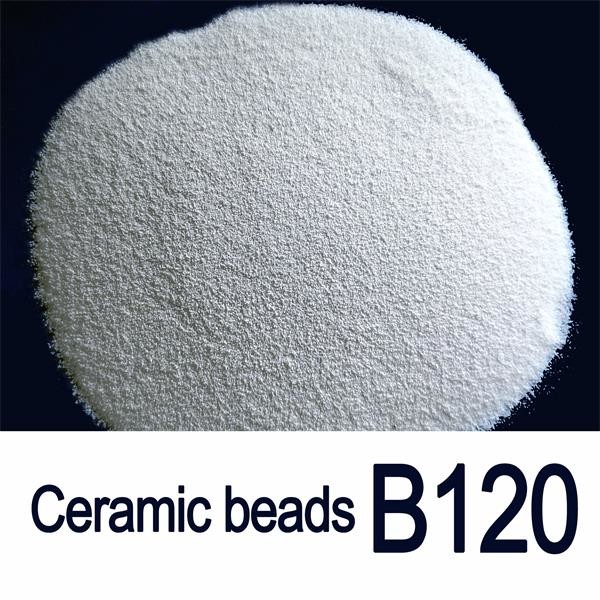

B120 size 0.063-0.125mm Ceramic Beads blasting media for aluminium profile
- Product Description
Ceramic beads is widely used as a sandblasting media and perform efficiently in automatic sandblasting machine to process aluminiun profile.
With features:
1. Beads roundness 88% Min.
Consistency of spherical shape and sizes provides smooth sating surface finish and consistent results.
2. High wear resistance, high impact resistance, not easy to be broken and low dust.
It is a green blasting media friendly to worker's health and environment.
3.Can be recycled by 20-25 times.
Cost-effective compared to glass beads, media consumption reduced up to 90% Vs glass Beads
|
||||||
| Chemical Index | Production Process | True Density | Bulk Density | Hardness | ||
| Vickers | Mohs | Rockwell | ||||
|
ZrO2 : 60-66% SiO2: 25-30% Al2O3: 7-13% |
Smelting | 3.85 | 2.3 | 700HV | 7 | 60H |
|
|
| Size | Screen Size | The coarsest grain |
Screen Size |
Coarse grain |
Screen Size | Mixed Grain | Screen Size | Fine Grain |
| Screen overflow | Screen overflow | Screen overflow |
Screen underflow |
|||||
| B120 0.063-0.125mm |
80# | 0 | 120# | ≤10% | -120#~+230# | ≥75% | -230# | ≤5% |
| 0.18mm | +0.125mm | -0.125mm~+ 0.063mm | -0.063mm |
|
||||||
| B20: 0.600-0.850mm | B80: 0.125-0.212mm | B170: 0.045-0.090mm | ||||
| B30: 0.425-0.600mm | B100: 0.106-0.180mm | B205:0.000-0.063mm | ||||
| B40: 0.250-0.425mm | B120: 0.063-0.125mm | B400: 0.030-0.063mm | ||||
| B60: 0.125-0.250mm | B150: 0.053-0.106mm | B505: 0.010-0.063mm | ||||
|
Nothe: Special sizes can be customized.
|
||||||
- Application
Ceramic beads is widely used for aluminium profile.
Aluminum profile sandblasting uses high-speed compressed air to spray ceramic beads or emery on the surface of the aluminum profile, so that the surface of the aluminum profile produces tiny depressions, and the surface of the aluminum profile produces a frosted effect.
The role of aluminum sandblasting
1. The surface roughness of the aluminum profile can be increased. There is a kind of sandblasting that cannot be done by other processes is that you can choose different surface roughness. Doing these well can do the basic work for the subsequent plating process (a certain roughness can improve the bonding force of industrial aluminum profiles with plating materials and coatings).
2. It can improve the mechanical properties of industrial aluminum profiles. The small pits on the surface of the sandblasted aluminum profile processing machine parts are convenient for storing lubricating oil, which can greatly improve the lubrication effect of the machine and prolong the service life of the machine.
3. Can clean aluminum profiles surface. The sandblasting process can remove all the dirt, such as oxide scale, oil stains, dust, etc., on the surface of the workpiece. In addition, it can also clean up the tiny burrs on the surface of the aluminum profile processing parts, so that the workpieces are more smooth.
- Applicable Equipment
Automatic Sandblasting machine
If you're interested in our ceramic beads blasting media, please feel free to contact us for more details and quotation.
