B60 Ceramic Blasting Abrasive Media 0.300mm For Aluminium Plate
Product Details:
| Place of Origin: | China |
| Brand Name: | ZIRNANO |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg barrel+pallet or 2*12.5kg barrel+ paper carton box + pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mts per month |
|
Detail Information |
|||
| Main Material: | 60-66% ZrO2 | Usage: | Open Sandblasting Machine |
|---|---|---|---|
| Commodity: | Ceramic Beads | Product Name: | Ceramic Blasting Media |
| Bulk Density: | 2.3 G/cm3 | True Gravity: | 3.85 G/cm3 |
| Vicker Hardness: | 700 HV | Shape: | Solid Round Ball |
| High Light: | B60 Ceramic Blasting Abrasive Media,Sandblasting Machine Blasting Abrasive Media,700HV Blasting Abrasive Media |
||
Product Description

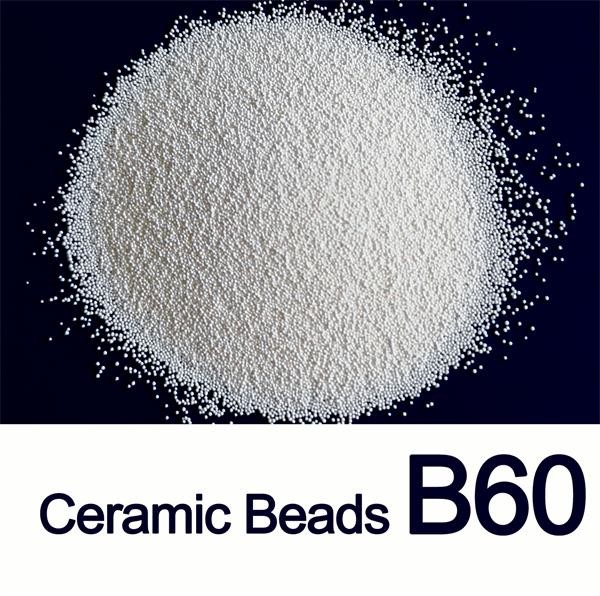

Ceramic Beads blasting media B60 size 0.150-0.300mm for steel and aluminium profile
- Product Description
Ceramic beads is widely used as a sandblasting media and perform efficiently in dry or wet blasting systems
as well as in wheel turbine blasting equipment.
It’s Zirconia based material and with ZrO2 about 60-62%, SiO2 25-30%. The ZrO2 microstructure is very fine
and distributed on the SiO2 substrate in a tile shape, so it has good wear resistance and impact resistance.
|
||||||
| 1. Consistency of spherical shape and sizes provides smooth sating surface finish and consistent results from the first part to the last. | ||||||
| 2.Outstanding elasticity provides a high impact force. | ||||||
| 3. High wear resistance, high impact resistance, and low dust. | ||||||
| 4. Cost-effective compared to glass beads, media consumption reduced up to 90% Vs glass Beads |
|
||||||
| Chemical Index | Production Process | True Density | Bulk Density | Hardness | ||
| Vickers | Mohs | Rockwell | ||||
|
ZrO2 : 60-66% SiO2: 25-30% Al2O3: 7-13% |
Smelting | 3.85 | 2.3 | 700HV | 7 | 60HRC |
|
|
||||||
| Size | Screen Size | The coarsest grain | Screen Size | Coarse grain |
Screen Size | Mixed Grain | Screen Size | Fine Grain |
| Screen overflow | Screen overflow | Screen overflow |
Screen underflow |
|||||
| B60 0.150-0.300mm |
40# | 0 | 50# | ≤5% | -50#~+100# | ≥75% | -100# | ≤5% |
| 0.425mm | +0.30mm | -0.30mm~+0.15mm | -0.15mm |
|
||||||
| B20: 0.600-0.850mm | B80: 0.125-0.212mm | B170: 0.045-0.090mm | ||||
| B30: 0.425-0.600mm | B100: 0.106-0.180mm | B205:0.000-0.063mm | ||||
| B40: 0.250-0.425mm | B120: 0.063-0.125mm | B400: 0.030-0.063mm | ||||
| B60: 0.125-0.250mm | B150: 0.053-0.106mm | B505: 0.010-0.063mm | ||||
|
Nothe: Special sizes can be customized.
|
||||||
- Application
Ceramic beads is widely used for steel and aluminium plate.
Take the stainless steel plate for example,the stainless steel plate sandblasting is powered by compressed air to form a high-speed jet beam to spray ceramic beads abrasive on the surface of the steel plate at a high speed, so that the plate surface presents a fine bead-like sand surface.
Due to the impact and cutting action of the abrasive on the surface of the steel plate, the surface also obtains a certain degree of cleanliness and different roughness, and the mechanical properties are improved, thus improving the fatigue resistance of the workpiece and increasing the adhesion between it and the coating , Is conducive to the next oxidation and coloring process.
- Applicable Equipment
Automatic Sandblasting machine
- Other Abrasive media available:
* Brown fused alumina
* Black fused alumina
* White fused alumina
* Glass beads
* Plastic media
