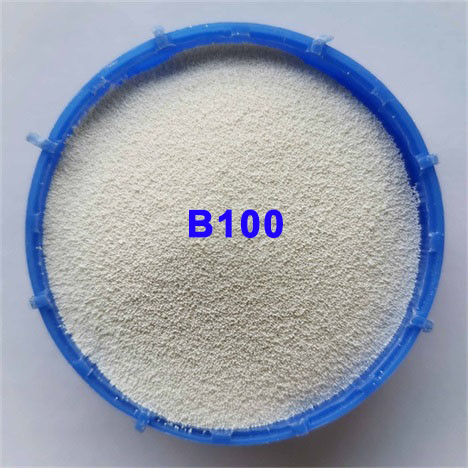

Bicycle Frame B100 Zirconium Oxide Ceramic Blasting Media

Bicycle Frame B100 Zirconium Oxide Ceramic Blasting Media

Product Details:

Place of Origin: Shanxi,China
Brand Name: Zirnano
Certification: ISO9001,ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100kgs
Price: Negotiable
Packaging Details: 25kg barrel+ Pallet,2*12.5kg barrel+Carton+Pallet
Delivery Time: 2-4 days after order confirmed
Payment Terms: L/C, MoneyGram, Western Union,paypal
Supply Ability: 3000mts per year
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Bead Blasting Product Name: Ceramic Beads
Shape: Beads Bulk Density: 2.3g/cm3
True Gravity: 3.85g/cm3 Main Chemical: 60-66% ZrO2,25-30% SiO2,7-13% Al2O3
Hardness: 700HV Min Size: B100 0.106-0.180mm
High Light:

Zirconium Oxide Ceramic Blasting Media


B100 Ceramic Blasting Media


Bicycle Frame Ceramic Blasting Media

Product Description

Zirconium Oxide Ceramic Blasting Media B20 B60 B100 B120 B170 B205 for Titanium Bicycle Frame

1. Product Description of Ceramic Blasting Media

Ceramic blasting media is also called as ceramic beads,it has smooth surface,good sphericity,low breakdown

rate, it is also one round solid blasting media,widely used in automobile industry.

It selects the high quality zircon sand as main raw material,then fused in arc furnace under high temperature

over 2000 degrees,finally screened into different microbeads form B20(0.600-0.850mm) to B505(0.010-0.030mm).

Ceramic beads has wide particle size distribution,it can match most blasting machines.

If you are looking for one clean and more efficient blasting media to replace glass beads,then ceramic beads

will be the best choice for you.

2. Main Technical Data

Commodity Ceramic Blasting Media
Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Physical Index Vickers Hardness ≥700 HV
Bulk Density≥2.3g/cm3
True Gravity: 3.85g/cm3
Process: Melting
Particle Size B20: 0.600-0.850mm B120: 0.063-0.125mm
B30: 0.425-0.600mm B150: 0.053-0.106mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.150-0.300mm B205: 0.000-0.063mm
B80: 0.125-0.212mm B400: 0.030-0.063mm
B100: 0.106-0.180mm B505: 0.000-0.030mm
Remark: Special specification can be customized


3. Main Applications:

Metal Surface Finish for Titanium alloy, Aluminium alloy,Magnesium etc

Surfafe finish for Titanium Bicycle Frame,Fishing Gear,Golf head...

Surface cleaning for inner and outer wall of metal pipelines...

Mould-cleaning for Glass-bottle,tires,die casting etc.

Surface finish for Stainless Steel Plate...

Surface Preparation before anodizing,electroplating...

Shot Peening for automotive and aviation industry.

Bicycle Frame B100 Zirconium Oxide Ceramic Blasting Media 0


4. Most Popular Specifiction of Ceramic Beads Blasting Media:


are the most popular specification in daliy blasting applications.


5. How to Store, Pack and Use Cceramic Beads:

Ceramic beads should be stored in dry clean and ventilated indoor environment;

Please kindly wear masks and protective suit when using ceramic beads;

It is generally packed in 25kg round barrels , 12.5 round barrels or 25kgs square barrels.

When using ceramic beads for first time,please kindly open 1/3 to 1/2 vest of dust collector,since ceramic

beads need the wind to be recycled in the blasting process.

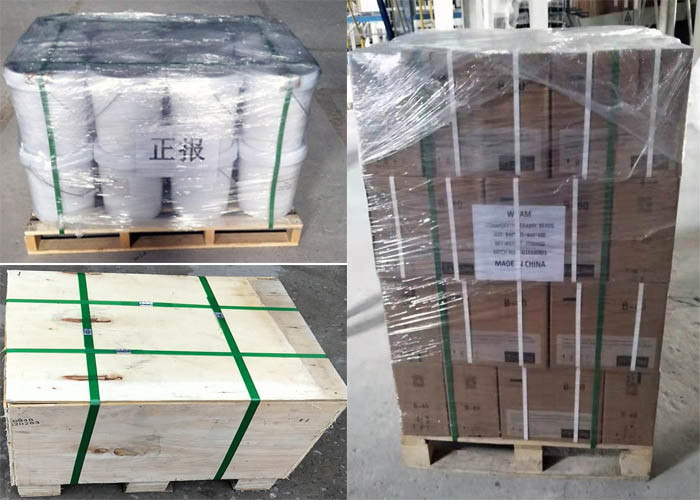

6. Packages of Ceramic Blasting Media

25 kg barrel+ Pallet

2*12.5kg barrel+ Carton+ Pallet

25 kg barrel+ Wooden Case

Bicycle Frame B100 Zirconium Oxide Ceramic Blasting Media 1

7. Questions and Answers

Q:How to place the order?

A: You can click one of our product link,then send inquiry to us or just email to inquiry@zzztabrasive.com,

    then we will reply you immediately.


Q: What is your MOQ?

 A: MOQ is 100kg for sea way,and 25kg for air way.


Q: Can you provide free sample?

A: Yes, free sample within 1 kg is available.


Q: How Iong the order will be prepared well?

A: Cargo will be prepared well within 1-2 days after order confirmed.
