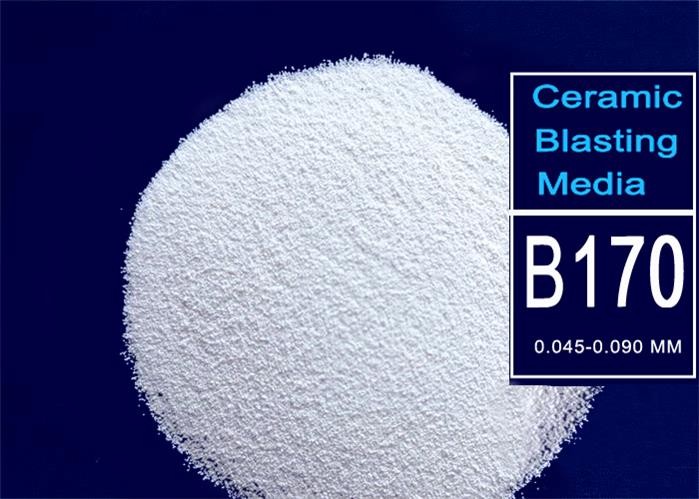

B170 size 0.045-0.090mm Wear Resistance Ceramic Beads Sandblasting Media

Minimum Order Quantity :	100KGS	Price :	Negotiable
Packaging Details :	2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet	Delivery Time :	3-5 days after order confirmed
Payment Terms :	L/C, T/T, Western Union, MoneyGram	Supply Ability :	200mts per month

Place of Origin:	China	Brand Name:	ZIRNANO
Certification:	ISO9001,ISO14001	Model Number:	B20-B505

Detail Information
Commodity:	Ceramic Blasting Beads	Product Name:	Ceramic Blasting Media
Usage:	Surface Finish For 3C Products	Bulk Density:	2.3 G/cm3
True Gravity:	3.85 G/cm3	Vicker Hardness:	700HV
Main Material:	60-66% ZrO2	Shape:	Solid Round Ball
High Light:	Ceramic Beads Sandblasting Media , Wear Resistance Ceramic Bead Blasting , B170 Ceramic Bead Blasting

Product Description

Ceramic beads sandblasting media no dust and easy to clean VS Glass Beads

DESCRIPTION
Ceramic beads is an excellent sandblasting media with main chemical content is ZrO2 60% Min.,with good wear resistance and impact resistance.
It is also featured with more fine sizes like B205 (0.000-0.063 mm), B400 (0.030-0.063 mm), B505 (0.010-0.030 mm)
The satin finish of the processing metal work pieces surface will be with lower roughness and higher finish.

Ceramic beads are used in blasting systems for deburring at the surface finishing of components consisting of stainless steel, titanium alloy and aluminum.

Technical Data
Components	Content	CAS No.	EC No.
ZrO2 (Zirconium dioxide)	60-68%	1314-23-4	215-227-2
SiO2 (Silicon dioxide)	25-30	60676-86-0	262-373-8
Al2O3 (Aluminum oxide )	7-13%	1344-28-1	215-691-6
Manufacturing Method	Melting in above 2000℃ furnace
True Density	3.85 g/cm3
Bulk Density	2.3g/cm3
Vicker Hardness	700HV
Sizes for Sand Blasting
Bead Size	Size range	Bead Size	Size range
B20	0.60-0.85 mm	B120	0.063-0.125 mm
B30	0.425-0.60 mm	B125	0.000-0.125 mm
B40	0.24-0.425 mm	B170	0.045-0.090 mm
B60	0.125-0.25 mm	B205	0.000-0.063 mm
B80	0.18-0.25 mm	B400	0.030-0.063 mm
B100	0.125-0.18 mm	B505	0.000-0.030 mm
Sizes for Shot Peening
Z850	0.85-1.18 mm	Z210	0.21-0.30 mm
Z600	0.6-0.85 mm	Z150	0.15-0.21 mm
Z425	0.425-0.60 mm	Z100	0.10-0.15 mm
Z300	0.30-0.425 mm

FEATURES

Features--Ceramic bead VS Glass Beads

Disadvantages of Glass beads	Advantage of Ceramic beads
Easy to fragile, uneven finish effect and with dust	Good toughness, not easy to be broken, uniform finish effect. Service Life time is 8-20 times longer than glass beads
Surface turn white, unnatural metallic luster	Natural metallic luster
A high rate of dirt adhesion, contamination of the surface	No dust, no metal contamination
Difficulties to clean and rinse,	Easy to clean
Corrosion can occur easily	No corrosion
1-2 time	Multiple recycle use more than 20 times

APPLICATION

· Sandblast cleaning for metal tools
· Descaling and deburring
· Alu alloy and Stainless steel surface satin finishing
· Painting/ coating stripping and pre treatment before coating

The ceramic beads is applicable to use in the mobile open sandblasting machine.

CONTACT US

Other main sandblasting abrasive available

01. Ceramic Beads
02. Glass Beads
03. Steel Shot
04. Brown fused alumina
05. White fused alumina
06. Black fused alumina
B170 size 0.045-0.090mm Wear Resistance Ceramic Beads Sandblasting Media 0

We can provide MSDS, COA, CERTIFICATE OF ORIGIN, etc.
Contact us to get more details about ceramic beads and other sandblasting media, you can get very fast response and professional service.
