ISO9001 Ore Furnace 700HV B150 Ceramic Bead Blasting
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |

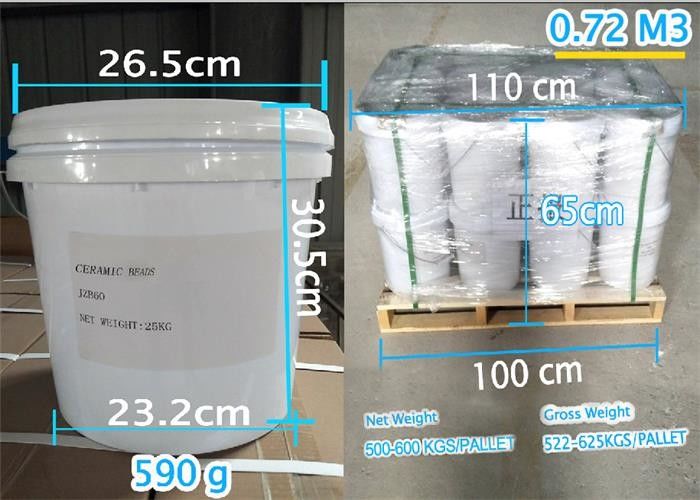

| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | B150 Ceramic Bead Blasting,Ceramic Beads Blasting Media,ISO9001 Ceramic Bead Blasting |
||
Product Description

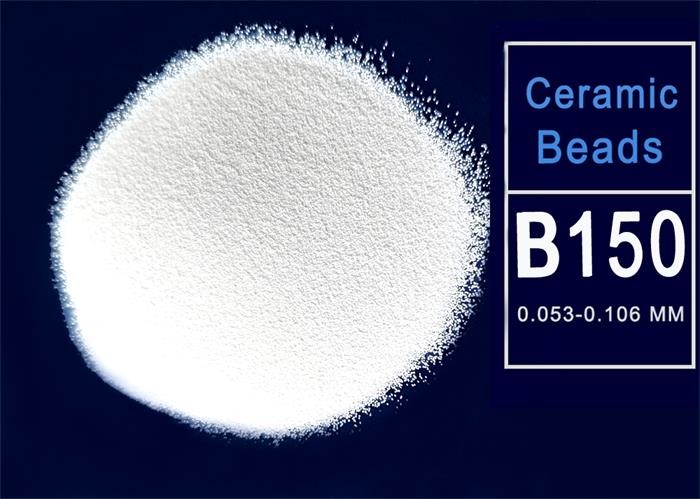

ISO9001, ISO14001 Certified Industrial Ceramic beads B150 Strict Quality Control Process
DESCRIPTION
Ceramic beads are manufactured by electric fusion at high temperatures in ore furnace, with high wear and fracture-resistance. Production process including smelting-flow into micro beads-screen- air cleaning and fine screen to different sizes from B20 to B505, and Z100-Z850.
Our Ceramic beads are available in both sandblasting surface finishing grade and shot peening grade.
SPECIFICATION
Manufacturing process: Melting method
| ZrO2 | SiO2 | Al2O3 | Other |
| 60-66%, | 25-30% max. | 7-13% max. | 5-8% |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |
Sizes
| B20 | B30 | B40 | B60 |
| 600-850µm | 425-600µm | 250-425µm | 150-300µm |
| B80 | B120 | B170 | B205 |
| 125-212µm | 63-125µm | 45-90µm | 0-63µm |
Special sizes available against clients’ requirement.
- QUALITY CONTROL
FEATURES
High efficiency
With high hardness, long life and good elasticity, suitable for the complicated structure,without damage to the surface of the workpiece, eliminate the stress and improve the fatigue life of the workpiece.
High cost performance
Compared to glass beads, it has higher cleanliness, can prolong the service life 30-50 times. Compared to steel beads, it has superior smoothness, can prolong life 3-5 times. It ‘s also recyclable,and can reduce the refueling times, improve working efficiency.
Environmental protection
Not easy to break during sandblasting process, no dust, clean, and no hidden danger of silicosis, it is harmless to the human body.
CONTACT US
If you're looking for ceramc beads for sandblasting finish, just contact us to get price, details and samples.
