Industrial Ceramic Blasting Media Melting Processing 2.3g/Cm3 Bulk Density
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Usage: | Polishing,deburring | Name: | Zirconia Grinding Media/zirconia Bead/ceramic Beads Blasting Abrasive |
|---|---|---|---|
| Hardness: | 700HV | Manufacturing Process: | Melting Method |
| Bulk Density: | 2.3g.cm3 | True Density: | 3.85g/cm3 |
| Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% | Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet |
| High Light: | abrasive blasting media,ceramic bead blasting media |
||
Product Description
ISO9001, ISO14001 Certified Industrial Ceramic beads blasting MSDS TDS COA Available immediately
Description

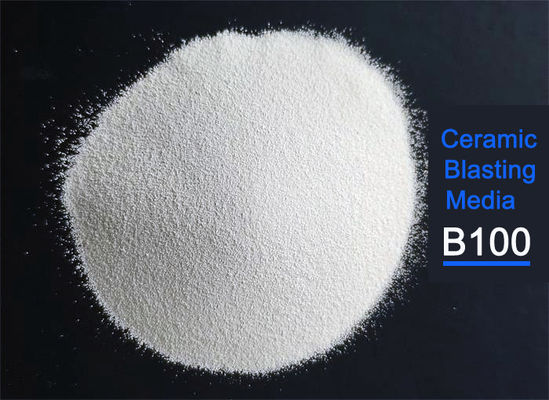

Ceramic beads are widely used as a sandblasting media. Its main chemical content is ZrO2 and SiO2, ZrO2 about 62%, SiO2 25-30%. The ZrO2 microstructure is very fine and distributed on the SiO2 substrate in a tile shape, so it has good wear resistance and impact resistance.
Ceramic beads are used in blasting systems for deburring at the surface finishing of components consisting of stainless steel, titanium alloy and aluminum. Ceramic beads ensure a better surface condensation.
Specification
Chemical Index:
ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Physical Index
Processing: Melting
Bulk Density: 2.3g/cm3
True Specific Gravity: 3.97 g/cm3
Vickers Hardness: 700 kg /mm2
Sizes
Sandblasting surface finishing grade
| B20 | 0.600-0.850 mm |
| B30 | 0.425-0.600 mm |
| B40 | 0.250-0.425 mm |
| B60 | 0.150-0.300 mm |
| B80 | 0.125-0.212 mm |
| B100 | 0.106-0.180 mm |
| B120 | 0.063-0.125mm |
| B150 | 0.000-0.125mm |
| B170 | 0.045-0.090 mm |
| B205 | 0.000-0.063 mm |
| B400 | 0.030-0.063 mm |
| B505 | 0.010-0.030 mm |
Shot peening grade
| Z850 | 0.850-1.180 mm |
| Z600 | 0.600-0.850 mm |
| Z425 | 0.425-0.600 mm |
| Z300 | 0.300-0.425 mm |
| Z210 | 0.210-0.300 mm |
| Z150 | 0.150-0.212 mm |
| Z100 | 0.100-0.150 mm |
Application
1) 3C products - Sandblasting Finishing
2) Aerospace industry-Blasting finishing
3) Automotive industry-sandblasting reinforcement
4) Kitchen Industry-Sandblasting finishing
5) Machinery, Medical Instrument - Sandblast finishing
6) Casting, forging , welded, heat-treated parts - Sandblast Cleaning
7) Pipeline - Sandblast Cleaning
8) Molds - Sandblast cleaning
9) Electroplating, painting, anode-Surface Pre-treatment.
10) Hardware parts - Sandblast to improve lubrication conditions.
Other sandblasting abrasive available
01. Ceramic Beads...............................................01
02. Glass Beads.................................................. 02
03. Steel Shot.......................................................03
04. Brown fused alumina......................................04
05. White fused alumina.......................................05
06. Black fused alumina.......................................06
07. Black silicon carbide.......................................07
08. Green silicon carbide......................................08
09. Steel Grits.......................................................09
10. Plastic Sand....................................................10
11. PA Nylon sand ................................................11
12. PC Frozen sand..............................................12
More details please send us email to get our catalogue 2022.
MSDS TDS COA Available immediately not only for ceramic blasting beads but for all above sandblasting abrasive media.
