High Hardness Abrasive Blasting Media B20 - B505 Shot Peening For Stainless Steel

Minimum Order Quantity : 100KGS Price : Negotiable
Packaging Details : 25 KG (12L)Barrel + Pallet; 2*12.5 KG Barrel+ Carton Box+ Pallet Delivery Time : Within 3-5 days after order confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 3000 MTS Per Year
Place of Origin: China Brand Name: Zirnano
Certification: ISO9001,ISO14001,ROHS,SGS Model Number: Z100-Z850

Detail Information

Commodity: Ceramic Beads Product Name: Ceramic Shot Peening
Application: Shot Peening Mohs Hardness: 8
Bulk Density: 2.3 G/cm3 True Gravity: 3.85g/cm3
Specification: Z850 850-1180μm Vicker Hardness: 700 HV
High Light:

abrasive blasting media


ceramic bead blasting media

Product Description

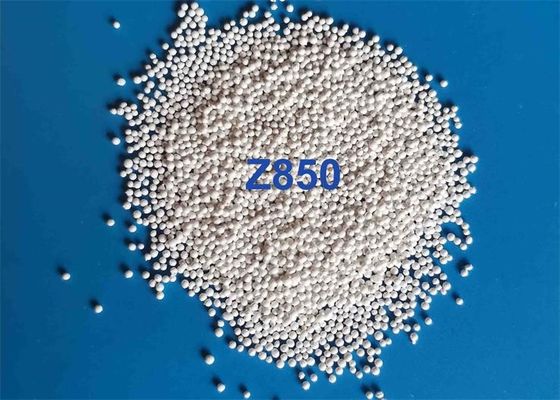

High Hardness Ceramic Blasting Media B20-B505 Shot Peening Z100-Z850 for Stainless Steel


1. Product Description of Ceramic Shot Peening

Ceramic shot peening is selected the high quality zircon sand as main raw material,then fused in one

electric furnace under high temperature,then made into different micro sizes.

Ceramic shot peening contains 60-66% ZrO2,the unique internal crystal phase ensures its higher

hardness and better impact resistance. Its perfectly smooth surface and low breakdown rate provides

one clean working condition.Meanwhile,its stable chemical inertia will also provide zero contamination

to the surface of workpieces.


2. Main Technical Data of Ceramic Shot Peening


Commodity Main Chemical Index Main Physical Index

Ceramic Shot Peening
ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Al2O3 7-13% Vickers Hardness: 700 kg /mm2
Particle Size Z100: 100-150μm Z150: 150-210μm
Z210: 210-300μm Z300: 300-425μm
Z425:425-600μm Z600: 600-850μm
Z850: 850-1180μm
Remark: Special specification can be customized



3.  Main Features of Ceramic Shot Peening

Fine microstructure & Low Break Down Rate

Outstanding peening effect &Uniform Surface Finish

High Effciency and Long service life

No hidden danger of Silicosis


4. Main Application of Ceramic Shot Peening:

Shot peening for metal parts in aerospace industry to improve the surface strength,eliminate the stress,

reduce the metal weights;

Shot peening in automotive industry such as gearbox gears,automotive aluminum hubs etc. to extend the

anti-fatigue life.


High Hardness Abrasive Blasting Media B20 - B505 Shot Peening For Stainless Steel 0


5. Why Choose Us?

Professional Manufacturer of ceramic beads,annual output over 3000mts

Equipped the most advanced production line,testing equipment, as well as professional technical staffs and

7*24h technical support;

Strict quality control and quality assurance, products will be inspected by each

Shipment,even for the free sample in small quantity;

Multiple Authentication,Certificated by ISO9001 ISO14001,SGS,ROHS;

Stable supplier of Foxconn,Ujiden,Samsung Electronics,Tongda Group etc

Products in good quality & stable performance,competitive price,flexible payment terms,prompt delivery etc.
