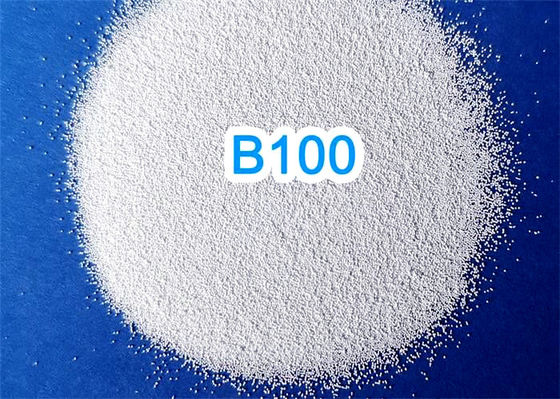

B100 Size 125 - 180 μM Ceramic Blasting Media For Stainless Steel / Aluminum
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B120: 0.063-0.125mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |

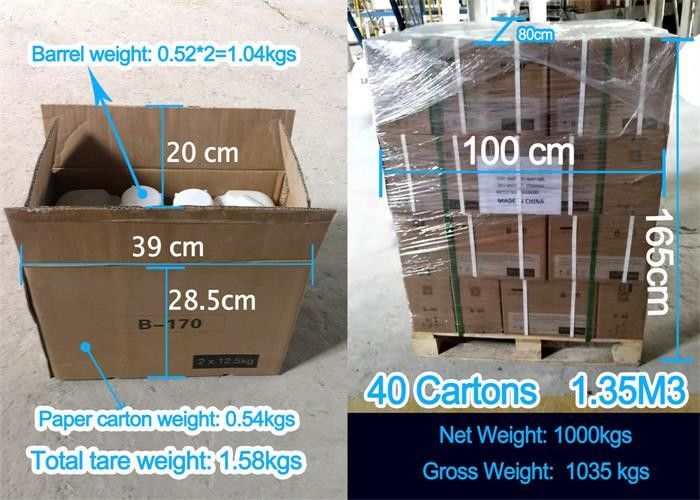

| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Produce Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | bead blasting material,ceramic bead blasting media |
||
Product Description

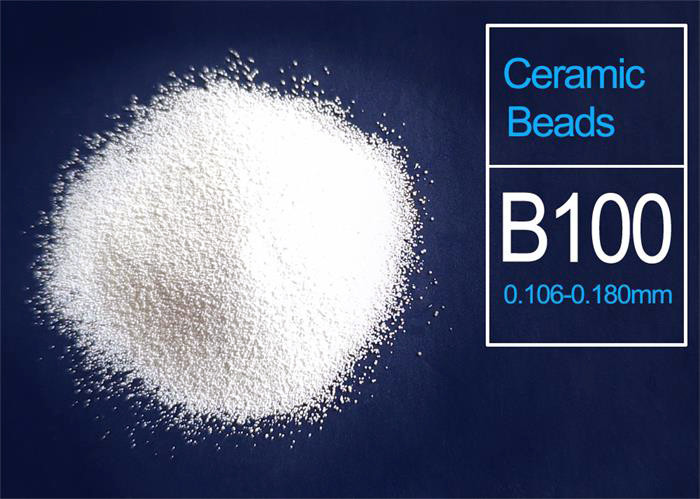

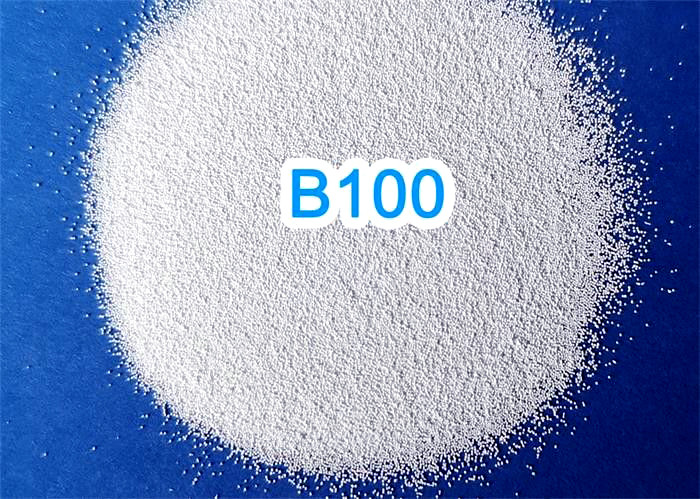

B100 size 125-180 μm Ceramic blasting for stainless steel, aluminum, titanium, magnesium, etc
DESCRIPTION
The ceramic beads are spherical shaped blasting media with high mechanical strength and high wear rates, also with good round consistency and chemically stability.
Ceramic beads blasting Sizes range from B20 to B505, available in coarse, fine and very fine sizes sandblasting.
Ceramic beads is applicable for sandblasting for various materials, including steel, stainless steel, aluminum, titanium, magnesium, brass, copper and plastics, etc.
Ceramic blast media is very versatile and can be blasted with all delivery systems.
SPECIFICATION
Manufacturing process: Melting method
| ZrO2 | SiO2 | Al2O3 | Other |
| 60-66%, | 25-30% max. | 7-13% max. | 5-8% |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |
Sizes Available:
| B20:0.600-0.850mm | B120:0.063-0.125mm |
| B30:0.425-0.600mm | B150:0.053-0.106mm |
| B40:0.250-0.425mm | B170:0.045-0.090mm |
| B60:0.150-0.300mm | B205:0.000-0.063mm |
| B80:0.180-0.250mm | B400:0.030-0.063mm |
| B100: 0.106-0.180mm | B505:0.010-0.063mm |
Special specifications can be customized.
PRODUCTION PROCESS
FEATURES
- Strong chemical resistance
Guarantees constant performance eg. consistent Surface blasting effect.
- Low dust emission
Does not contaminate the work piece surface, and no hidden danger of silicosis, it is harmless to the human body.
- Not easy to break
Recyclable,and can reduce the refueling times, improve working efficiency.
APPLICATION
- In Sandblasting
1) 3C products - Sandblasting Finishing
Alloy shell, middle frame and built-in parts of computers, mobile phones, cameras, etc. - sandblasting finishing
Clean burrs to form film-light decorative or fine reflective surface, on alloy workpiece such as mobile phone to achieve different reflection or matte.
2) Kitchen Industry-Sandblasting finishing
Stainless steel cutlery and kitchen utensils sandblasting finishing
3) Golf club - Sandblasting finishing
Golf club & ball head alloy surface treatment Sandblasting finishing
4) Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning
Clean all the dirt on the surface of the alloy workpiece, micro burrs, improve the flatness and smoothness of the workpiece, and expose to uniform metallic color, achieving smooth and non-reflective requirements on surface.
5) Pipeline - Sandblast Cleaning
Metal pipes such as copper pipes and steel pipes are cleaned and polished on the inner and outer walls.
6) Molds - Sandblast cleaning
Cleaning of molds of glass bottles, tires, etc., rust, dirt and impurities.
7) Electroplating, painting, anode-Surface Pretreatment
Electroplating, painting, anode, Teflon, rubber, plastic, traversing, metal, spray welding, gold plating, titanium plating, etc., to remove dirt and increase product surface adhesion.
8) Hardware parts - Sandblasting to improve lubrication conditions
It can produce uniform and fine uneven surface on the surface of the part, so that the lubricating oil can be stored, improve the lubrication condition and reduce the noise.
- In shot peening
1) Aerospace industry-Shot Peening
Suitable for aerospace engine components, aircraft landing gear, gear transmissions, aero-engine blades, aircraft wing-shot peening
2) Automotive industry-Sandblasting reinforcement/ Shot Peening
Suitable for gearbox gears, automotive aluminum hubs, piston components/shock absorbers, engine crankshaft sandblasting reinforcement/shot peening
3) Machinery, Medical Instrument - Sandblast finishing/shot peening
The overall sandblasting and polishing, finishing, restore the natural color of the metal, enhance the visual effect and texture, and also shot peening reinforcement to improve its worklife.
APPLICABLE EQUIPMENT
- Air Blasting cabinet
- Air blasting blast pots
- Air blasting rooms
- Automated blasting equipment
- Shot peening equipment
- Micro blasting quipment
- Wheep blast equipent
FACTORY
CONTACT US
If you need ceramic beads, pls feel free contact us for advisory pre-sale service, best price, details, and samples, etc.
