Blasting Media Ceramic Beads Glass Beads Steel Shot and Brown aluminium oxide
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | abrasive blasting media,ceramic bead blasting media |
||
Product Description

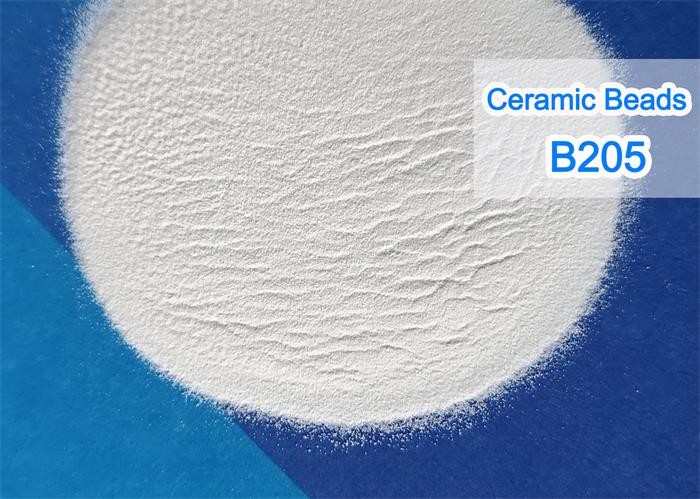

Blasting Media Ceramic Beads Glass Beads Steel Shot and Brown aluminium oxide
Description
The ceramic beads is spherical shaped media with high mechanical strength and high wear rates, also with
good round consistency and chemically stability.
The ceramic beads density creates higher impact speed making it a good choice for deburring and peening.
And its good impact resistance leads it creating very little dust.
Ceramic blast processes produce a smooth bright satin finish.
Mainly used in sandblasting machine, including Manual & Automatic sandblasting machine, Open type
sandblasting machine and Sandblasting machine room, and shot peening equipment, etc.
Specification
| Chemical Index | ZrO2 | SiO2 | Al2O3 |
| 60-65% | 25-30% | 7-13% | |
| Typical Value | 62.20% | 26.10% | 9.05% |
| Bulk Density | 2.3g/cm3 | ||
| Specific Density | 3.85g/cm3 | ||
| Vickers Hardness | 700HV | ||

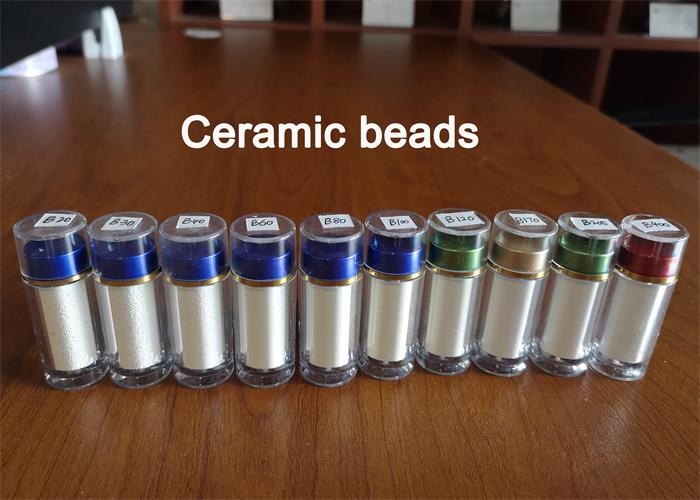

Sizes
| B20 | B30 | B40 | B60 |
| 600-850µm | 425-6000µm | 0250-425µm | 125-250µm |
| B80 | B120 | B170 | B205 |
| 180-250µm | 63-125µm | 45-90µm | 0-63µm |
Special sizes available against clients’ requirement.
Features
Our ceramic beads is of top quality in China, and has below features
1) Imported raw materials, High quality ceramic beads
Use Australia imported high-quality raw materials to produce ceramic beads, high hardness, good elasticity and higher service life.
2) Independent research and development
Complete product testing equipment and complete independent intellectual property rights, as well as independent laboratories and university cooperative laboratories in Beijing and Shijiazhuang.
More importantly, we have years of continuous improvement in R&D team.
3. Better cleanliness and sizes more concentration
We have our own particle sizes distribution standard, with more concentration granules and can screen as per clients’ requirement.
4. High hardness, long life and good elasticity
The hardness of ceramic beads is high,and the deformation is small.
The hardness of ceramic sand can 700 HV, it ensures that ceramic bead can be shot peened for high strength and high strength structural parts. Small deformation ensures that the shape of the projectile does not change during impact, and the spherical shape of the ceramic sand improves the quality stability of the shot peening of the part.
Application
- In Sandblasting
1) 3C products - Sandblasting Finishing
Alloy shell, middle frame and built-in parts of computers, mobile phones, cameras, etc. - sandblasting finishing
Clean burrs to form film-light decorative or fine reflective surface, on alloy workpiece such as mobile phone to achieve different reflection or matte.
2) Kitchen Industry-Sandblasting finishing
Stainless steel cutlery and kitchen utensils sandblasting finishing
3) Golf club - Sandblasting finishing
Golf club & ball head alloy surface treatment Sandblasting finishing
4) Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning
Clean all the dirt on the surface of the alloy workpiece, micro burrs, improve the flatness and smoothness of the workpiece, and expose to uniform metallic color, achieving smooth and non-reflective requirements on surface.
5) Pipeline - Sandblast Cleaning
Metal pipes such as copper pipes and steel pipes are cleaned and polished on the inner and outer walls.
6) Molds - Sandblast cleaning
Cleaning of molds of glass bottles, tires, etc., rust, dirt and impurities.
7) Electroplating, painting, anode-Surface Pretreatment
Electroplating, painting, anode, Teflon, rubber, plastic, traversing, metal, spray welding, gold plating, titanium plating, etc., to remove dirt and increase product surface adhesion.
8) Hardware parts - Sandblasting to improve lubrication conditions
It can produce uniform and fine uneven surface on the surface of the part, so that the lubricating oil can be stored, improve the lubrication condition and reduce the noise.
- In shot peening
1) Aerospace industry-Shot Peening
Suitable for aerospace engine components, aircraft landing gear, gear transmissions, aero-engine blades, aircraft wing-shot peening
2) Automotive industry-Sandblasting reinforcement/ Shot Peening
Suitable for gearbox gears, automotive aluminum hubs, piston components/shock absorbers, engine crankshaft sandblasting reinforcement/shot peening
3) Machinery, Medical Instrument - Sandblast finishing/shot peening
The overall sandblasting and polishing, finishing, restore the natural color of the metal, enhance the visual effect and texture, and also shot peening reinforcement to improve its worklife.
Applicable equipment
- In sandblasting
Manual sandblasting machine
Automatic sandblasting machine
Open type sandblasting machine
Sandblasting machine room
- In shot peening /shot blasting
Pneumatic shot blasting machine
Centrifugal shot blasting machine
CNC shot peening equipment
Wet shot blasting equipment
Contact Us

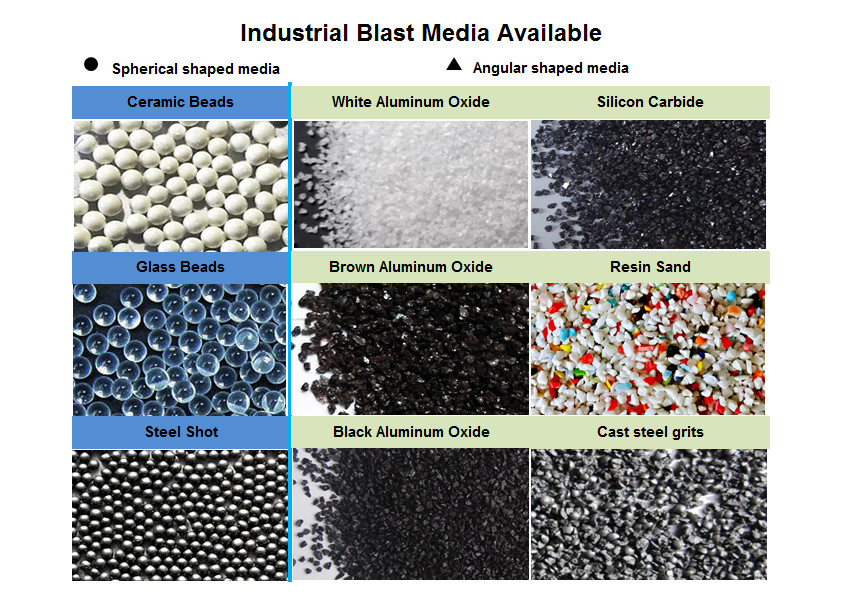

Besides ceramic beads, we also have other blasting media available
Glass beadsm steel shot, aluminum oxide etc.
