• Ceramic Blasting Media B60 For Stainless Steel / Alu Alloy Surfaces Finish
  • Ceramic Blasting Media B60 For Stainless Steel / Alu Alloy Surfaces Finish

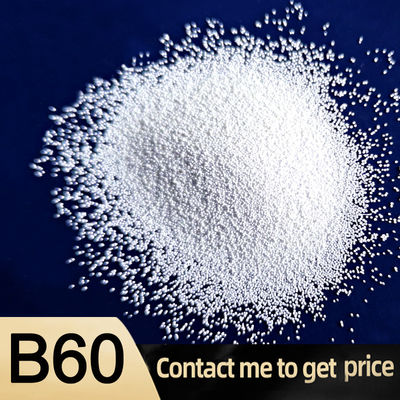

Ceramic Blasting Media B60 For Stainless Steel / Alu Alloy Surfaces Finish

Ceramic Blasting Media B60 For Stainless Steel / Alu Alloy Surfaces Finish

Product Details:

Place of Origin: Shanxi, China
Brand Name: Zhengtong
Certification: ISO9001, ISO14001
Model Number: B60

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet
Delivery Time: 5-10 days
Supply Ability: 1500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

bead blasting material

,

ceramic bead blasting media

Product Description



Bulk Density 2.3g/cm3 Ceramic Blasting media B60 for stainless steel

& alu alloy surfaces finish



DESCRIPTION



Ceramic blasting media also called ceramic micro beads, is a zirconia-based blasting media produced by

melting process, ZrO2 62-65%, with good roundness and good elasticity, no dirt adhesion and easy to clean

after sandblasting, suitable for the treatment of stainless steel surfaces in for instance the food and

pharmaceutical industry.





SPECIFICATION



Chemical Index ZrO2 SiO2 Al2O3
60-65% 25-30% 7-13%
Typical Value 62.20% 26.10% 9.05%
Bulk Density 2.3g/cm3
Specific Density 3.85g/cm3
Vickers Hardness 700HV



Sizes

B20 B30 B40 B60
600-850µm 425-6000µm 0250-425µm 125-250µm
B80 B120 B170 B205
180-250µm 63-125µm 45-90µm 0-63µm

Special sizes available against clients’ requirement.



PRODUCTION PROCESS

Ceramic Blasting Media B60 For Stainless Steel / Alu Alloy Surfaces Finish 0



FEATURES



Our ceramic beads is of top quality in China, and has below features

1) Imported raw materials, High quality ceramic beads

Use Australia imported high-quality raw materials to produce ceramic beads, high hardness, good elasticity and higher service life.



2) Independent research and development

Complete product testing equipment and complete independent intellectual property rights, as well as independent laboratories and university cooperative laboratories in Beijing and Shijiazhuang.

More importantly, we have years of continuous improvement in R&D team.



3. Better cleanliness and sizes more concentration

We have our own particle sizes distribution standard, with more concentration granules and can screen as per clients’ requirement.



4. High hardness, long life and good elasticity

The hardness of ceramic beads is high,and the deformation is small.

The hardness of ceramic sand can 700 HV, it ensures that ceramic bead can be shot peened for high strength and high strength structural parts. Small deformation ensures that the shape of the projectile does not change during impact, and the spherical shape of the ceramic sand improves the quality stability of the shot peening of the part.



APPLICATIONS



Ceramic blasting media is very suitable for stainless steel products which have to have a high cosmetic value, for example, the treatment of stainless steel surfaces for instance the food and pharmaceutical industry.

Ceramic beads are much better and easier to clean compared with glass bead blasting.

By subsequently ceramic bead blasting, a uniform satin shine finish of the surface can be obtained.

Advantages of ceramic beads:

  • Completely iron free, so no risk of contamination.
  • Beautiful uniform finish (satin shine).
  • Depending on the beginning state of the material, a roughness of Ra < 1,0 μm is realizable.
  • Suitable for the treatment of stainless steel products for the food and pharmaceutical industry.



Starting with a pre finished surface or cold rolled 2B, and depending on the surface treatment, the following roughness (Ra) can be achieved approximately:

Ceramic bead blasting: 2.0 – 0.8 μm

Glass bead blasting: 3.0 – 1.5 μm

Pickling: ~ 0.5 μm

Mechanical Polishing: 5.0 – 0.05 μm



Ceramic Blasting Media B60 For Stainless Steel / Alu Alloy Surfaces Finish 1



Suitable sand blasting machine:

Manual sand blasting machine, Automatic sand blasting machine,

Open type series of sand blasting machine, and Blasting room series.
