Ceramic Bead Blasting Media B20 Replacing Glass Beads in Sandblasting

Ceramic Bead Blasting Media B20 Replacing Glass Beads in Sandblasting

Product Details:

Place of Origin: Shanxi, China
Brand Name: Zhengtong
Certification: ISO9001, ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation

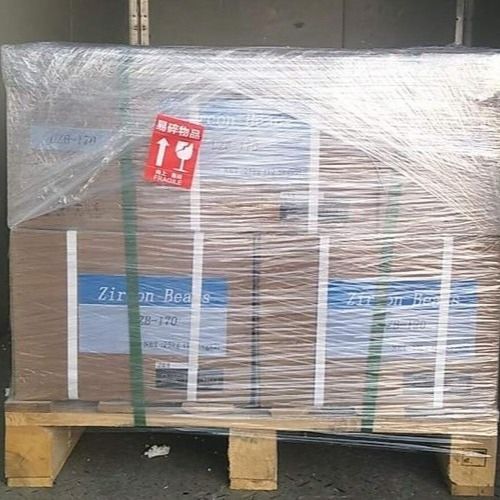

Packaging Details: 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet
Delivery Time: 5-10 days
Supply Ability: 1500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

bead blasting material

,

ceramic bead blasting media

Product Description

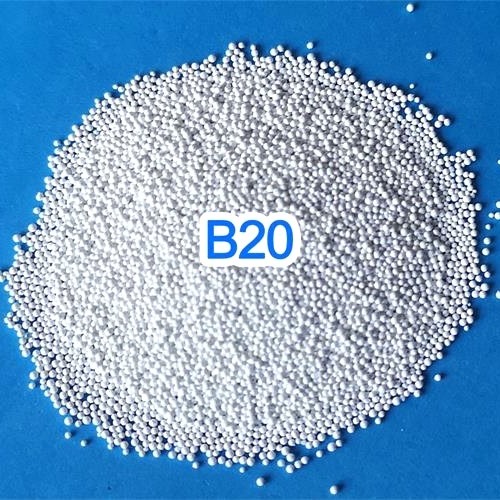

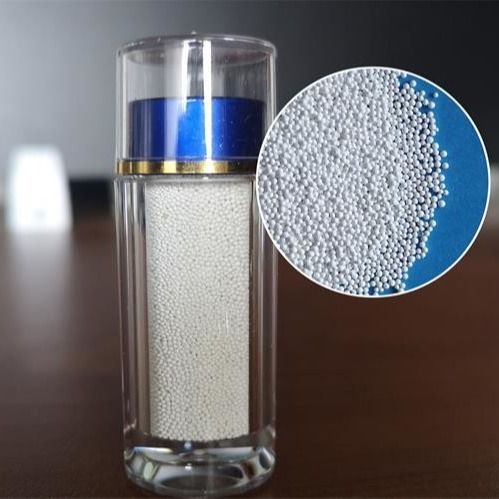

Ceramic Bead Blasting Media B20 Replacing Glass Beads in Sandblasting



Description



Ceramic blasting media is also called Ceramic beads, or Zirconium Silicate Ceramic Beads, is zirconia-based blasting media, manufactured by electric/thermal fusion of zirconium oxides sand. ZrO2 62-65%, HS code 691410.

The internal structure is made up of a crystalline ceramic phase bonded by an amorphous silica phase resulting in high impact properties coupled with good hardness. It is spherical and of smooth surface, much lower roughness than glass beads, leading beautiful satin shine finish on the blasting work piece and easier to clean.



Specification



Manufacturing process: Melting method



ZrO2 SiO2 Al2O3 Other
60-66%, 25-30% max. 7-13% max. 5-8%



Color Bulk Density True Specific Density Vickers Hardness
White 2.3g/cm3 3.85g/cm3 700 HV





Grit size B20 B30 B40 B60 B80 B100 B120
Microns μm 600-850 425-600 250-425 125-250 180-250 125-180 63-125
Grit size B125 B170 B205 B400 B505

Special sizes

can be customized

Microns μm 0-125 45-90 0-63 30-63 0-63
Grit size Z850 Z600 Z425 Z300 Z210 Z150 Z100
Microns 850-1180 600-850 425-600 300-425 210-300 150-210 100-150





Features of Ceramic beads blasting media



Strong chemical resistance

Guarantees constant performance eg. consistent Surface blasting effect.

Low dust emission

Does not contaminate the work piece surface, and no hidden danger of silicosis, it is harmless to the human body.

Not easy to break

Recyclable,and can reduce the refueling times, improve working efficiency.



Application



Sandblasting finishing

  • 1) 3C products - Sandblasting Finishing

Alloy shell, middle frame and built-in parts of computers, mobile phones, cameras, etc. - sandblasting finishing

Clean burrs to form film-light decorative or fine reflective surface, on alloy workpiece such as mobile phone to achieve different reflection or matte.

  • 2) Kitchen Industry-Sandblasting finishing

Stainless steel cutlery and kitchen utensils sandblasting finishing

  • 3) Golf club - Sandblasting finishing

Golf club & ball head alloy surface treatment Sandblasting finishing



Other applications in

Sandblasting cleaning

Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning

Pipeline - Sandblast Cleaning

Molds - Sandblast cleaning

Pretreatment

Electroplating, painting, anode-Surface Pretreatment

Hardware parts - Sandblasting to improve lubrication conditions

Shot peening

Aerospace industry-Shot Peening

Automotive industry-Sandblasting reinforcement/ Shot Peening

Machinery, Medical Instrument - Sandblast finishing/shot peening



Applicable Equipment



Mainly Suction dry blasting machine





Production Process of Ceramic beads blasting media



Ceramic Bead Blasting Media B20 Replacing Glass Beads in Sandblasting 0





Contact us



No matter you’re the end users, blasting service suppliers, sandblasting equipment dealers or ceramic blasting media and other blasting abrasive distributors, welcome to contact us. More details of ceramic blasting beads, updated prices and samples will be available.
