• No Silicosis Zirconia Ceramic Blasting Media Zirconium Sand B80 / B100
No Silicosis Zirconia Ceramic Blasting Media Zirconium Sand B80 / B100

No Silicosis Zirconia Ceramic Blasting Media Zirconium Sand B80 / B100

Product Details:

Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: B20-B400

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet
Delivery Time: 3-10 days depending on the order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200mt per month
Get Best Price Contact Now

Detail Information

Product Name: Zirconia Ceramic Beads,Zirconium Sand Usage: Sandblasting
Specification: B80 B100 Process Method: Melting
ZrO2: 62-66% Vicker Hardness: 700 HV
High Light:

bead blasting material


ceramic bead blasting media

Product Description

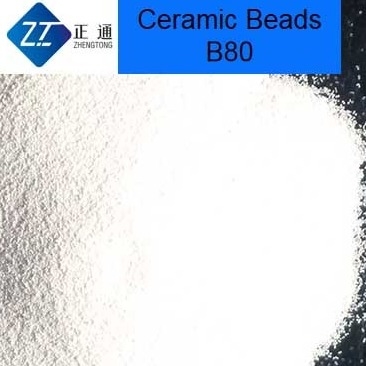

No Silicosis Zirconia Ceramic Beads Zirconium Sand B80 B100 for Sandblasting

1. Product Description

Ceramic Blasting beads is also called as Zirconia ceramic beads,it is widely used as one blasting

media in various application as well as glass beads and steel beads. Here is the simple compration

chart for the aboved three blasting beads:


Item Ceramic Blasting Beads Glass Beads Steel Beads
Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
C 0.8-1.2%
Si 0.45-1.50%
Mn 0.60-1.20%
Vickers Hardness ≥700 HV ≥560HV ≥700 HV
True Specific Gravity ≥3.85 g/cm3 ≥2.5g/cm3 ≥7.8 g/cm3
Particle Size 0.04-0.85mm 0.045-0.85mm 0.05-0.60mm
Usage Blasting Media Blasting Media Blasting Media
Ferrous Contamination No Ferrous No Ferrous Ferrous
Dust Pollution Little Large Medium
Recyclable Times Multiple One time or twice Multiple
Power consumption Low Low High
Service Life Long 1/25 of ceramic beads Long
Equipment Wear Rate Low Low High
Blasting Effect High finish
No discoloration
High finish
White discoloration
Low finish
Black discoloration


Compared with the glass beads,ceramic beads has long service life, which is about 25 times as the

one of glass beads, it will also achieve better visual effect and texture as well as lower toughness

compared with the one treated by glass beads.


Compared with the steel beads, ceramic beads are able to be applied where ferrous contamination

is not allowed.

2. The specification of Zirconia Ceramic Beads Zirconium Sand:

Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized


3. Product Features of Zirconia Ceramic Beads Zirconium Sand


High hardness and High Durability

Zirconia Ceramic Beads has good spherical and high hardness,it is not easy to be broken in

the blasting process, then it is more durable, it will offer at least 20-30 times longer service life

compared with the one of glass beads.


Consistent Blasting Effect

Its lower breakdown rate ensures longer refuel interval,then the beads in the blasting equipment

is more stable and consistent, then it finally offers more consistent blasting effect with lower surface

toughness compared with other blasting  media of glass beads and steel shot;


No Ferrous Contamination

It contains zero iron,there is no ferrous contamination to the treatment surface,it is able to replace

the steel shot where no ferrous contamination is not acceptable.


No hiden danger of silicosis

Ceramic beads generated low dust in blasting process,it offers a cleaner working environment and

also no hiden danger of silicosis,which is good for worker’s health.


4. Main Application of Zirconia Ceramic Beads Zirconium Sand
In the civil field:

It is widely used for surface cleaning of various metal products such as aluminium alloy,titanium alloy

and stainless steel parts (stainless steel tableware, kitchen utensils), textile machinery parts, punching

and forging tools, machine tools, medical equipment, etc.

It is also used for finishing and surface pretreatment to remove the scale, rust, burrs etc..

It is also widely used to clean various industrial tools such as glass processing, tire manufacturing and

plastic molding.


In the military field:

it is usually used for surface strengthening of precision casting parts such as aircraft turbine blades ,

ordnance, and various spring gear hydraulic parts to eliminate the internal stress.


5. Applicable Equipment:


Manual Sandblasting machine;

Automatic Blasting Machine;

Open Blasting Machine;

Sandblasting Room


6. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
No Silicosis Zirconia Ceramic Blasting Media Zirconium Sand B80 / B100 0

7. FAQ

Are you direct Manufacturer of Zirconia Ceramic Beads ?

Yes,we are professional manufacturer,equipped with the most advanced production line and testing



Are you able to provide free samples?

Yes, few quantity free sample is avialable.


Could you please name your some clients?

Yes, our clients includes Foxconn, Samsung Electronics etc.
