60 - 66% ZrO2 Zirconia Beads Blasting Abrasive Media , Zirconium Oxide Beads B120
Product Details:
| Place of Origin: | Shanxi,China |
| Brand Name: | FUDA |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet |
| Delivery Time: | 3-10 days depending on the order quantity |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200mt per month |
|
Detail Information |
|||
| Product Name: | Ceramic Blasting Media | Usage: | Golf Club Finish |
|---|---|---|---|
| Specification: | B120 | Particle Size: | 0.063-0.125mm |
| Vicker Hardness: | 700HV | True Gravity: | ≥3.85 G/cm3 |
| High Light: | bead blasting material,ceramic bead blasting media |
||
Product Description

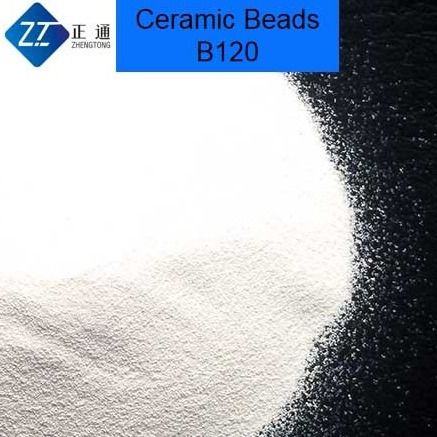

Ceramic Blasting Media 62-66% ZrO2 Zirconia Beads B120 for Golf Club Finish
1. Product Description
Ceramic Beads Contains 62-66% ZrO2,25-30% SiO2,7-13% AL2O3.It is obtained from Zirconium sand in
an electric arc furnace at high temperature.
Different from the 95 zirconia Beads and zirconium Beads,ceramic beads is widely used for blasting purpose.
2. The Comparation between Ceramic Blasting Beads,65 Zirconium Silicate Beads,95 Zirconia Beads
| Item | Ceramic Blasting Beads | 65 Zirconium Silicate Beads | 95 Zirconia Beads |
| Chemical Index | ZrO2 62-66% SiO2 25-30% Al2O3 7-13% |
ZrO2 ≥65% SiO2 25-30% Others ≤1.0% |
ZrO2 ≥95% Y2O3 ≥4.5% Others ≤0.5% |
| Vickers Hardness | ≥700 HV | ≥900HV | ≥1100 HV |
| True Specific Gravity | ≥3.85 g/cm3 | ≥4.0g/cm3 | ≥6.0 g/cm3 |
| Bulk Density | ≥2.3g/cm3 | ≥2.5g/cm3 | ≥3.7g/cm3 |
| Particle Size | 0.04-0.85mm | Φ0.1-10mm | Φ0.1-50mm |
| Usage | Blasting Media | Grinding Media | Grinding Media |
Seen from the above chart,ceramic blasting beads is widely used in blasting applications and
has different chemical and physical characteristics compared with the other two kinds of
zirconia beads.
3. Specification of Ceramic Blasting Media Zirconia Beads
| Particle Size | |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized | |
3. Main Application of Blasting Ceramic Beads
Ceramic Beads B120 is one popular particle size,it is widely used for the surface finishing of golf
crub as well as the precison instruments for medical implants.
In addition, Ceramic Beads is also used for sandblasting the light metal surface such as 3C
Products, Aluminum,alluminum alloy,Titanium alloy,stainless steel etc, surface cleaning for various
pipelines and molds.
Ceramic Beads also has many different application,please review our other appliations from our website.
4. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
5.Why Choose us?
Professional Manufacturers of Zirconia Ceramic Beads;
Stable quality and good after-sales service;
Main supplier of Foxconn,Samsung etc.
