Ceramic beads blasting media ZrO2 60% Min. B100 size 0.106-0.180mm
Product Details:
Place of Origin: | Shanxi, China |
Brand Name: | Zhengtong |
Certification: | ISO9001, ISO14001 |
Model Number: | B100: 0.106-0.180mm |
Payment & Shipping Terms:
Minimum Order Quantity: | 100KGS |
---|---|
Price: | Negotiation |

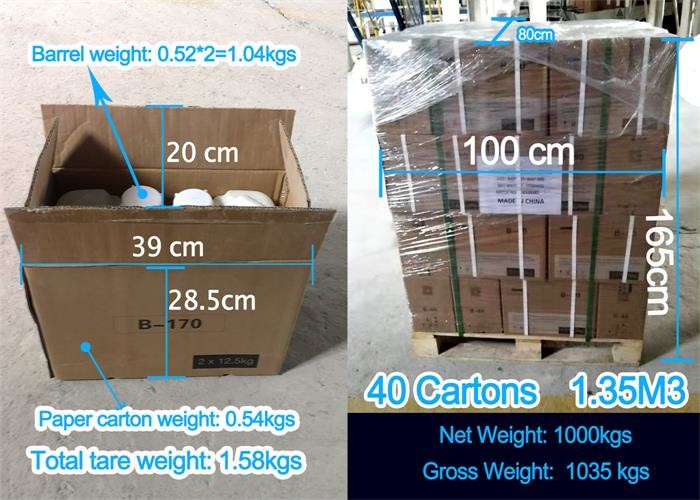

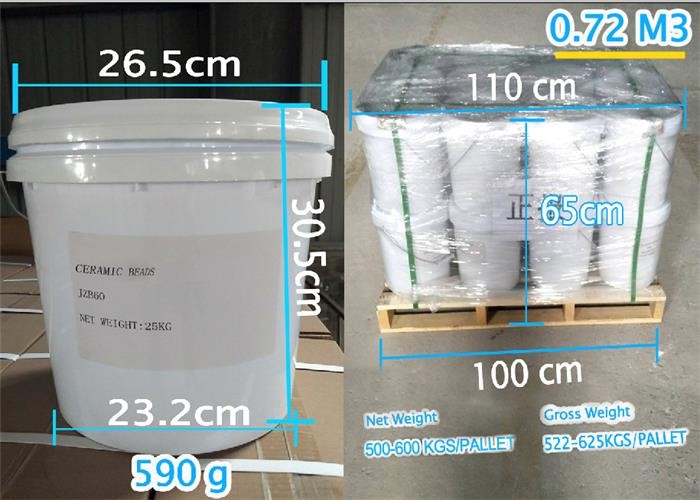

Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
Delivery Time: | 5-10 days |
Supply Ability: | 1500mt per year |
Detail Information |
|||
Commodity: | Ceramic Beads Blasting | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
---|---|---|---|
Produce Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
True Density: | 3.85g/cm3 | Hardness: | 700HV |
Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | Free Sample: | Available |
Highlight: | low dust blasting media,ceramic cleaning media |
Product Description

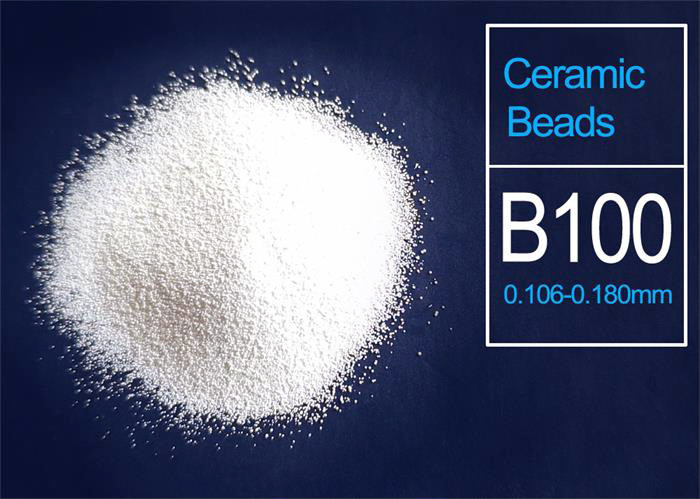

Ceramic beads blasting media ZrO2 60% Min. B100 size 0.106-0.180mm
Description
Ceramic Bead also called zirconium silicate ceramic beads, zirconia micro beads, ceramic blasting media etc., is produced by melting process
at more than 2000℃ temperature , and then blow into micro beads B20-B505, It's with smooth surface, strong toughness, not easily broken, recyclable, and no dust pollution, is high quality sandblasting media for metal parts.
Main used for:
- Sandblasting satin finish
- Sandblasting cleaning
- Deburring
- Descaling
- Pretreatment before spraying/coating
- Shot peening
Applicable for Dry sandblasting, wet sandblasting, vapour blasting and microblasting, etc.
Specification
Chemical Index | ZrO2 | SiO2 | Al2O3 |
60-65% | 25-30% | 7-13% | |
Typical Value | 62.20% | 26.10% | 9.05% |
Bulk Density | 2.3g/cm3 | ||
Specific Density | 3.85g/cm3 | ||
Vickers Hardness | 700HV |
Particle Size Range
B20: 0.600-0.850MM |
B120: 0.063-0.125MM |
B30: 0.425-0.600MM |
B150: 0.053-0.106MM |
B40: 0.250-0.425MM |
B170: 0.045-0.090MM |
B60: 0.150-0.300MM |
B205: 0.000-0.063MM |
B80: 0.125-0.212MM |
B400: 0.030-0.063MM |
B100: 0.106-0.180MM |
B505: 0.010-0.063MM |
Feature of Ceramic beads blasting meida
1. High hardness, long life and good elasticity
The ceramic beads has high hardness, vickers 700HV.It ensures that the ceramic beads can
be shot peened for high-strength and ultra-high-strength structural parts. The small deformation ensures that
the shape of the projectile does not change during impact.
2. Recyclable and improving efficiency
Ceramic bead blasting media has long service life and high cost performance: The life of ceramic bead is more
than 20 times that of glass beads.
Ceramic beads not easy to be broken, and low wear, it can effectively reduce the materials replacement times
and reduce the cost of workers to improve efficiency.
Application
Steel pipe, aluminum alloy pipe, titanium alloy pipe inner wall sandblasting and rust cleaning
When cleaning the inner wall of the pipeline, a pressure-feeding sand blasting machine and an air compressor
with sufficient capacity are required to connect the blasting hose of the sand blasting machine with the inner wall
cleaner of the pipeline, and send it out by the blasting machine. The high-speed air ceramic beads abrasive mixed
flow is sprayed onto the conical nozzle of the inner wall cleaner of the pipeline, so that the ceramic sand abrasive is
guided to form a cone shape diffusion, thereby impacting the inner wall of the pipeline to achieve the purpose of
cleaning the inner wall of the pipeline.
Other application for
- Sandblasting finishing
- Surface cleaning
- Surface Pretreatment
- Renovation of old work parts etc..
For all below materials surface treatment:
- Plastic
- Aluminum
- Copper
- Stainless steel
- Aluminum alloy
- Magnesium alloy
- Titanium alloy, etc.
Suitable sand blasting machine:
- Manual sand blasting machine,
- Automatic sand blasting machine,
- Open type series of sand blasting machine,
- Blasting room series.
