B120 Abrasive Media Blasting , Aerospace Industry Blasting Finishing Media Blast And Abrasive

Minimum Order Quantity : 100KGS Price : Negotiation

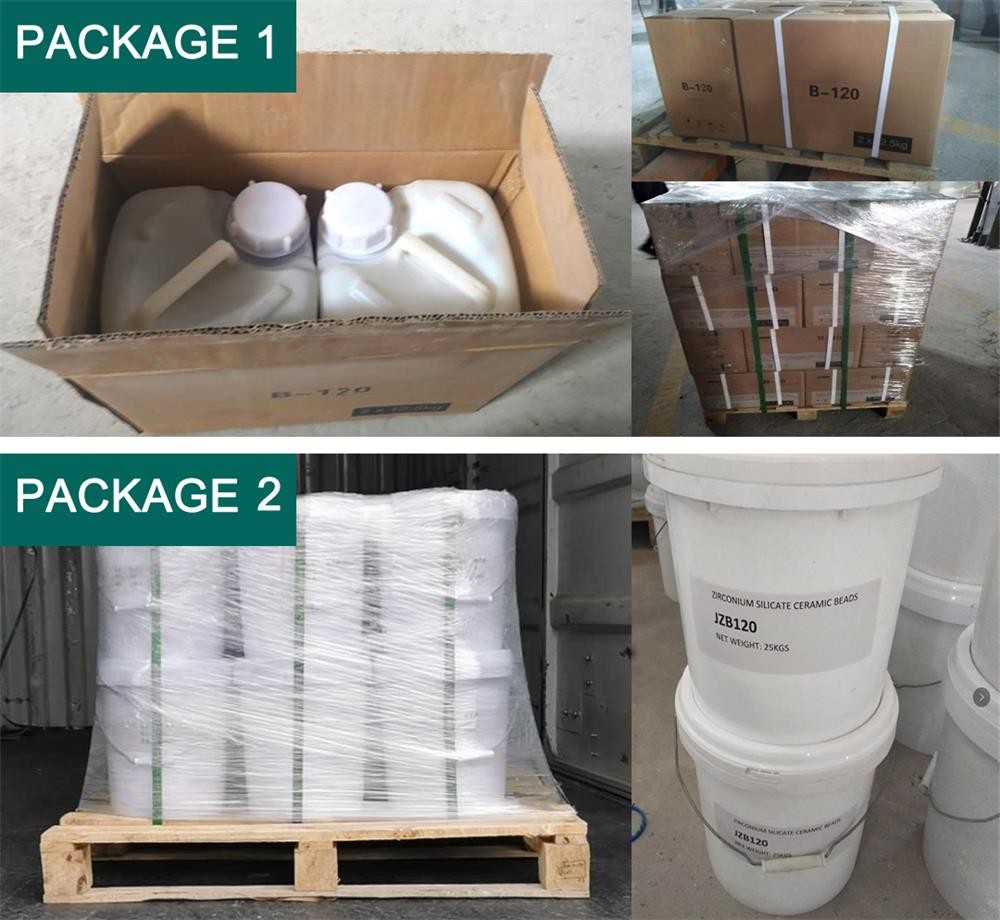

Packaging Details : 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet Delivery Time : 5-10 days
Supply Ability : 1500mt per year
Place of Origin: Shanxi, China Brand Name: Zhengtong
Certification: ISO9001, ISO14001 Model Number: B120

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

abrasive blasting media

,

bead blasting material

Product Description

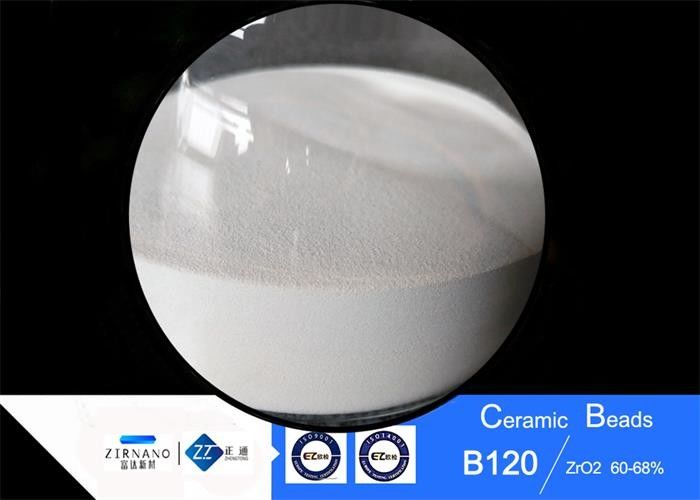

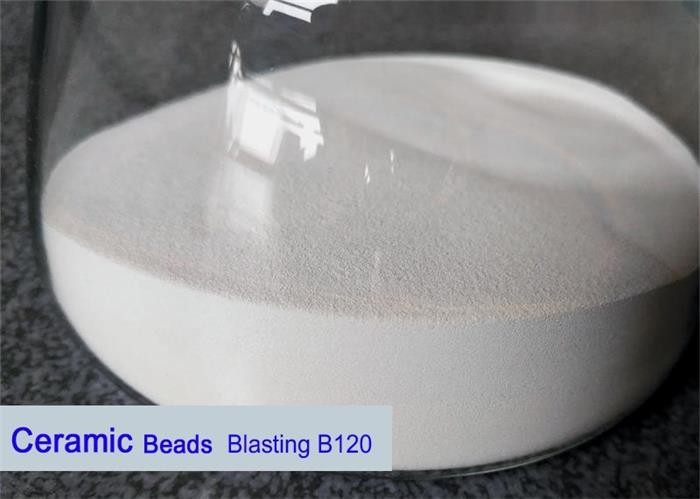

Ceramic beads blasting media B120 for Aerospace industry-Blasting



Description of Ceramic beads blasting media



The ceramic beads are made of zirconium sand mineral through electric fusion, with fine internal structure of zirconium crystals in a glassy silicon dioxide cover, thus have high density and high impact resistance features.

It’s high quality blasting media, suitable for surface cleaning and deburring, and precise surface treatment on stainless steel, non-ferrous metals, and Aluminum alloy work pieces, etc..





Specification of Ceramic beads blasting media



Manufacturing process: Melting method



ZrO2 SiO2 Al2O3 Other
60-66%, 25-30% max. 7-13% max. 5-8%



Color Bulk Density True Specific Density Vickers Hardness
White 2.3g/cm3 3.85g/cm3 700 HV



Sizes Available:



B20:0.600-0.850mm           B80:0.180-0.250mm



B30:0.425-0.600mm           B120:0.063-0.125mm



B40:0.250-0.425mm           B170:0.045-0.090mm



B60:0.125-0.250mm           B205:0.000-0.063mm



Special specifications can be customized.



Features of Ceramic beads blasting media



Strong chemical resistance

Guarantees constant performance eg. consistent Surface blasting effect.

Low dust emission

Does not contaminate the work piece surface, and no hidden danger of silicosis, it is harmless to the human body.

Not easy to break

Recyclable,and can reduce the refueling times, improve working efficiency.



Application of Ceramic beads blasting media



Aerospace industry-Blasting finishing

Suitable for aerospace engine components, aircraft landing gear, gear transmissions, aero-engine blades, and aircraft wing fine sandblasting.

For example the aero-engineblades, the blade will be cooled from the high temperature metallization liquefaction in the injection model. After the outflow, metal blade surface is rough, and there are bumps, burrs, etc. Ceramic beads sandblasting can remove the flaws, removing the burrs and play the enhanced effect.

Other application like Sandblasting finishing, Surface cleaning, Surface Pretreatment etc..
