ZrO2 60 - 66% Ceramic Blasting Media For 3C Products Sandblasting Finishing
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B20-B400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | abrasive blasting media,ceramic bead blasting media |
||
Product Description
ZrO2 60-66% ceramic beads blasting media for 3C products Sandblasting Finishing
DESCRIPTION
Ceramic beads blasting media also called zirconia ceramic beads, with ZrO2 60%-68%, is made from zirconium sand, melting and blending in the high temperature mine heat furnace, then made to micro beads.
It’s one of high cost performance blasting media with 20 times longer life than glass beads, and can be recycle because it does not break down during sandblasting.
Suitable for the surface blasting treatment of stainless steel, non-ferrous metals, and certain composite materials.
SPECIFICATION
Manufacturing process: Melting method
| ZrO2 | SiO2 | Al2O3 | Other |
| 60-66%, | 25-30% max. | 7-13% max. | 5-8% |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |
Sizes Available
| B20 | B30 | B40 | B60 |
| B80 | B100 | B120 | B170 |

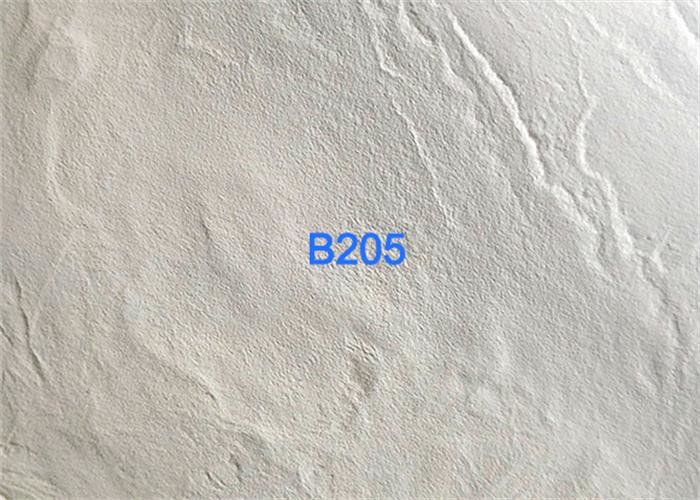

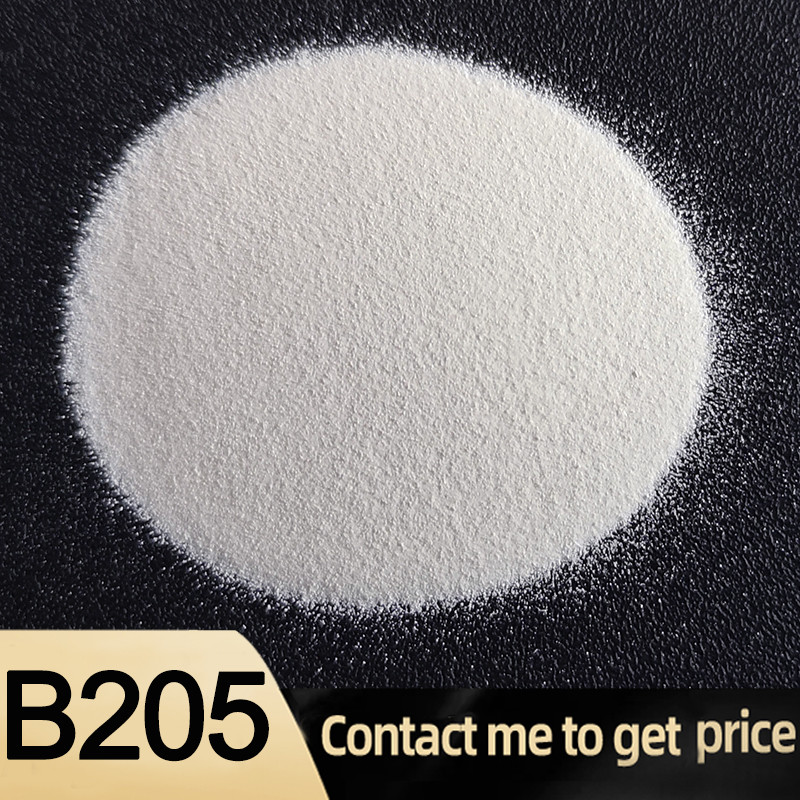

| B205 | B400 | Special sizes can be customized. | |
FEATURES
Strong chemical resistance
Guarantees constant performance eg. consistent Surface blasting effect.
Low dust emission
Does not contaminate the work piece surface, and no hidden danger of silicosis, it is harmless to the human body.
Not easy to break
Recyclable,and can reduce the refueling times, improve working efficiency.
APPLICATION
Application in 3C products Sandblasting Finishing
Detailed introduction
Smartphone aluminum-magnesium alloy metal shell / metal frame:
ceramic beads (zircon sand) sandblasting process, comfortable grip, rich in metal texture, help to enhance the stability of the machine. The hardness of the frame in the zircon sand blasting is doubled. The perfect combination of masculine and feminine gives a unique temperament from the inside to the outside.
Aluminum-magnesium alloy laptop: The delicate ceramic bead blasting process can make the product's simple characteristics more outstanding, full of texture, overall more beautiful, more fashionable.
Keyboard metal frame / metal surface: Ceramic bead blasting metal keyboard touch surface is more delicate, has a very comfortable matte feel, not easy to stick fingerprints.
Metal casing mobile power supply: The surface is treated by zircon ceramic beads blasting oxidation process, effective against rust, and the texture is also delicate, and it is resistant to wear and abrasion, and the heat dissipation is also good.
Bluetooth speaker aluminum frame: Treated by ceramic beads blasting, it is more anti-slip, wear-resistant, simple and stylish, and feels more comfortable.
Smart Bracelet: The appearance of aluminum alloy zirconia ceramic beads blasting technology ensures the strength, texture and smooth and delicate touch of the bracelet.
Headphones: The earphone body is made of ultra-light alloy zinc alloy and ceramic sand blasting, which highlights the tough product quality of the headphones, ensuring the comfort of wearing and listening.
Other application
Sandblasting finishing
Aerospace industry, Automotive industry, Kitchen Industry-Machinery industry and Casting and forging parts, welded parts, heat-treated parts
Surface cleaning
Pipeline, Molds Sandblast cleaning
Surface Pretreatment
Electroplating, painting, anode, Hardware parts sandblasting to improve lubrication conditions
APPLICABLE EQUIPMENT
Manual sandblasting machine
Automatic sandblasting machine
Open type sandblasting machine
Sandblasting machine room
