Ceramic Beads For Blasting / shoting Hot Selling Ceramic Beads Blasting
Product Details:
| Place of Origin: | Zhengzhou,China |
| Brand Name: | ZT |
| Certification: | ISO9001 |
| Model Number: | B170 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25KG |
|---|---|
| Price: | Negotiated |
| Packaging Details: | bag/drum Barrel +Pallet |
| Supply Ability: | 200mt/month |
|
Detail Information |
|||
| High Light: | Ceramic beads blasting,Hot selling ceramic beads blasting,Shoting ceramic beads blasting |
||
|---|---|---|---|
Product Description

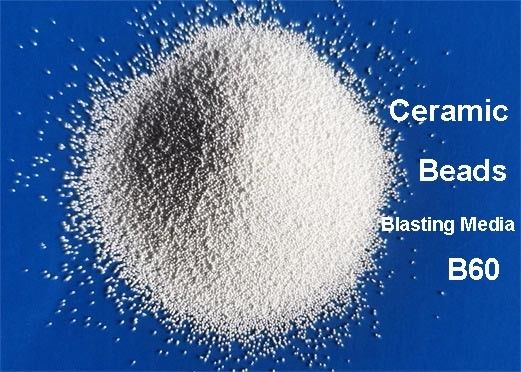

CERAMIC BEADS BLASTING MEDIA/CERAMIC SHOT PEENING
The (zirconium) ceramic beads is made from zirconium sand, melting and blending in the high temperature mine heat furnace, then made to micro beads by special technology, its features are high hardness, good elasticity, high gloss and high impact strength.
Chemical Index:
| ZrO2 | 60-66% |
| SiO2 | 25-30% |
| Al2O3 | 7-13% |
Physical Index:
| Processing: | Melting |
| Bulk Density: | 2.3g/cm3 |
| True Specific Gravity | 3.85 g/cm3 |
| Vickers Hardness: | 700 kg /mm2 |
Particle Size
B20: 0.600-0.850mm B120: 0.063-0.125mm
B30: 0.425-0.600mm B150: 0-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0-0.063mm
B80: 0.125-0.212mm B400: 0.030-0.063mm
B100: 0.106-0.180mm B505: 0.010-0.030mm
Z100:0.100-0.150mm Z150: 0.150-0.210mm
Z210:0.210-0.300mm Z300:0.300-0.425mm
Z425:0.425-0.600mm Z600:0.600-0.850mm
Z850:0.850-1.180mm
Special size can be customized.
High efficiency
Ceramic beads is round and smooth,without damage the workpieces, it has high hardness, long life and good elasticity, it could be rebounded in multi angles in the process of sandblasting ,especially suitable for the complicated structure(Metal or plastic workpieces), eliminate the stress and improve the fatigue life of the workpiece.
High Price/ performance ratio
Compared to glass beads, the service life could be prolonged at least 20- 30 times. The workpiece treated by ceramic beads will achieve better visual effect and texture as well as lower toughness compared with the one treated by glass beads.
The greater density of ceramic beads makes it higher modulus of elasticity and greater impact energy,it will reduce shot peening pressure and energy consumption to get the same shot peening effect.
Only few ceramic beads will be broken in the process of usage,the non-broken ones will maintain the original features in shape,particle size,hardness as well as smoothness,then it is recyclable,and can reduce the refueling times, improve working efficiency,then finally save the production cost.
Compared to steel beads, it has superior smoothness,it can be used in peening applications in the place of steel shots where ferrous contamination is not acceptable.
Environmental protection
Not easy to break during sandblasting process, no dust, clean, and no hidden danger of silicosis, it is harmless to the human body.
Sandblasting Applications:
1)3C Products sandblasting Finishing
Sandblasting finishing for alloy shell, middle frame and built-in parts of computers, mobile phones, cameras, etc.,clean burrs to form film-light decorative or fine reflective surface, on alloy work-piece such as mobile phone to achieve different reflection or matte.
2)Electroplating, painting, anode-Surface Pretreatment
Surface Pretreatment for electroplating, painting, anode etc., to remove dirt and increase product surface adhesion.
3)Kitchen Industry
Stainless steel cutlery and kitchenware sandblasting finishing
4)Medical Instrument
Remove the micro burrs in the medical instrument and make small rounded conners at the
junction of two surfaces,enhance the smoothness and texture.
5)Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning
Clean all the dirt on the surface of the workpiece after casting and forging, welding and heat treatment (such as oxide scale, oil stain and other residues), improve the smoothness of the workpiece, and expose to a uniform metallic color,achieving smooth and non-reflective requirements on the surface.
6)Pipeline - Sandblast Cleaning
Metal pipes such as copper pipes and steel pipes are cleaned and polished on the inner and outer walls.
7)Molds cleaning
Cleaning of glass bottles, tires, etc., rust, dirt and impurities.
8)Hardware parts and mechanical gears - Sandblasting to improve lubrication conditions
It can produce uniform and fine uneven surface on the surface of the part, so that the lubricating oil can be stored, improve the lubrication condition and reduce the noise.
Shot Peening Applications:
1)Aerospace industry
Shot peening for aerospace engine components, aircraft landing gear, gear transmissions, aero-engine blades, aircraft wing
2)Automotive industry
Shot peening for gearbox gears, automotive aluminum hubs, piston components/shock absorbers, engine crankshaft
CERAMIC BEADS BLASTING MEDIA/CERAMIC SHOT PEENING
