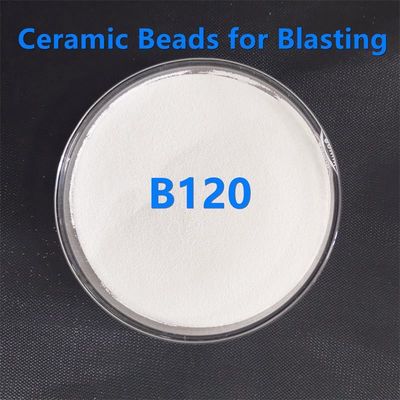

Solid B120 Zirconia Ceramic Bead Blasting Round Ball For Pretreatment
Product Details:
| Place of Origin: | Henan,China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, IS014001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kgs Barrels+Pallet |
| Delivery Time: | 3-10 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mts per month |
|
Detail Information |
|||
| Product Name: | Ceramic Blasting Beads | Color: | White |
|---|---|---|---|
| Chemicals: | 60-66% ZrO2，SiO2 25-30% | Bulk Density: | 2.3 G/cm3 |
| Specific Density: | 3.85g/cm3 | Vicker Hardness: | 700HV |
| Shape: | Solid Round Ball | Application: | Blast Cleaning, Surface Preparation, Surface Finishing And Shot Peening |
| High Light: | Solid Round Ball Ceramic Bead Blasting,Pretreatment B120 Ceramic Bead Blasting,2.3 g/cm3 Ceramic Bead Blasting |
||
Product Description
1. Product Description
Ceramic beads sand blasting media was made by zirconium powder through a unique formula, special production process and pretreatment, then it is made by more than 2000°C high temperature phase method. Especially it is very suitable for the shot blasting during the process of metal parts production and maintenance and peen forming of light alloy components.
We supply B series sandblasting media and Z series shot peening media.
2. Technical Parameters of Zirconia ceramic beads blasting (Comparing with glass beds and steel shot)
|
Parameters- (Comparing with glass beads and steel shot)
|
||||||
| Parameters | Ceramic Beads | Glass Beads | Steel Shot | |||
| Chemical index | ZrO2+SiO2+Al2O3 | SiO2+NaO2 | C+Si+Mn+S+P | |||
| Vickers Hardness | ≈700HV | ≈560HV | ≈700HV | |||
| Rockwell Hardness | ≈60HRC | ≈46HRC | ≈60HRC | |||
| True Density | 3.85g/cm3 | 2.6 g/cm3 | 7.8 g/cm3 | |||
| Size range | 0.04-0.85mm | 0.045-0.85mm | 0.05-0.60mm | |||
| Shape | spherical | spherical | fillet | |||
| Dust Pollution | Very little | big | medium | |||
| Metal Pollution | no | no | spherical | |||
| Recycling times | Multi-time | 1-2 times | Multi-time | |||
| Work life | Long | Low 1/25 of ceramic beads | Long | |||
| Power consumption | Low | Low | High | |||
| Equipment wear loss | Low | Low | High | |||
| Sandblasting effect | High finish, no discoloration | High finish, whitish | Low finish, darken | |||
3. Fearture of Zirconia ceramic beads blasting
1)Lower metal surface roughness.
2)Less operating pressure and reduced abrasive velocity needed. So it has far less abrasive breakdown and dust generation for cleaner working environment.
3)White color, high sphericity and smooth surface beads.
4)High hardness and toughness, strong mechanical resistance, but gentle with equipment and tools preserving work parts.
5)Chemically inert, no metallic contamination for treated parts.
4. Application of Zirconia ceramic beads blasting
1) 3C products - for Sandblasting Finishing
2) Aerospace industry-for Blasting finishing
3) Automotive industry-for sandblasting reinforcement
4) Kitchen Industry-for Sandblasting finishing
5) Machinery, Medical Instrument - for Sandblast finishing
6) Casting, forging , welded, heat-treated parts - for Sandblast Cleaning
7) Pipeline - for Sandblast Cleaning
8) Molds - for Sandblast cleaning
9) Electroplating, painting, anode-for Surface Pre-treatment.
10) Hardware parts - for Sandblast to improve lubrication conditions.
5. Why choose us?
1)We have professional production line in Henan and Shandong Province, China;
2)Our products are under strict quality control on process and tolerance, and passed the ISO9001 and ISO14001；
3)1kg samples are for free；
4)Customized production is accepted based on your drawing or specification；
5) We offer OEM and ODM service.
