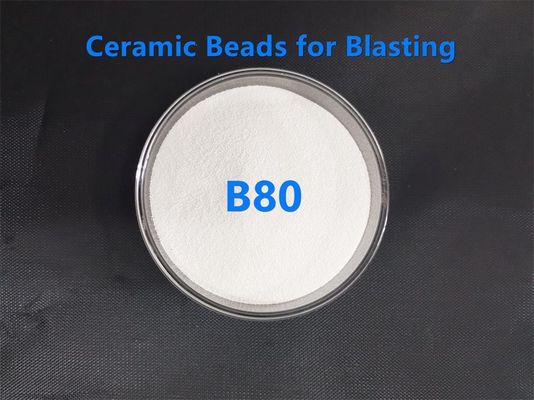

B80 Zirconia Ceramic Bead Blasting For Mental Clean High Density

B80 Zirconia Ceramic Bead Blasting For Mental Clean High Density

Product Details:

Place of Origin: Henan,China
Brand Name: Zhengtong
Certification: ISO9001, IS014001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable

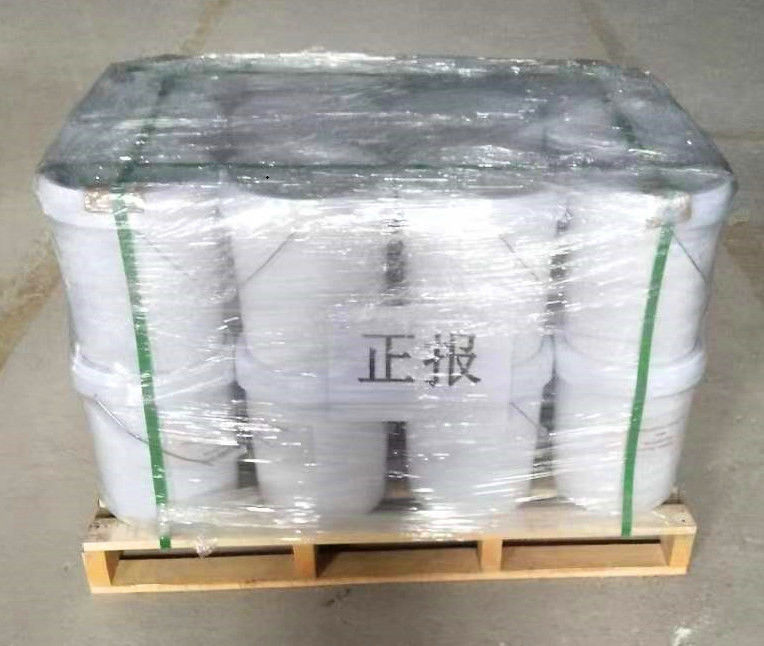

Packaging Details: 25kgs Barrels+Pallet
Delivery Time: 3-10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200mts per month
Get Best Price Contact Now

Detail Information

Features: High Density, High Strength And Long Life Product Name: Zirconia Ceramic Blasting Media
Color: White Chemicals: 60-66% ZrO2,SiO2 25-30%
Bulk Density: 2.3 G/cm3 True Density: 3.85g/cm3
Vickers Hardness: 700HV Application: Sand Blasting And Shot Blasting
High Light:

Zirconia Ceramic Bead Blasting High density


B80 Zirconia Ceramic Bead Blasting


3.85 g/cm3 Zirconia Ceramic Bead Blasting

Product Description

1. Product Description

The main component of ceramic beads is zirconia, and ceramic beads are mainly used for surface treatment, like sand blasting and shot peening. The production process of ceramic shot is to melt high-quality imported zircon sand into liquid at high temperature, and then spray it into balls.

The zirconia ceramic balls are sieved and removed by magnetic separation to get particles with high roundness, high strength and uniform particle size. The spherical particles of ceramic beads can help to achieve better surface brightness during sandblasting, while the workpiece itself does not change color.

Ceramics beads are widely used for sandblasting and surface treatment of aviation parts, stainless steel plates, structural parts, gulf club, medical equipments, mobile phone / laptop shell, automobile chassis / engine and other industries.


2. Main Technical Data of Ceramic Bead Blasting

Product Process Specific Density Bulk Density
Ceramic beads Electro-fusing 3.85 (g/cm³) 2.3 (g/cm³)
Chemical Components ZrO2 62-68%,SiO2 25-30%,Al2O3 7-13%,Other 1% Max.
Size Available(mm) Blasting-clean/Surface finish Shot peening
B20: 0.600-0.850mm Z150: 0.150-0.210mm,
B30: 0.425-0.600mm Z210: 0.210-0.300mm
B40: 0.250-0.425mm Z300: 0.300-0.425mm,
B60: 0.125-0.250mm Z425: 0.425-0.600mm,
B80: 0.180-0.250mm Z600: 0.600-0.850mm
B100: 0.128-0.18mm Z850:0.850-1.180mm
B120: 0.063-0.125mm Size can be customized
B170: 0.045-0.090mm
B205 : 0.000-0.063mm
B400: 0.000-0.063mm


3. Main Features of Ceramic Bead Blasting


1)Good spherical shape and smooth surface;
2)Outstanding elasticity provides a high impact force.
3)High wear resistance, high impact resistance, and low dust.
4)Cost-effective compared to glass beads, media consumption reduced up to 90% Vs glass Beads.

5)Suitable for dry blasting and wet blasting.


4. Main Application of Ceramic Bead Blasting

1)Medical treatment: surface treatment, like deburring, cleaning, poloshing of stainless steel instruments and equipments;

2)High iron field: it can be used for sandblasting the surface of high iron aluminum alloy parts to improve the metal texture and form a smooth satin effect.

3)Automotive industry: ceramic beads can be used for surface cleaning and deburring of Automotive Engine Castings; It is used to clean the welds and welding spots on the car floor and prepare for subsequent spraying; Used for shot peening of automobile springs to improve fatigue life. It is used for beautification and sandblasting of aluminum alloy automobile wheels to eliminate stress and improve impact resistance.

4)Mold and machining: used for sand blasting and cleaning of stainless steel,copper and aluminum alloy mold, like tire mold and injection mold to improve surface finish.

5)Electronic equipment field: ceramic beads are used for sandblasting the shells of mobile phones, computers and watches made of aluminum alloy or stainless steel. It can adjust the roughness and gloss of the surface as required.

6)Golf Club ball field:used for sandblasting and finishing of surface.

7)  Shot peening of aviation parts: ceramic beads are used to improve the fatigue resistance of carbon steel, titanium alloy, aluminum alloy and other aviation mechanical parts and eliminate surface stress.
