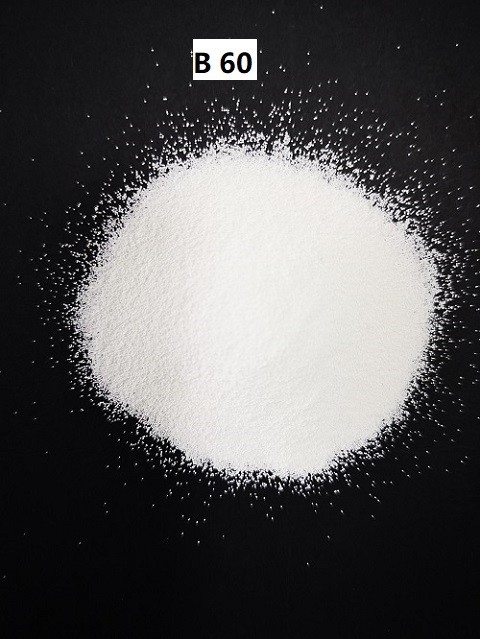

B60 Size Ceramic Beads Blasting Media ZrO2 62% Ceramic Bead Abrasive 0.125-0.250mm
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B20-B505, Z150-Z850 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | B60 Size Ceramic Beads Blasting Media,Ceramic Beads Blasting Media ZrO2 62%,Ceramic Bead Abrasive 0.125mm |
||
Product Description
ZrO2 62% Ceramic blasting media B60 Factory supply
DESCRIPTION OF CERAMIC BEADS B60
Ceramic beads blasting media is a spherical micro bead produced by electro-fusion process at a very high temperature. It is extremely tough and fracture resistant, ensuring consistent peening intensities and surface finishes. Also, it is wonderfully useful for cleaning mechanical parts and cost effective because it can be recycled. At the same time, it is one of the most durable media for cleaning thicker items with minimal material removal. This ceramic media for deburring, shot peening is high cost performance abrasive blasting media.
| Product | Process | Specific Density | Bulk Density | Vickers Hardness |
| Ceramic beads | Electro-fusing | 3.85 (g/cm³) | 2.3 (g/cm³) | 700 HV |
| Chemical Components | ZrO2 62-68% | SiO2 25-30% | Al2O3 7-13% | Other 1% Max. |
| Size Available (mm) |
Blasting-clean/Surface finish | Shot peening | ||
| B20: 0.600-0.850mm | Z150: 0.150-0.210mm, | |||
| B30: 0.425-0.600mm | Z210: 0.210-0.300mm | |||
| B40: 0.250-0.425mm | Z300: 0.300-0.425mm, | |||
| B60: 0.125-0.250mm | Z425: 0.425-0.600mm, | |||
| B80: 0.180-0.250mm | Z600: 0.600-0.850mm | |||
| B100: 0.128-0.18mm | Z850:0.850-1.180mm | |||
| B120: 0.063-0.125mm | Other sizes can be customized against customers’ requirement. | |||
| B170: 0.045-0.090mm | ||||
| B205 : 0.000-0.063mm | ||||
| B400: 0.000-0.063mm | ||||
FEATURES OF CERAMIC BEADS B60
(1) Surface treatment consistency
Consistency of metallic light, the blasting strength is as good as steel balls processing effect, much higher than
the glass beads strength. And can achieve adequate metal depth.
(2) Environmental Friendly
Low crushing rate, no dust, uniform particle size, high wear resistance, re-elasticity, no hidden danger of silicosis,
it is harmless to the human body.
(3) Low equipment loss
Ceramic sand has smooth surface, high sphericity, good elasticity and low wear, can protect the equipment,
whether it is dry spray or wet spray.
APPLICATION OF CERAMIC BEADS B60
- Blast cleaning
Removal of carbon deposits and other impurities from glass making and ubber tire moulds, without damaging the surface or critical edges.
- Surface finish
Deburring
Stainless steel for food and pharmaceutical industries, Medical intrument surface finishing.
- Shot peening
Shot peening ferrous and non ferrous items including aircraft engine blades, blisks, turbines etc.
Ceramic beads are easy to handle in all categories of air or wet pressure blasting equipment including pneumatic blasting rooms.
Also well suited for working in most kinds of wheel turbine blasting machines.
