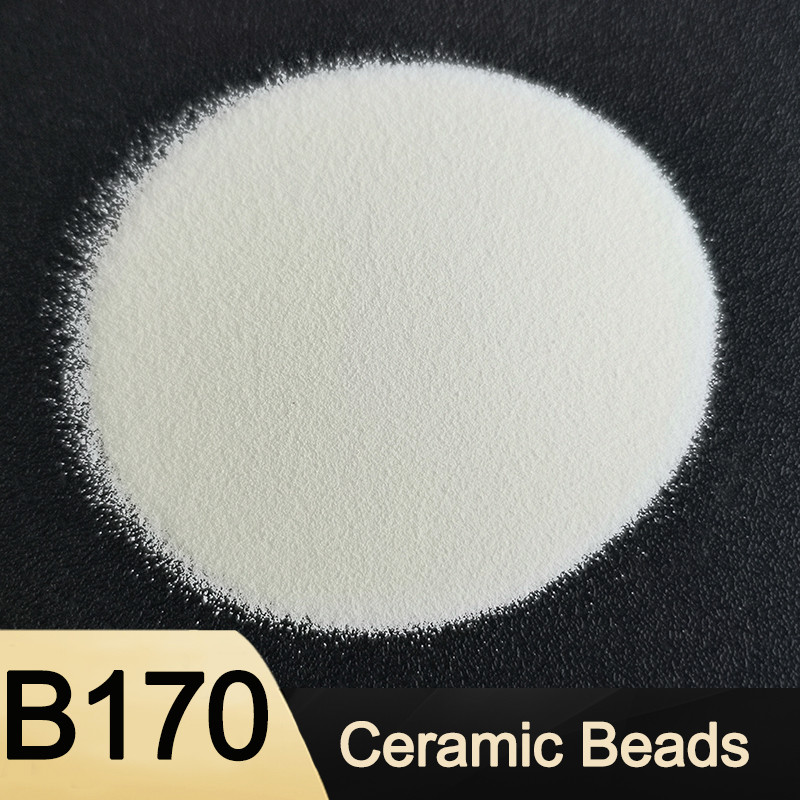

B170 B100 Ceramic Bead Blasting Zirconia Ceramic Bead For Satin Metallic Surface Finish
Product Details:
| Place of Origin: | China |
| Brand Name: | Zirnano |
| Certification: | ISO9001,ISO14001,ROHS,SGS |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg barrel+pallet or 2*12.5kg barrel + Pallet |
| Delivery Time: | Within 3-5 days after order Confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 MTS Per Year |
|
Detail Information |
|||
| Commodity: | Ceramic Beads Blasting Meida | Product Name: | Ceramic Beads |
|---|---|---|---|
| Bulk Density: | 2.3 G/cm3 | True Gravity: | 3.85 G/cm3 |
| Particle Range: | 0-850 μm | Specification: | B20-B505 |
| Vicker Hardness: | 700HV | Sphericity: | ≥ 80% |
| High Light: | B100 Ceramic Bead Blasting,B170 Ceramic Bead Blasting,Zirconia Ceramic Bead For Satin Metallic |
||
Product Description
60-66% ZrO2 Zirconia Sand Ceramic Bead Blasting B170 B205 B400 B505 for Satin Metallic Surface Finish
1. Product Description of Ceramic Bead Blasting
Ceramic beads contains 60-66% ZrO2 ,its fine micro-structure provides its characteristics of high hardness and
good elasticity and impact resistance,which is one iedal blasting media in military and civilian fields.
2. The Main Technical Data of Ceramic Bead Blasting
| Main Index of Ceramic Bead Blasting | ||
| ZrO2 | SiO2 | Al2O3 |
| 60-66% | 25-30% | 7-13% |
| Vicker Hardness | True Specific Gravity | Bulk Density |
| ≥700 HV | ≥3.85 g/cm3 | 2.3g/cm3 |
| Particle Size | ||
| B20 | B30 | B40 |
| 600-850μm | 425-600μm | 250-425μm |
| B60 | B80 | B100 |
| 150-300μm | 125-212μm | 106-180μm |
| B120 | B170 | B205 |
| 63-125μm | 45-90μm | 0-63μm |
| B400 | B505 | / |
| 30-63μm | 0-30μm | / |
3. The comparation between Ceramic Sandblasting and Ceramic Shot Peening
Ceramic Beads blasting media and ceramic shot peening has the same chemical composition and
Properties,while they have different requirements in particle size distribution and spherity.
Ceramic beads blasting is widely used to all kinds of steel, aluminum ,light alloy,plastic products. While ceramic
shot peening is widely used in hard steel, titanium and aluminum alloy to enhance the fatigue resistance.
4. Main Applications of Ceramic Bead Blasting Media
B20&B30:Surface finish for metal Surface;
B40:Mold cleaning for glass bottles;
B60: surface cleaning for inner or outter wall of precision steel pipes & stainless steel ;
B120: Surface finish for Golf head and artifical joint etc.
B170&B205: Surface finish for the metal surface of 3C Products,built-in parts,as well as its accessories.
5. Why choose Zirnano Ceramic Beads?
Higher clearliness
Our ceramic bead are screened more than six times and blow-cleaning under high temperature,
which provides higher clearliness and ensures it to be work normally in humid weather;
More Competitive price/performance Ratio
Our ceramic beads plant is located in mountain area,there is lower labor cost & environmental cost,then the
product cost is lower and more competitive than the one of others’ plants.
More stable quality
Our ceramic beads is made by high quality zircon sand according to stricter formula ratio,all the shipment will
be sampled and tested before loading.
6. Precautions When Using Ceramic Beads for the first time
Please kindly open 1/3 to 1/2 vest of dust collector when using ceramic bead for the first time,because ceramic beads
need the wind to be recycled. This is different from glass beads, when using galss beads,the vest of dust collector is
sealed completely.
