Metal Surface Finishing Ceramic Beads Blasting Media B400 High Toughness
Product Details:
| Place of Origin: | Shanxi,China |
| Brand Name: | FUDA |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20,B30,B40,B60,B80,B100,B120,B150,B170,B205,B400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet |
| Delivery Time: | 3-10 days depending on the order quantity |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200mt per month |
|
Detail Information |
|||
| Color: | White | Shape: | Round |
|---|---|---|---|
| True Specific Gravity: | ≥3.85g/cm3 | Bulk Density: | 2.3g/cm3 |
| Vicker Hardness: | 700HV | Processing Method: | Melting |
| Usage: | Blasting Media For Metal Surface | Free Sample: | Avilable |
| Loading Port: | Tianjin,China Or Qingdao,China | ||
| High Light: | Metal Surface Finishing Ceramic Beads Blasting,Ceramic Beads Blasting Media B400,High Toughness Ceramic Beads Blasting Media |
||
Product Description

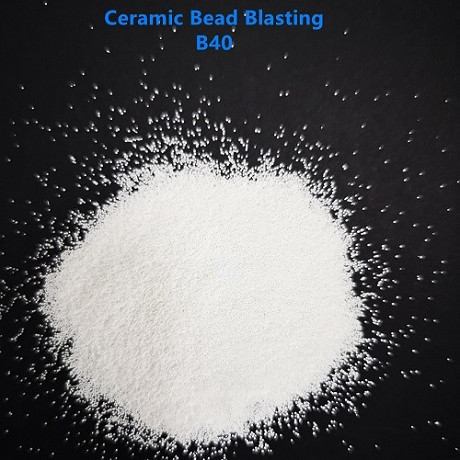

Metal Surface Finishing Ceramic Bead Blasting Media B170/B205 / B400 High Toughness
1. Description of Ceramic Bead Blasting Media
The ceramic bead blasting media is obtained mianly from high quality zirconium sand, melting and blending
in electric furnace under high temperature more than 2000 degrees, then made into micro beads by the
special technology through screening, inspection, packing process.
It has the characteristics of high hardness,high durability and non ferrous contamination. Then it is widely
used as blasting media where non-ferrious required in the working process.
2. Main Technical Index of Ceramic Bead Blasting Media
| Commodity | Main Chemical Index | Main Physical Index |
|
Ceramic Bead Blasting (Melting Method) |
ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 | |
| Al2O3 7-13% |
Vickers Hardness: 700 kg /mm2 |
| Particle Size | |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized | |
3. Product Package:
4. Main Product Features of Ceramic Bead Blasting Media
High Hardness and Good Toughness
It will provide better cleaning power for ceramic beads in blasting process.
High Efficiency and No Surface Contamination to the Treatment
Ceramic beads can be recycled 70-90 times with breakdown rate about 1.2%,then it is one high efficiency
and low energy consumption blasting media.
Its white color and solid round shape makes it no damage and surface contamination.
Low Breakdown Rate and Consistent Blasting Effect
Also due to the low breakdown rate,people do not need to refuel the beads frequently,then the beads in the
blasting equipment will maintain the almost quantity and same shape,then it will achieve the high consistent
blasting effect.
Clean and Environmental Friendly
Ceramic beads is also an clean and friendly blasting media,there is no dust and hidden dangers of silicosis
to the worker’s body.
Superior Smoothness
Compared with steel beads, ceramic beads has superior smoothness,it can be used in peening applications
in the place of steel shots where ferrous contamination is not acceptable.
5. Why Choose Zirnano Ceramic Beads?
Higher clearliness
Our ceramic bead are screened more than six times and blow-cleaning under high temperature,
which provides higher clearliness and ensures it to be work normally in humid weather;
More concentrated particle size distribution
B400(0.030-0.063μm) is more concentrated than the other one(0-0.063μm) from other company,which will
achieve better blasting effect.
Multiple Authentication
Certificated by ISO9001 ISO14001,SGS,ROHS
Stable supplier of Foxconn,Ujiden,Samsung Electronics,Tongda Group etc
Products in good quality & stable performance,competitive price,flexible payment terms.
6. Main Application of Ceramic Bead Blasting Media
Surface Finish for the metal surface,middle frame, built-in parts of 3C products(computer, communication,
Consumer Electronics) to achieve the different reflection and matte effect;
Sandblasting for hardware parts and precision machinery such as mechanical gears to improve lubrication
conditions and reduce the noise.
Molds cleaning to remove the oil stains in the surface of glass molds, automotive molds,plastics molds,
tire molds,dies etc.
Surface cleaning for Metal pipes such as copper pipes and steel pipes to clean its inner and outer walls;
Furniture industry sandblasting for aluminium alloy doors,windows and the metal handle etc.
Sandblasting for golf head and golf club etc.
Surface finish for delicate parts such as the medical instrument and make small rounded conners at the
junction of two surfaces,enhance the smoothness and texture.
Shot peening for aviation& aerospace and shipbuilding,automotive industry such as springs,gears and
other components.
