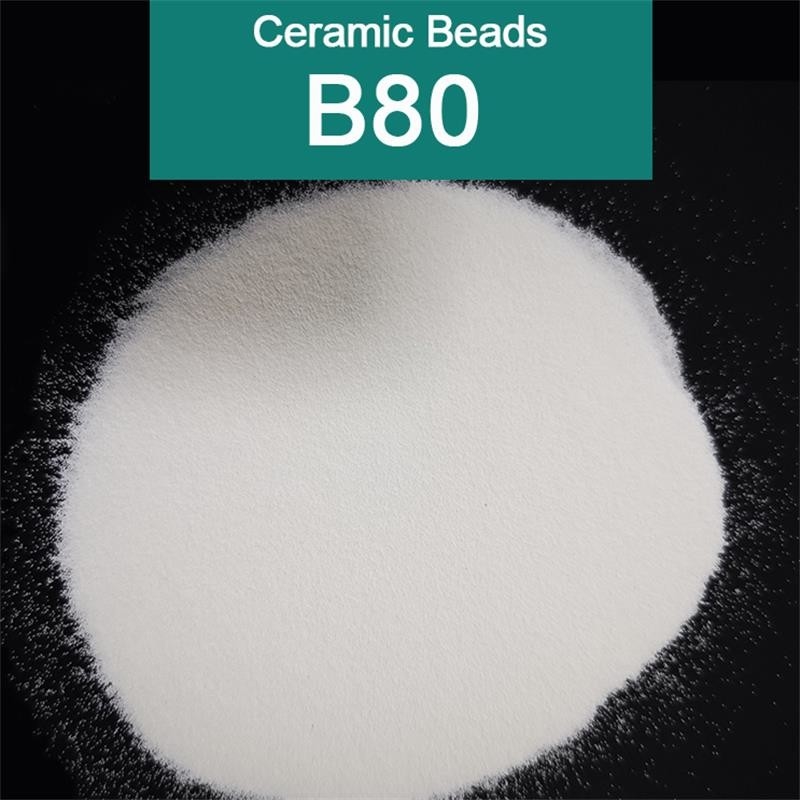

B80 Zirconia Ceramic Bead Blasting Abrasive 0.180 - 0.250mm

Minimum Order Quantity : 100KGS Price : Negotiation
Packaging Details : 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet Delivery Time : 5-10 days
Supply Ability : 1500mt per year
Place of Origin: z, China Brand Name: ZHENGTONG
Certification: ISO9001, ISO14001 Model Number: B80: 0.180-0.250mm

Detail Information

Commodity Name: Zirconia Ceramic Blasting Media Chemical Index: ZrO2 62-66%
Manufacturing Process: Melting In Furnace Bulk Density: 2.3g/cm3
True Density: 3.85g/cm3 Hardness: 700HV
High Light:

Zirconia Ceramic Bead Blasting Abrasiv

,

Ceramic Bead Blasting 0.250mm

,

B80 Zirconia Ceramic Beads

Product Description

Ceramic Abrasive Blasting Media B80 size 0.180-0.250mm for alu profiles blasting



1. What is Ceramic Abrasive Blasting Media



Ceramic abrasive blasting media is ceramic beads, it is a kind of abrasive blasting media, also called zirconia sand.



Ceramic abrasive blasting media is a spherical bead produced by electro-fusion process with dense crystal structure. Its structure is Zirconium crystals in a glassy silicon dioxide cover, which leads the it of high density and high shock resistance, not easy to reform and break, so ensures its surface finishing consistency



Ceramic abrasive blasting media is usually used for sandblasting before anodizing of industrial aluminum profiles.



2. Specification of Ceramic Abrasive Blasting Media



Product Process Specific Density Bulk Density Vickers Hardness
Ceramic beads Electro-fusing 3.85 (g/cm³) 2.3 (g/cm³) 700 HV
Chemical Components ZrO2 62-68% SiO2 25-30% Al2O3 7-13% Other 1% Max.
Size Available
(mm)
Blasting-clean/Surface finish Shot peening
B20: 0.600-0.850mm Z150: 0.150-0.210mm,
B30: 0.425-0.600mm ­­­Z210: 0.210-0.300mm
B40: 0.250-0.425mm Z300: 0.300-0.425mm,
B60: 0.125-0.250mm Z425: 0.425-0.600mm,
B80: 0.180-0.250mm Z600: 0.600-0.850mm
B100: 0.128-0.18mm Z850:0.850-1.180mm
B120: 0.063-0.125mm Other sizes can be customized against customers’ requirement.
B170: 0.045-0.090mm
B205 : 0.000-0.063mm
B400: 0.000-0.063mm





3. Features of Ceramic Abrasive Blasting Media

  • 1. High hardness and small deformation ensures surface consistency.
  • 2. High density and high strength, leads high blasting efficiency
  • 3. Applicable for various materials like stainless steel, aluminum alloys and titanium alloys, etc.
  • 4. Low breaking rate and no dust



4. How does Ceramic Abrasive Blasting Media working









5. Application of Ceramic Abrasive Blasting Media



The industrial aluminum profiles we produce often use a sandblasted oxide finish by ceramic abrasive blasting media.

Sandblasting oxidation is an additional sandblasting step before the anodizing and coloring of the aluminum profile.

Sandblasting is to slowly pass the industrial aluminum profile through the sandblasting machine, and the inside of the sandblasting machine will spray very fine ceramic abrasive blasting media to make even small pits on the surface of the aluminum profile, which looks like a matte effect, which is better than the bright appearance. mild.

At the same time, sandblasting can also remove surface defects such as burrs, scratches, corrosion spots, blisters, pores, etc. on the surface of the workpiece, and further remove the subtle unevenness on the surface of the workpiece, making it have a higher satin luster.

Ceramic abrasive blasting media has different particle sizes, the larger the number, the finer the ceramic beads, and the smaller the surface roughness of the sandblasting.



After ceramic abrasive blasting media can:

Provide good surface conditions and improve the quality of surface finishing;

Obtain a clean surface;

Reduce the impact of welding;

Produce decorative effects;

Improve product quality;



Besides pre-treatment of blasting before anodizing of industrial aluminum profiles, it has other applications as below:

  • Mobile phone and computer metal frame sandblasting
  • Full range of metal inserts and external parts blasted
  • Golf head surface treatment
  • Sandblasting inside and outside the steel pipe
  • Glass mold, tire mold blast cleaning
  • Shot peening ferrous and non ferrous items including aircraft engine blades, blisks, turbines etc.
