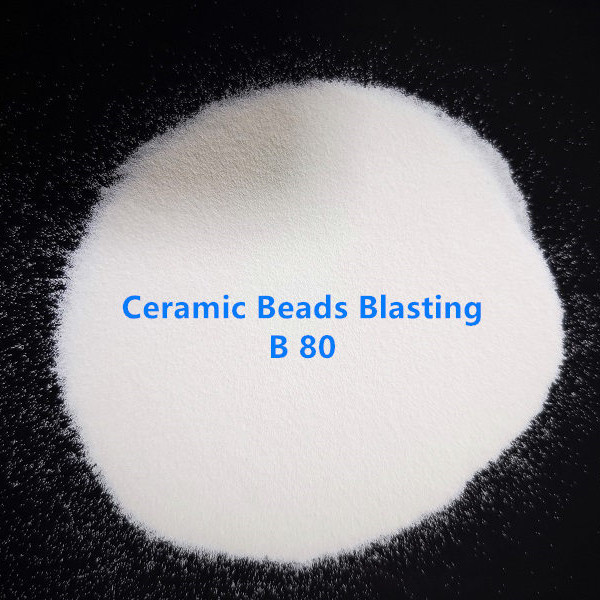

B80 Ceramic Beads Blasting Abrasive 0.212mm For Steel Dry Wet Air Blast

Minimum Order Quantity : Negotiable Price : Negotiable

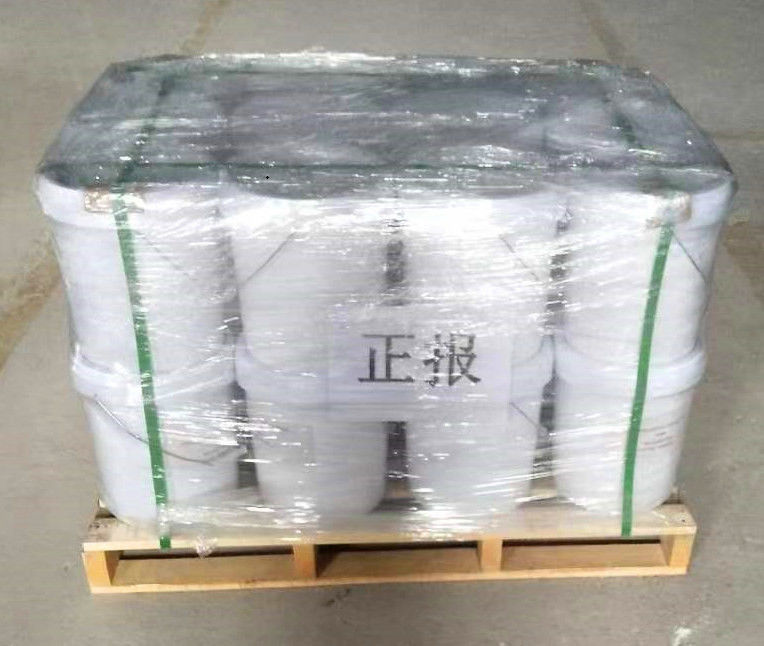

Packaging Details : 25kgs Barrels+Pallet Delivery Time : 2-20 days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 200mts per month
Place of Origin: Shanxi,China Brand Name: Zirnano
Certification: ISO9001, IS014001 Model Number: B20-B505

Detail Information

Product Name: Ceramic Bead Blasting Media Main Materials: 60-66% ZrO2
Vicker Hardness: 700HV Bulk Density: 2.3 G/cm3
True Gravity:: 3.85 G/cm3 Application: Blast Cleaning, Surface Preparation, Surface Finishing And Shot Peening
High Light:

B80 Ceramic Beads Blasting

,

0.212 mm Ceramic Beads Blasting

,

Wet Air Blast Ceramic blasting media

Product Description

1. Product Description

Ceramic Beads blasting are produced by fusing high quality zirconium sand under over 2000 temperature and then made into different micro beads through special technology. The main chemical composition of Zirconia Beads is 60-66% ZrO2.

Ceramic bead blasting media are designed for use with a wide range of substrates, including hard steel, stainless steel, titanium, magnesium, brass, copper and plastics.it is also well suited to high-performance applications in wheel and dry/wet air blast equipment.



2. Technical Parameters

Chemical Index

hemical Index Production Process True Density Bulk Density Hardness
Vickers Mohs Rockwell

ZrO2 : 60-66%

SiO2: 25-30%

Al2O3: 7-13%

Smelting 3.85 2.3 700HV 7 60HRC

Ceramic

bead blasting's Size

B20: 0.600-0.850mm B80: 0.125-0.212mm B170: 0.045-0.090mm
B30: 0.425-0.600mm B100: 0.106-0.180mm B205:0.000-0.063mm
B40: 0.250-0.425mm B120: 0.063-0.125mm B400: 0.030-0.063mm
B60: 0.150-0.300mm B150: 0.053-0.106mm B505: 0.010-0.063mm

Special specification can be customized



3. ​Application of Ceramic bead blasting
1)Sand blasting: such as plastic. stainless steel,aluminum alloy, copper and other alloy workpieces;
2)Surface Cleaning and Finishing: such as steel pipe,copper pipe and the internal and external part of other metal materialsl:
3)Shot peening: such ad ship building,automobile,machinery and other metal parts;
4)Grinding dispersion

B80 Ceramic Beads Blasting Abrasive 0.212mm For Steel Dry Wet Air Blast 0



5. Advantages --compared with glass blasting media

1)Reduced beads consumption (30 - 40 times) against glass blasting media;
2)Lower metal surface roughness;
3)Less operating pressure and reduced abrasive velocity needed than glass blasting media;
4)Milk white color, high sphericity and smooth surface;
5)Strong impact resistance and high toughness, but gentle with equipment and tools preserving work parts;
6)No metallic contamination for treated parts;

7)Lower dust production.
