700HV Ceramic Bead Blasting Media Zirconia Sand B80 B100 B120 For Air Compressor

Minimum Order Quantity : 100KGS Price : By negotation
Packaging Details : 25kg barrel+ Pallet or 2*12.5kg barrel+Carton+Pallet Delivery Time : 3-5 days after order confirmed
Payment Terms : L/C, , D/P, T/T, Western Union, MoneyGram,Paypal Supply Ability : 3000 mts per year
Place of Origin: Shanxi Brand Name: Zirnano
Certification: ISO9001,IS014001,ROHS,SGS Model Number: B20-B505

Detail Information

Commodity: Ceramic Beads Blasting Product Name: Ceramic Blasting Media
Usage: Blasting Media Color: White
Material: ZrO2 60-66%,SiO2 25-30%,Al2O3 7-13% Hardness: 700HV
Bulk Density: 2.3g/cm3 True Gravity: 3.85g/cm3
Specification: B20-B505
High Light:

700HV Ceramic Bead Blasting

,

B80 Ceramic Bead Blasting

,

B100 Ceramic Bead Blasting

Product Description

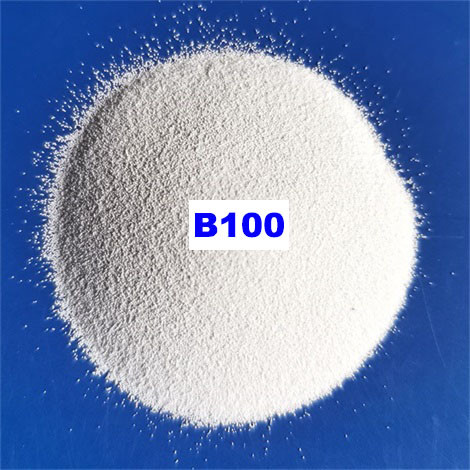

700HV Ceramic Bead Blasting Media Zirconia Sand B80 B100 B120 for Air Compressor



1. Product Description of Ceramic Beads



Ceramic Beads is also called as zirconia sand, it is one clean and high efficiency blasting media,especially

suitable for metal surface finishing.



It selects the high quality zircon sand as main material,then fused in electronic furnace at high temperature

over 2000 degrees,finally made into different size from B20 to B505 by special technology.



Compared with glass beads,the service life of ceramic beads can be prolonged for 25-30 times,there is also

little dust generated in blasting process,so ceramic beads will provide one clean and bright blasting

environment,which can replace glass beads where one clean blasting condition is required.



2. Main Technical Data

Commodity Main Chemical Index Main Physical Index

Ceramic Bead Blasting
ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Al2O3 7-13% Vickers Hardness: 700 kg /mm2
Particle Size
(Ceramic Bead Blasting)
B20: 0.600-0.850mm B120: 0.063-0.125mm
B30: 0.425-0.600mm B150:0.000-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.150-0.300mm B205: 0.000-0.063mm
B80: 0.125-0.212mm B400: 0.030-0.063mm
B100: 0.106-0.180mm B505: 0.010-0.030mm
Remark: Special specification can be customized





3. Main Applications of Ceramic Beads

Pretreatment before electroplating,anodizing,coating to increase the surface roughness;



Surface Finish for metal parts,light alloys,stainless steel parts to restore its metallic luster;



Surface cleaning for various molds such as glass bottle molds,tire molds to remove the oil stains,impurities...



Surface strengthening in aviation and automotive Industry to improve the improve the surface strength and

its fatigue life.



4. Blasting Effects Comparation between glass beads and ceramic beads



Due to the lower breakdown rate and high hardness,ceramic beads will achieve one more consistent and

satin blasting effect;



When blasting stainless steel parts, that parts blasted with ceramic beads are not easy to leave fingerprints

and other stains than the one blasted with glass beads;



700HV Ceramic Bead Blasting Media Zirconia Sand B80 B100 B120 For Air Compressor 0

5. How to judge the quality of ceramic beads?

Seen from the appearance, good ceramic beads have higher sphericity, few strip-shaped beads;



Judge from the gloss under microscope, good ceramic beads have pearl gloss;



Judge from the cleanliness, when pouring the ceramic beads into the water, the water is still very clear for

ceramic beads with high cleanliness;



Judging from the service life, good quality ceramic beads has better hardness and higher wear resistance,

which can be recycled for more times.
