B80 Ceramic Beads Blasting Media For Watch Case And Strap Sandblasting

Minimum Order Quantity : 100KGS Price : Negotiable

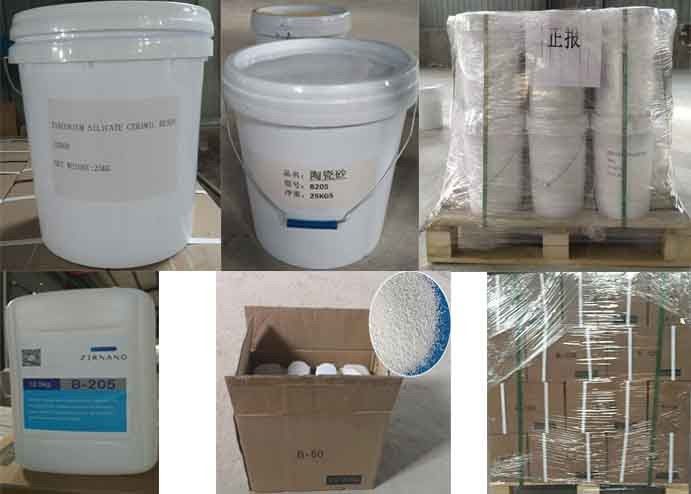

Packaging Details : 2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet Delivery Time : 3-5 days after order confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 200mts per month
Place of Origin: China Brand Name: ZIRNANO
Certification: ISO9001,ISO14001 Model Number: B80: 0.180-0.250MM

Detail Information

Commodity: Ceramic Blasting Beads Product Name: Ceramic Beads Blasting Abrasive
Usage: Surface Finish For Metal Surface Bulk Density: 2.3 G/cm3
True Gravity: 3.85 G/cm3 Vicker Hardness: 700 HV
Main Material: 62-66% ZrO2 Shape: Solid Round Ball
High Light:

B80 Ceramic Beads Blasting Media

,

Watch Case Ceramic Beads Blasting Media

,

Strap Sandblasting Ceramic Beads Blasting Media

Product Description

Ceramic beads blasting media B80 for Watch case and strap sandblasting



1. Description



Ceramic beads blasting media is a new environment friendly sandblasting material, it can be used to replace of glass beads, about 12 times longer working life than glass beads, no dust, no iron pollution, good toughness, good wear resistance and excellent performance in sandblasting finish for metals like alu, alu alloy, Titanium alloy, magnesium alloy, steel, stainless steel etc..

Ceramic beads blasting media can be used for watch cases and belt sandblasting.



2. Specification



Technical Data
Components Content CAS No. EC No.
ZrO2 (Zirconium dioxide) 60-68% 1314-23-4 215-227-2
SiO2 (Silicon dioxide) 25-30 60676-86-0 262-373-8
Al2O3 (Aluminum oxide ) 7-13% 1344-28-1 215-691-6
Manufacturing Method Melting in above 2000℃ furnace
True Density 3.85 g/cm3
Bulk Density 2.3g/cm3
Vicker Hardness 700HV
Sizes for Sand Blasting
Bead Size Size range Bead Size Size range
B20 0.60-0.85 mm B120 0.063-0.125 mm
B30 0.425-0.60 mm B125 0.000-0.125 mm
B40 0.24-0.425 mm B170 0.045-0.090 mm
B60 0.125-0.25 mm B205 0.000-0.063 mm
B80 0.180-0.25 mm B400 0.030-0.063 mm
B100 0.125-0.18 mm B505 0.000-0.030 mm
Sizes for Shot Peening
Z850 0.85-1.18 mm Z210 0.21-0.30 mm
Z600 0.6-0.85 mm Z150 0.15-0.21 mm
Z425 0.425-0.60 mm Z100 0.10-0.15 mm
Z300 0.30-0.425 mm




3. Applications



Ceramic beads blasting media B80 can be used for watch cases and belt sandblasting.

The case of the watch divided by material, mainly including zinc alloy case, copper case, steel case and titanium case.
Ceramic beads is widely used in the sandblasting of watch cases and straps due to its smooth spherical appearance, good elasticity, high toughness and non-breakability. It can obtain a smooth and non-reflective satin texture, which greatly improves the texture of the product. .



B80 Ceramic Beads Blasting Media For Watch Case And Strap Sandblasting 0
The watch case in the above picture is finished with ceramic beads blasting media.
The sandblasted steel case and the sandblasted steel dial have the earthy minerality of the concrete exterior wall.
The one-piece stainless steel strap is also sandblasted, and the texture of the watch is born out of cement and minerals.



4. Applicable Equipment



Automatic sandblasting machineThe case crown can be sandblasted with an automatic sandblasting machine, using ceramic beads B80 as the sandblasting media, and using a multi-aperture swing nozzle to sandblast the case from all angles, so as to achieve no dead angle coverage.

Note: When the crown is sandblasted, the design of the fixture must meet the requirements. It is necessary to ensure that the product will not be blown off during sandblasting, and the root of the crown cannot be sandblasted, because the crown involves waterproof performance!
