Zirconia Sand Ceramic Bead Blasting Media B60 B120 B170 B205 B400 For Magnesium

Minimum Order Quantity : 100KGS Price : By negotation

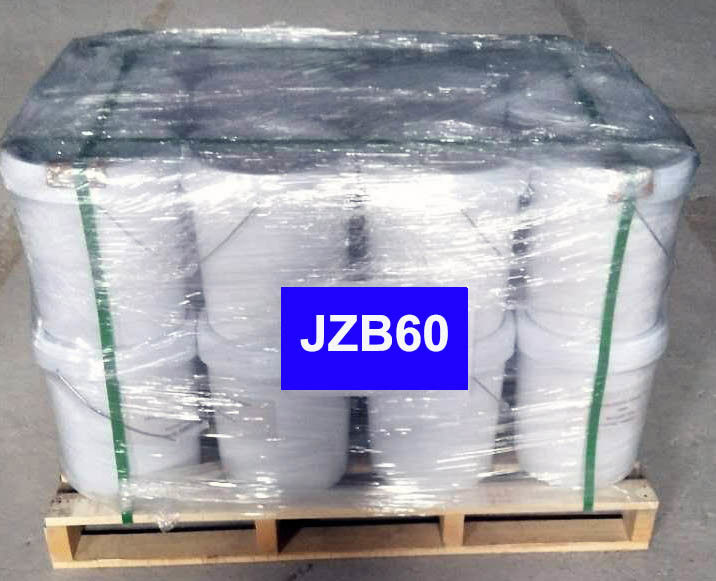

Packaging Details : 25kg barrel+ Pallet or 2*12.5kg barrel+Carton+Pallet Delivery Time : 3-5 days after order confirmed
Payment Terms : L/C, , D/P, T/T, Western Union, MoneyGram,Paypal Supply Ability : 3000 mts per year
Place of Origin: Shanxi Brand Name: Zirnano
Certification: ISO9001,IS014001,ROHS,SGS Model Number: B20-B505

Detail Information

Commodity: Ceramic Blasting Media Product Name: Ceramic Beads,Zirconia Beads
Shape: Round Solid Beads Color: White
Material: ZrO2 60-66%,SiO2 25-30%,Al2O3 7-13% Hardness: 60HRC Min
Bulk Density: 2.3g/cm3 True Gravity: 3.85g/cm3
Size: B20-B505 Free Sample: Available
High Light:

Ceramic Bead Blasting Media

,

Zirconia Sand Ceramic Bead Blasting

,

B60 Ceramic Bead Blasting

Product Description

Zirconia Sand Ceramic Bead Blasting Media B60 B120 B170 B205 B400 for Magnesium and Titanium Alloy



1. Product Description of Ceramic Beads Blasting Media

Ceramic beads selects the high-quality imported zircon sand as main raw material, and made into different

mirco-beads with unique formula and special technology under high temperature over 2000 degrees.



Ceramic beads is especially suitable for surface strengthening in the production and maintenance of metal

parts and light alloy parts, which will achieve more uniform surface finishing effect.



It has good toughness, high hardness , dense crystal structure ,which is not easy to break, can be used

repeatedly, low energy consumption. Compared with glass beads,its service life can be prolonged 25-30

times,it is one clean and high efficient blasting media.



2. Main Technical Data of Ceramic Beads Blasting Media

Commodity Name Chemical Index Physical Index

Ceramic Blasting Beads
ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Vickers Hardness ≥700 HV
Bulk Density≥2.3g/cm3
True Gravity: 3.85g/cm3
Process: Melting
Particle Size
B20: 0.600-0.850mm B120:0.063-0.125mm
B30:0.425-0.600mm B150:0.000-0.125mm
B40:0.250-0.425mm B170:0.045-0.090mm

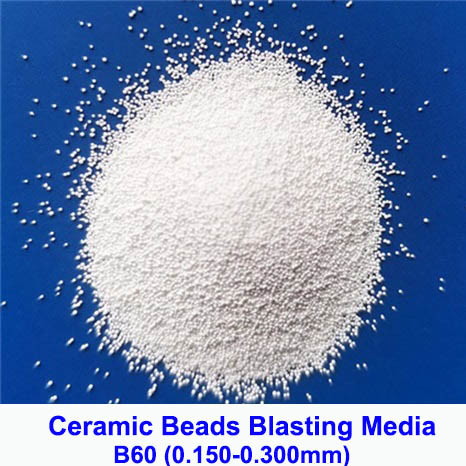

B60:0.150-0.300mm B205:0.000-0.063mm
B80:0.125-0.212mm B400:0.030-0.063mm
B100:0.106-0.180mm B505:0.010-0.030mm
Remark: Special specification can be customized.



3. Main Applications of Ceramic Beads

Surface finish for 3C products,its built-in parts,accessories

Pretreatment before electroplating, spraying, PU, metal spray welding, titanium plating etc to achieve the

purpose of surface cleaning and improving surface adhesion.



Surface cleaning for metal parts such as casting parts, stamping parts, welding parts and heat treatment

parts to remove oxide scale, residue and rust.



Deburring for machined parts and rubber overflow and burr elimination of injection molded parts.





Surface strengthening of aircraft blades, springs and machining tools



Mold cleaning to ensure the accuracy of the mold.



Renovation and cleaning of all moving parts of automobiles, motorcycles, electromechanical equipment, etc.

Zirconia Sand Ceramic Bead Blasting Media B60 B120  B170 B205 B400 For Magnesium 0



4. Why ceramic beads is more popular in blasting applications?



Ceramic beads has high hardness and good elasticity,which can be rebounded in blasting process,there is

no damage to the surface of treated parts and sand blasting equipment;



Ceramic beads has lower breakdown rate, it will reduce the refueling times,then it is easy to achieve uniform

sandblasting effect and reduce sandblasting cost;



In addition, there is little dust generated in whole blasting process, which will provide a cleaner blasting

environment, keep workers away from the hidden danger of silicosis, meanwhile reduce the treatment cost

of solid waste.
