95 Yttrium Stabilized Zirconia Beads Grinding Media 1.8-2.0mm 2.0-2.2mm High Viscosity Slurry

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 25kg barrel+Pallet Delivery Time : 3-5 days after order confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 300mts per year
Place of Origin: China Brand Name: Zirnano
Certification: ISO14001,ISO9001,SGS,ROHS Model Number: 0.1-50mm

Detail Information

Commodity: 95 Yttrium Stabilized Zirconia Beads Product Name: 95 Zirconia Beads
Usage: Grinding Media For High Viscosity Slurry Color: White
Shape: Round Beads Bulk Density: 3.7g/cm3
True Gravity: 6.0g/cm3 Vicker Hardness: 1100HV
Main Chemical: 95% ZrO2
High Light:

95 Yttrium Stabilized Zirconia Beads

,

2.0mm Yttrium Stabilized Zirconia Beads

,

2.2mm Yttrium Stabilized Zirconia Beads

Product Description

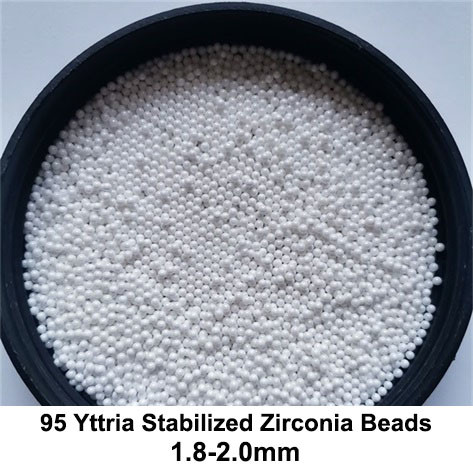

95 Yttrium Stabilized Zirconia Beads Grinding Media 1.8-2.0mm 2.0-2.2mm for High Viscosity Slurry

1. Product Description of  95 Zirconia Beads

95 yttrium stabilized zirconia beads is also called as 95 zirconia beads or TZP(tetragonal zirconia polycrystallite)

zirconia beads.It selects the yttrium oxide as stabilizer and produces through special molding process and

high-temperature baking and phasing process,its strength and hardness are almost unchanged under 600 ℃.



95 zirconia beads has pearl like luster and smooth spherical surface ,mainly used for superfine dispersion

and grinding of various slurry and powder materials that are required to zero contamination by wet and dry

grinding methods.



2. Main Technical Data

Commodity Typical Chemical Index Main Physical Index

95 Zirconia Beads

Grinding Media

ZrO2 ≥95% True Gravity ≥6.0g/cm3
Y2O3 ≥4.5% Bulk Density ≥3.7g/cm3
Others ≤0.5% Vicker Hardness ≥1100 HV
Sintering process compressive strength ≥2.0KN Φ2mm
Wear Rate (g/kg.h) ≤0.01%







Zirconia Beads Specification
Φ0.1-0.2mm Φ0.2-0.3mm Φ0.3-0.4mm Φ0.4-0.6mm
Φ0.6-0.8mm Φ0.8-1.0mm Φ1.0-1.2mm Φ1.2-1.4mm
Φ1.4-1.6mm Φ1.6-1.8mm Φ1.8-2.0mm Φ2.0-2.2mm
Φ2.2-2.4mm Φ2.4-2.6mm Φ2.6-2.8mm Φ2.8-3.0mm
Φ4mm Φ5mm Φ6mm Φ7mm
Φ8mm Φ9mm Φ10mm Φ12mm
Φ15mm Φ17mm Φ20mm Φ25mm
Φ30mm Φ40mm Φ45mm Φ50mm
Special Specification can be customized



3. Main Features of 95 zirconia Beads

High grinding efficiency



The specific gravity of 95 yttrium stabilized TZP zirconia beads is 1.6 times as the one of 65 zirconia beads,

which will achieve higher grinding efficiency under same grinding conditions.



Good fluidity:

95 zirconia beads has good roundness, smooth surface and little damage to the equipment.



High impact resistance and low-wear rate

95 zirconia beads beads has good toughness, it will not be cracked or peeled off in grinding machines with

high-speed and high concentration, its wear rate is only half of that of zirconium silicate beads.



Zero pollution to the grinding materials

There is no pollution to the grinding material, which ensures the purity of the grinding materials



High price/performance ratio

95 zirconia beads will finally reduce the overall grinding cost in abrasion rate, power consumption, labor wage

and equipment loss etc,it is one high efficiency grinding media in the long term.



4. Main Applications of 95 Zirconia Beads

mainly used for ultra-fine grinding and dispersion of high-purity ceramic materials such as electronic ceramics,

magnetic materials, aluminum oxide powder, quartz, zirconium silicate and titanium dioxide, as well as food,

cosmetics, paints, coatings, pigments and inks.

95 Yttrium Stabilized Zirconia Beads Grinding Media 1.8-2.0mm 2.0-2.2mm High Viscosity Slurry 0

5.Applicable equipment:

vertical mixing mill, horizontal rolling ball mill, vibration mill and various high-speed rod pin sand mills
